MIG/MAG 350 E - 0021033561 10 - EU 230V
[0021033561 10]
MIG/MAG 350 E - 0021033561 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG 350 E - 0021033561 10 - EU 230V
Click pentru a mari
MIG/MAG 350 E - 0021033561 10 - EU 230V
Click pentru a mari

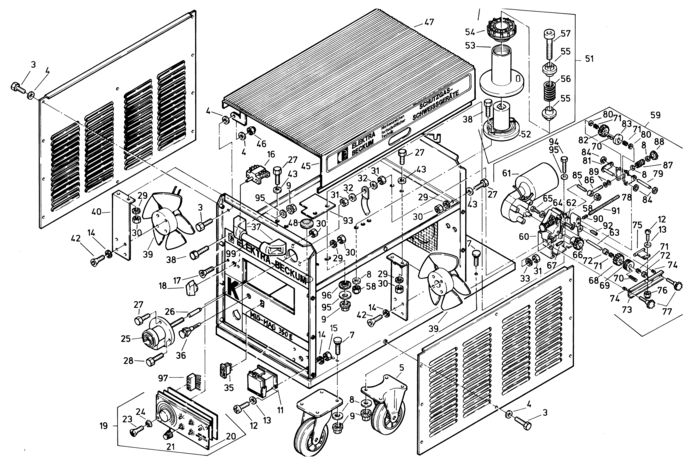

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
4 1 1 Washer (86300016357) 446 RON
5 1 1 RIGID PLATE CASTER RD 200/50 (87271080292) 15993 RON
7 1 1 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
8 1 1 Washer (86300016322) Indisponibil Indisponibil
9 1 1 Flange nut (6209110995) 446 RON
11 1 1 SOCKET CASING BUCHSENEINS. M.SCHR. (88215101330) 54357 RON
12 1 1 Fillister head screw (86123002022) 446 RON
13 1 1 MEDIUM WASHER (86300016330) 446 RON
14 1 1 Serrated lock washer (86304084020) 446 RON
15 1 1 HEXAGON NUT (86200002197) 446 RON
16 1 1 8112101358 - Indisponibil
17 1 1 6131001531 - Indisponibil
18 1 1 SWITCH KNOB G 23 SCHWARZ (88190014909) 1340 RON
19 1 1 8106113212 - Indisponibil
20 1 1 PCB SEAT BL 1,50X147X320 (81322115047) 11519 RON
21 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
23 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X12 VE (86143109095) 446 RON
24 1 1 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
25 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
26 1 1 1327086010 - Indisponibil
27 1 1 Hex head screw (86103015675) 446 RON
28 1 1 Hex head screw (86103001135) 446 RON
29 1 1 Serrated lock washer (86304084047) 446 RON
30 1 1 Hex nut (86200002219) 446 RON
31 1 1 HEXAGON NUT M 10 (86200001395) 446 RON
32 1 1 MEDIUM WASHER A 10,5 (86300034215) 446 RON
33 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
35 1 1 Switch On/Of (88111059692) 3018 RON
36 1 1 8601020182 - Indisponibil
37 1 1 1321115663 - Indisponibil
38 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
39 1 1 AXIAL FAN 1X230V 50-60HZ 0,1A 25W /ET (88041022796) 9821 RON
40 1 1 1322026656 - Indisponibil
42 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
43 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
45 1 1 1002003240 - Indisponibil
46 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
48 1 1 8241070868 - Indisponibil
51 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
52 1 1 1327112950 - Indisponibil
53 1 1 1327112968 - Indisponibil
54 1 1 END CAP SPULENDORN (81327112976) 3018 RON
55 1 1 1327112984 - Indisponibil
56 1 1 1327112992 - Indisponibil
58 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
59 1 1 WIRE FEED UNIT, GEARWHEEL BEIDS. ANDRUC (81002011707) 392698 RON
60 1 1 CASING, WIRE FEED (81320015401) 64311 RON
61 1 1 WIRE FEED MOTOR 24 V MOTORWELLE GEBOHRT (88011092064) 14839 RON
62 1 1 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
63 1 1 PARALLEL PIN, TAPPED BORE 8 h8X60 FORM D (86505002324) 2124 RON
64 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
65 1 1 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
66 1 1 DRIVE COG RD 34X32 MIT NABE (81325000259) 15993 RON
67 1 1 HEX. SOCKET SET SCREW, DOG PT. M 6X10 VE (86163001029) 446 RON
68 1 1 DRIVE CO RD 34X16 OHNE NABE (81321420709) 21361 RON
69 1 1 WIRE FEED ROLLER RD 31,5X10 GEH?RTET (81325000232) 8275 RON
70 1 1 CLAMPING SLEEVE 3X16 (86503001657) 446 RON
71 1 1 NEEDLE BUSHING 0810 (8X10) GEFETTET (87104002352) 1564 RON
72 1 1 SPACER ROLLER RDA 15,5 RDI 8,4X10 (81321004837) 781 RON
73 1 1 AXLE BRACKET BL 2,5X41X144 (81422065993) 4249 RON
74 1 1 SPACER SLEEVE (86442059304) 446 RON
75 1 1 ELECTRODE WIRE GUIDE (81422048924) 8275 RON
76 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
77 1 1 STARKNOB SCREW M 6X20 (DIN 933) VERZINKT (87001124212) 105 RON
78 1 1 ROLLER BRACKET (81320016670) 13756 RON
79 1 1 PARALLEL PIN 8 h8X45 (86500009339) 446 RON
80 1 1 SPACER WASHER RDA15,5XRDI8,4X0,8 (81321004845) 446 RON
81 1 1 TWIST LOCK (81002013424) 5926 RON
82 1 1 DRIVE COG RD 34X16 OHNE NABE (81325009752) 11519 RON
83 1 1 PRESSURE ROLLER RD 31,5X10 GEH?RTET (81325000240) 24046 RON
84 1 1 STARLOCK WITHOUT CAP (87016056183) 446 RON
85 1 1 6168009192 - Indisponibil
86 1 1 6141009328 - Indisponibil
87 1 1 PRESSURE SPRING RD 2,5X12,5X25 4,5 WINDG (87051086532) 446 RON
88 1 1 STARKNOB NUT (87000017730) 781 RON
89 1 1 7632009520 - Indisponibil
90 1 1 CLAMPING SLEEVE 6X12 (86503088175) 446 RON
91 1 1 STEEL LINER 1,0-1,2 50 M ENDLOS (81327071129) 1564 RON
92 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X6 (86161000963) 446 RON
93 1 1 1321004713 - Indisponibil
94 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
95 1 1 Washer (86305002486) 446 RON
96 1 1 1321006457 - Indisponibil
99 1 1 1325117679 - Indisponibil
201 1 1 THERMAL OVERLOAD SWITCH R 20 130 GRAD OH (88102000219) 488 RON
203 1 1 Washer (86305002486) 446 RON
204 1 1 Flange nut (6209110995) 446 RON
205 1 1 TERMINAL BLOCK 16 MM2 NR.135 (88216022190) 781 RON
206 1 1 RECTIFIER STACK DB125/165-300A6 (88053071733) 127394 RON
209 1 1 SPACER TUBE 44 MM (81321006465) 781 RON
210 1 1 1321006457 - Indisponibil
211 1 1 INSULATING WASHER (81321006635) 446 RON
212 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
213 1 1 Washer (86300016322) Indisponibil Indisponibil
214 1 1 6103001380 - Indisponibil
215 1 1 WASHER A 10,5 (86305002095) 781 RON
216 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
217 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
218 1 1 HEXAGON HEAD SCREW M 8X30 VERZ. (86103031271) 446 RON
225 1 1 Hex head screw (86103015675) 446 RON
226 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
227 1 1 Serrated lock washer (86304084047) 446 RON
228 1 1 Hex nut (86200002219) 446 RON
229 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
232 1 1 MEDIUM WASHER (86300016349) 446 RON
233 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
234 1 1 HEXAGON HEAD SCREW M 10X16 (86103001321) 105 RON
235 1 1 Serrated lock washer (86304001745) 446 RON
236 1 1 CONTACTOR 220 V A 16-30-10 (88104042873) 59166 RON
237 1 1 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
238 1 1 MEDIUM WASHER (86300016330) 446 RON
239 1 1 Serrated lock washer (86304084020) 446 RON
240 1 1 HEXAGON NUT (86200002197) 446 RON
241 1 1 6120000126 - Indisponibil
242 1 1 PILOT TRANSFORMER 380 V ZAHNRADVORSCHUB (81002007394) 127394 RON
243 1 1 8216022182 - Indisponibil
244 1 1 86172075604 - Indisponibil
245 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
246 1 1 SOLENOID VALVE 230/1/50 P=6BAR 2X1/8"IG (88052008264) 19236 RON
247 1 1 7805009106 - Indisponibil
248 1 1 PLASTIC HOSE RD 6X1 KLAR (87851078317) 781 RON
249 1 1 HOSE CLAMP S 8/7 - ZY (87811053230) 1564 RON
250 1 1 CABLE, RUBBER JACKET,WITH PLUG 4GX2,50X4 (81002004077) 2848 RON
252 1 1 8215014410 - Indisponibil
253 1 1 STRAIN RELIEF ZEV 12-14 / PG 13.5 (88240015103) 3018 RON
254 1 1 7850012088 - Indisponibil
255 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
257 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
258 1 1 READY-MADE LEAD BLACK 1,5X450 (ALT 410) (88421076058) 781 RON
