Top » Piese de schimb » PIESE METABO » 0021032611 10

MIG/MAG 261 E - 0021032611 10 - EU 230V
[0021032611 10]
MIG/MAG 261 E - 0021032611 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG 261 E - 0021032611 10 - EU 230V
Click pentru a mari
MIG/MAG 261 E - 0021032611 10 - EU 230V
Click pentru a mari

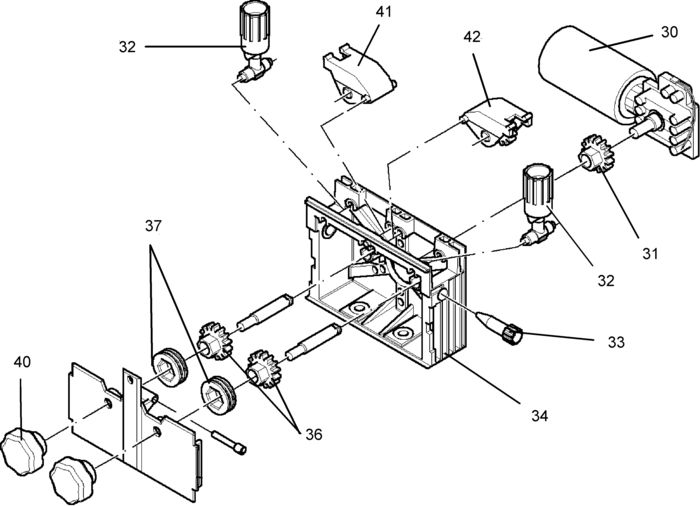

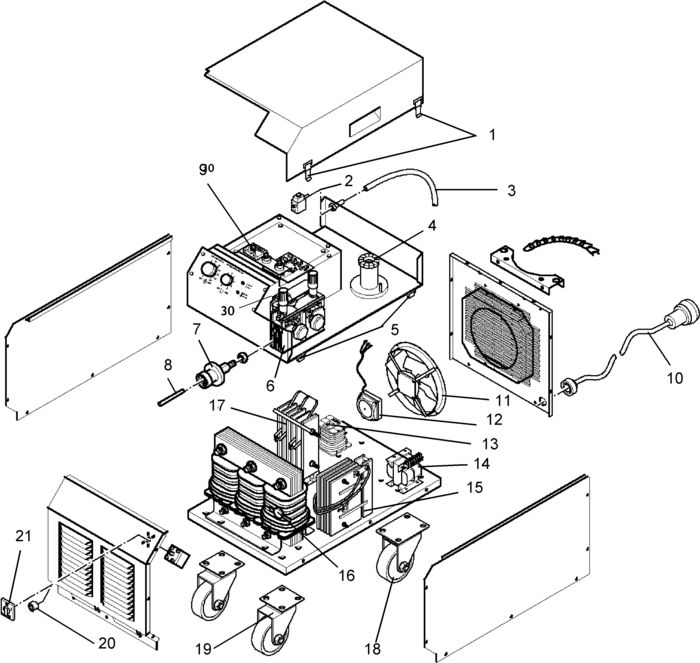

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TOGGLE-TYPE FASTENER (87014126087) 2459 RON
2 1 1 SOLENOID VALVE 24/1/50 P=13BAR 2X1/8"IG (88052153396) 19236 RON
3 1 1 7850012088 - Indisponibil
4 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
5 1 1 COUNTER HOOK (87014126095) 781 RON
7 1 1 1327133868 - Indisponibil
8 1 1 CAPILLARY TUBE 5X124 2,0 (81327175129) 3018 RON
9 1 1 CONTROL UNIT ASSEMBLY MIT STEUERPLATINE (81002193732) 171574 RON
11 1 1 IMPELLER RD 230 MM F?RDERRICHTG. V (81327621714) 5479 RON
12 1 1 FAN MOTOR 10W / 230V / 50HZ (88041621738) 41718 RON
13 1 1 8106623202 - Indisponibil
14 1 1 PILOT TRANSFORMER 380 V (81002003364) 49212 RON
15 1 1 8106194409 - Indisponibil
16 1 1 THERMAL OVERLOAD SWITCH R 20 130 GRAD OH (88102000219) 488 RON
17 1 1 RECTIFIER STACK PTS 36/6/25 (88053193596) 93951 RON
18 1 1 RIGID PLATE CASTER RD 125 TYP:3478 PVR 1 (87271621510) 10288 RON
19 1 1 SWIVEL PLATE CASTER RD 125 (87271621501) 18341 RON
20 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
21 1 1 8112139207 - Indisponibil
30 1 1 WIRE FEED MOTOR 24 V (88011177124) 64311 RON
31 1 1 GEARWHEEL RD 34/16X18 Z=15 MIT NUT (81325609610) 2459 RON
32 1 1 PRESSURE ADJUSTER ASSEMBLY ET (81002624644) 13756 RON
33 1 1 SLEEVE, WIRE LEAD-IN (81321609801) 446 RON
34 1 1 CASING, WIRE FEED 4-ROLLEN ANTRIEB (81321615216) 15993 RON
36 1 1 GEARWHEEL RD 25/16X18 Z=15 OHNE NUT (81321609844) 781 RON
37 1 1 1325622357 - Indisponibil
40 1 1 STARKNOB NUT M 6 (DIN 934) VERZINKT (87000025466) 781 RON
41 1 1 LEVER, PRESSURE ADJUSTER ET (81002638190) 19236 RON
42 1 1 LEVER, PRESSURE ADJUSTER ET (81002638181) 19236 RON
