Top » Piese de schimb » PIESE METABO » 0021026000 10

MIG/MAG 260/60 ET - 0021026000 10 - 3 / 400V/50Hz
[0021026000 10]
MIG/MAG 260/60 ET - 0021026000 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
MIG/MAG 260/60 ET - 0021026000 10 - 3 / 400V/50Hz
Click pentru a mari
MIG/MAG 260/60 ET - 0021026000 10 - 3 / 400V/50Hz
Click pentru a mari
MIG/MAG 260/60 ET - 0021026000 10 - 3 / 400V/50Hz
Click pentru a mari

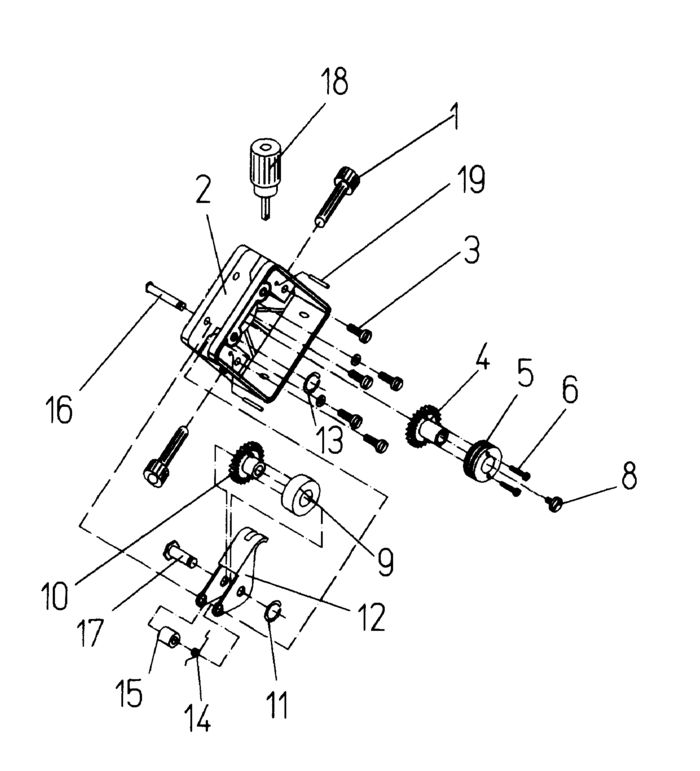

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BUSHING, WIRE GUIDE ET (81321177111) 3018 RON
2 1 1 CASING, WIRE FEED ET (81321177014) 21361 RON
3 1 1 RAISED CHEESE HEAD SCREW M 6X16 VERZ. (86123153659) 446 RON
4 1 1 GEARWHEEL ET (87247176998) 54357 RON
5 1 1 WIRE FEED ROLLER RD 30X12 V-NUT 0,6/0,8 (81325177043) 10288 RON
6 1 1 RAISED CHEESE HEAD SCREW M 3X16 VERZ. (86123094911) 446 RON
8 1 1 Fillister head screw (86123002014) 446 RON
9 1 1 PRESSURE ROLLER ET (81325177027) 11519 RON
10 1 1 GEARWHEEL ET (87247177005) 33553 RON
11 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
12 1 1 BRACKET, PRESSURE ROLLER ET (81322177093) 11519 RON
13 1 1 141180010 - Indisponibil
14 1 1 SPRING ET (87054177067) 5479 RON
15 1 1 SPACER SLEEVE ET (81325177078) 3018 RON
16 1 1 AXLE ET (81325177086) 3018 RON
17 1 1 AXLE ET (81325177051) 955 RON
18 1 1 PRESSURE ADJUSTER MIT SKALA ET (81327177105) 24046 RON
25 1 1 REAR PANEL BD 1,25X416X695 (81322417795) 19236 RON
30 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
31 1 1 Switch On/Of (88112193740) 11519 RON
32 1 1 SWITCH KNOB G 23 SCHWARZ (88190014909) 1340 RON
33 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
34 1 1 POTENTIOMETER ET (88114622592) 4249 RON
35 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
36 1 1 Hex head screw (86103001135) 446 RON
37 1 1 Serrated lock washer (86304084047) 446 RON
38 1 1 Hex nut (86200002219) 446 RON
39 1 1 SOLENOID VALVE 230/1/50 P=0,1+13BAR 2XT (88052193045) 15993 RON
40 1 1 PILOT TRANSFORMER 380 V (81002003364) 49212 RON
41 1 1 TRANSFORMER BRACKET, INSUL. 21X20X105 KL (81371085153) 781 RON
43 1 1 WIRE FEED DRIVE II 2-ROLLEN ANTRIEB (81002611364) 88582 RON
45 1 1 SWIVEL PLATE CASTER RD 75 (87271611042) 8275 RON
46 1 1 Hex head screw (86103015675) 446 RON
47 1 1 HEXAGON THIN NUT (86205028046) 446 RON
48 1 1 Flange nut (86209114230) 446 RON
49 1 1 WHEEL, SOLID RUBBER RD 200/50 NABE 20X58 (87270026596) 5926 RON
50 1 1 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
52 1 1 81002615661 - Indisponibil
53 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
55 1 1 Flange nut (6209110995) 446 RON
58 1 1 RECTIFIER STACK PTS 36/6/25 (88053193596) 93951 RON
60 1 1 TURBO FAN 1X230 V 50 HZ ET (88041065703) 30980 RON
61 1 1 WIRE FEED MOTOR 24 V (88011177124) 64311 RON
63 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
64 1 1 1327112950 - Indisponibil
65 1 1 1327112968 - Indisponibil
66 1 1 END CAP SPULENDORN (81327112976) 3018 RON
67 1 1 1327112984 - Indisponibil
68 1 1 1327112992 - Indisponibil
71 1 1 KNOTTED LINK CHAIN 680 MM VERZINKT (87236070870) 1340 RON
72 1 1 CLAMPING PAD RD 35X14 (87057400867) 1340 RON
73 1 1 RUBBER FOOT 20,6X20,6X7,6 SCHWARZ (87057128113) 781 RON
74 1 1 BRAIDED PRESSURE HOSE RD 6X1500 (87850081152) 1564 RON
75 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
76 1 1 CONTROL UNIT ASSEMBLY MIT STEUERPLATINE (81002193732) 171574 RON
77 1 1 1321155673 - Indisponibil
78 1 1 8402193701 - Indisponibil
80 1 1 PLUG 16 A CEE (88215068120) 5479 RON
82 1 1 HANDLE ASSEMBLY (81321419484) 5926 RON
83 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
85 1 1 RUBBER MAT, GROOVED 3X300X354 SELBSTKLEB (87059193141) 488 RON
90 1 1 HINGE (81321193087) 2124 RON
91 1 1 LATCH, SPRING-LOADED 57X47 (SERIE 50) F. (81321193079) 7157 RON
92 1 1 0902005285 - Indisponibil
95 1 1 EARTH CABLE WITH CLAMP 25 MM2 X3000 300 (81002005022) 34448 RON
96 1 1 EARTH CLAMP 200-300A/ M 8 MESSINGBAND (81327033219) 7157 RON
97 1 1 CABLE PLUG 50 MM2 (88215037895) 5926 RON
98 1 1 1324038163 - Indisponibil
99 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
100 1 1 6144192727 - Indisponibil
101 1 1 FINE-WIRE FUSE 5X20 / 2 A (88260106814) 105 RON
102 1 1 FINE-WIRE FUSE 5X20 / 10 A ET (88260170725) 105 RON
104 1 1 1002622366 - Indisponibil
105 1 1 8106193658 - Indisponibil
107 1 1 THERMAL OVERLOAD SWITCH R 20 118 GRAD OH (88100093260) 488 RON
108 1 1 8106194409 - Indisponibil
109 1 1 SETTING KNOB, POTENTIOMETER RD 31 MIT MA (88190181210) 8275 RON

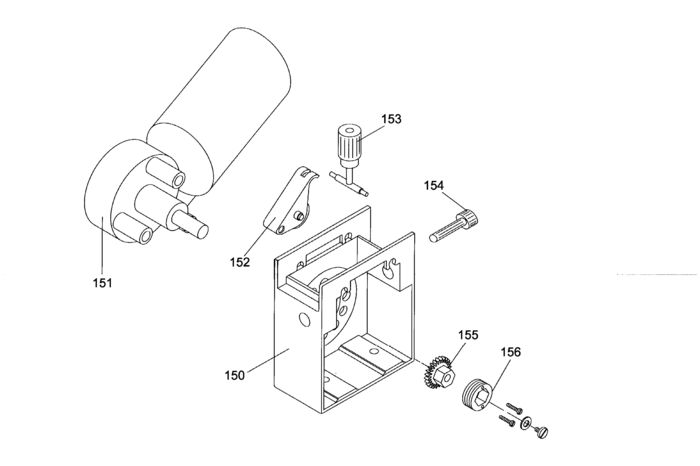

150 1 1 WIRE FEED HOUSING 2-ROLLEN ANTRIEB (81321609780) 3018 RON
151 1 1 WIRE FEED MOTOR 24 V (88011177124) 64311 RON
152 1 1 LEVER, PRESSURE ADJUSTER ET (81002624652) 11519 RON
153 1 1 PRESSURE ADJUSTER ASSEMBLY ET (81002624644) 13756 RON
154 1 1 SLEEVE, WIRE LEAD-IN (81321609801) 446 RON
155 1 1 GEARWHEEL RD 34/16X18 Z=15 MIT NUT (81325609610) 2459 RON
156 1 1 1325609598 - Indisponibil
