Top » Piese de schimb » PIESE METABO » 0021032379 10

MIG/MAG 230 E - 0021032379 10 - EU 230V
[0021032379 10]
MIG/MAG 230 E - 0021032379 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG 230 E - 0021032379 10 - EU 230V
Click pentru a mari
MIG/MAG 230 E - 0021032379 10 - EU 230V
Click pentru a mari

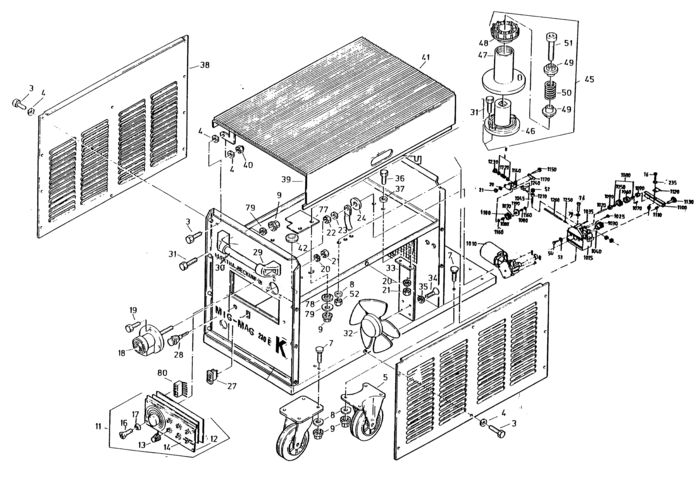

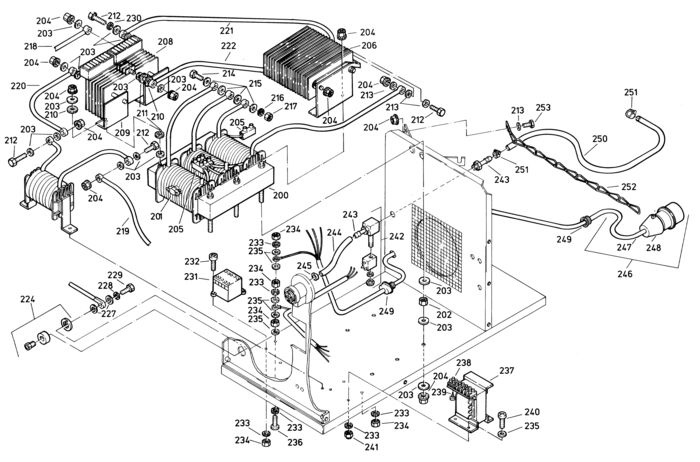

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
4 1 1 Washer (86300016357) 446 RON
5 1 1 RIGID PLATE CASTER RD 200/50 (87271080292) 15993 RON
7 1 1 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
8 1 1 Washer (86300016322) Indisponibil Indisponibil
9 1 1 Flange nut (6209110995) 446 RON
11 1 1 8106121134 - Indisponibil
12 1 1 PCB SEAT BL 1,50X147X320 (81322115047) 11519 RON
13 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
14 1 1 PCB FRONT PANEL MIG/MAG 230 E BEDRUCKT (81142137620) 19236 RON
16 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X12 VE (86143109095) 446 RON
17 1 1 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
18 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
19 1 1 Hex head screw (86103001135) 446 RON
20 1 1 Serrated lock washer (86304084047) 446 RON
21 1 1 Hex nut (86200002219) 446 RON
22 1 1 HEXAGON NUT M 10 (86200001395) 446 RON
23 1 1 MEDIUM WASHER A 10,5 (86300034215) 446 RON
24 1 1 WASHER A 10,5 (86305002095) 781 RON
27 1 1 Switch On/Of (88111059692) 3018 RON
28 1 1 CONTROL LIGHT 380 V GELB (88601121000) 4249 RON
29 1 1 1321115663 - Indisponibil
30 1 1 1325117679 - Indisponibil
31 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
32 1 1 AXIAL FAN 1X230V 50-60HZ 0,1A 25W /ET (88041022796) 9821 RON
33 1 1 1322026656 - Indisponibil
34 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
35 1 1 Serrated lock washer (86304084020) 446 RON
36 1 1 Hex head screw (86103001127) 446 RON
37 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
39 1 1 1002003240 - Indisponibil
40 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
42 1 1 8241070868 - Indisponibil
45 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
46 1 1 1327112950 - Indisponibil
47 1 1 1327112968 - Indisponibil
48 1 1 END CAP SPULENDORN (81327112976) 3018 RON
49 1 1 1327112984 - Indisponibil
50 1 1 1327112992 - Indisponibil
52 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
53 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
54 1 1 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
76 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
77 1 1 1321004713 - Indisponibil
78 1 1 1321006457 - Indisponibil
79 1 1 Washer (86305002486) 446 RON
200 1 1 MAIN TRANSFORMER (81002017713) 392698 RON
201 1 1 THERMAL OVERLOAD SWITCH R 20 130 GRAD OH (88102000219) 488 RON
202 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
203 1 1 Washer (86305002486) 446 RON
204 1 1 Flange nut (6209110995) 446 RON
205 1 1 TERMINAL BLOCK 6 MM2 VDE 5VD4 304 /NR.16 (88216103921) 781 RON
206 1 1 RECTIFIER STACK DB125/165-280A2 (88053071725) 93951 RON
208 1 1 8106111651 - Indisponibil
209 1 1 1322116388 - Indisponibil
210 1 1 1321006457 - Indisponibil
211 1 1 INSULATING WASHER (81321006635) 446 RON
212 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
213 1 1 Washer (86300016322) Indisponibil Indisponibil
214 1 1 6103001380 - Indisponibil
215 1 1 WASHER A 10,5 (86305002095) 781 RON
216 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
217 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
224 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
227 1 1 MEDIUM WASHER (86300016349) 446 RON
228 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
229 1 1 HEXAGON HEAD SCREW M 10X16 (86103001321) 105 RON
230 1 1 Serrated lock washer (86304001745) 446 RON
231 1 1 CONTACTOR 230 V A 9-30-10 (88104038140) Indisponibil Indisponibil
232 1 1 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
233 1 1 Serrated lock washer (86304084020) 446 RON
234 1 1 HEXAGON NUT (86200002197) 446 RON
235 1 1 MEDIUM WASHER (86300016330) 446 RON
236 1 1 6120000126 - Indisponibil
237 1 1 PILOT TRANSFORMER 380 V ZAHNRADVORSCHUB (81002007394) 127394 RON
238 1 1 TERMINAL BLOCK 6 MM2 VDE 5VD4 304 /NR.16 (88216103921) 781 RON
239 1 1 86172075604 - Indisponibil
240 1 1 Fillister head screw (86123002022) 446 RON
241 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
242 1 1 SOLENOID VALVE 230/1/50 P=6BAR 2X1/8"IG (88052008264) 19236 RON
243 1 1 7805009106 - Indisponibil
244 1 1 PLASTIC HOSE RD 6X1 KLAR (87851078317) 781 RON
247 1 1 CABLE, RUBBER JACKET ENDLOS (88403074498) 4249 RON
248 1 1 PLUG 16 A CEE (88215068120) 5479 RON
249 1 1 STRAIN RELIEF ZEV 9-12/PG 11 (88240015090) 1340 RON
250 1 1 7850012088 - Indisponibil
251 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
252 1 1 KNOTTED LINK CHAIN 680 MM VERZINKT (87236070870) 1340 RON
253 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
1010 1 1 WIRE FEED MOTOR 24 V MOTORWELLE GEBOHRT (88011092064) 14839 RON
1015 1 1 CASING, WIRE FEED (81320015401) 64311 RON
1020 1 1 PARALLEL PIN, TAPPED BORE 8 h8X60 FORM D (86505002324) 2124 RON
1025 1 1 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
1030 1 1 DRIVE COG RD 34X32 MIT NABE (81325000259) 15993 RON
1035 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X6 (86161000963) 446 RON
1040 1 1 HEX. SOCKET SET SCREW, DOG PT. M 6X10 VE (86163001029) 446 RON
1045 1 1 6168009192 - Indisponibil
1050 1 1 DRIVE CO RD 34X16 OHNE NABE (81321420709) 21361 RON
1060 1 1 WIRE FEED ROLLER RD 31,5X10 GEH?RTET (81325000232) 8275 RON
1070 1 1 CLAMPING SLEEVE 3X16 (86503001657) 446 RON
1080 1 1 NEEDLE BUSHING 0810 (8X10) GEFETTET (87104002352) 1564 RON
1090 1 1 SPACER ROLLER RDA 15,5 RDI 8,4X10 (81321004837) 781 RON
1100 1 1 AXLE BRACKET BL 2,5X41X144 (81422065993) 4249 RON
1110 1 1 SPACER SLEEVE (86442059304) 446 RON
1120 1 1 ELECTRODE WIRE GUIDE (81422048924) 8275 RON
1130 1 1 STARKNOB SCREW M 6X20 (DIN 933) VERZINKT (87001124212) 105 RON
1140 1 1 ROLLER BRACKET (81320016670) 13756 RON
1150 1 1 HEXAGON FIT BOLT SW 13X53,3 (81425408891) 3689 RON
1160 1 1 SPACER WASHER RDA15,5XRDI8,4X0,8 (81321004845) 446 RON
1170 1 1 TWIST LOCK (81002013424) 5926 RON
1180 1 1 DRIVE COG RD 34X16 OHNE NABE (81325009752) 11519 RON
1190 1 1 PRESSURE ROLLER RD 31,5X10 GEH?RTET (81325000240) 24046 RON
1210 1 1 6141009328 - Indisponibil
1220 1 1 PRESSURE SPRING RD 2,5X12,5X25 4,5 WINDG (87051086532) 446 RON
1230 1 1 STARKNOB NUT (87000017730) 781 RON
1240 1 1 7632009520 - Indisponibil
1250 1 1 CLAMPING SLEEVE 6X12 (86503088175) 446 RON
1260 1 1 STEEL LINER 1,0-1,2 50 M ENDLOS (81327071129) 1564 RON
7000 1 1 READY-MADE LEAD BLACK 1,5X450 (ALT 410) (88421076058) 781 RON
7003 1 1 READY-MADE LEAD BLACK 1,5X1000 (ALT 950) (88421031453) 781 RON
7004 1 1 8421105805 - Indisponibil
