MIG/MAG 170/30 XTC - 0021031900 12 - EU 230V
[0021031900 12]
MIG/MAG 170/30 XTC - 0021031900 12 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG 170/30 XTC - 0021031900 12 - EU 230V
Click pentru a mari
MIG/MAG 170/30 XTC - 0021031900 12 - EU 230V
Click pentru a mari

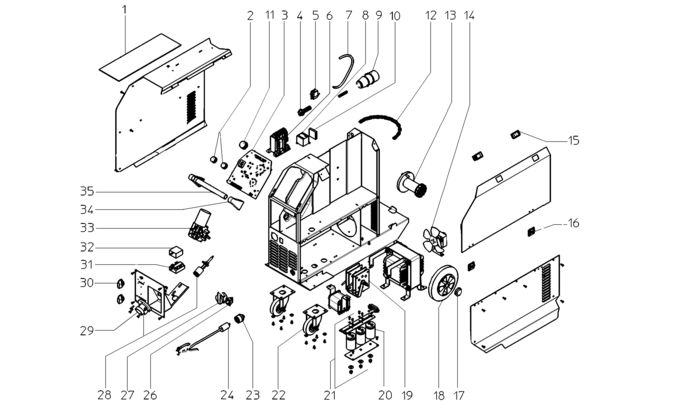

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RUBBER MAT, GROOVED 3X149X470 SELBSTKLEB (87059709032) 4249 RON
2 1 2 SETTING KNOB RD 28 ET (88190716881) 7157 RON
3 1 1 PRINTED CIRCUIT BOARD MIT BLENDE 170/30 (88106715042) 137236 RON
4 1 1 8240123801 - Indisponibil
5 1 1 SOLENOID VALVE 230/1/50 P=0,1+13BAR 2XT (88052193045) 15993 RON
6 1 1 PILOT TRANSFORMER 230V-400V / 9V-28V MIG (81002717022) 49212 RON
7 1 1 BRAIDED PRESSURE HOSE RD 6X1500 (87850081152) 1564 RON
8 1 1 CONTACTOR 230 V A 9-30-10 (88104038140) Indisponibil Indisponibil
9 1 1 CABLE, RUBBER JACKET,WITH PLUG 5GX1,5X50 (88402715317) 19236 RON
10 1 1 POWER SWITCH LIMITER KLIBO 7,50 KW MIG/M (88106720283) Indisponibil Indisponibil
11 1 1 SETTING KNOB RD 36 ET (88190716890) 8275 RON
12 1 1 KNOTTED LINK CHAIN 680 MM VERZINKT (87236070870) 1340 RON
13 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
14 1 1 8041719215 - Indisponibil
15 1 2 LATCH, SPRING-LOADED 57X28 (SERIE 40) F. (87014714663) 4249 RON
16 1 2 BOLT-ON HINGE 40X40 (81321712858) 3018 RON
17 1 2 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
18 1 2 WHEEL, SOLID RUBBER RD 200/50 NABE 20X58 (87270026596) 5926 RON
19 1 1 RECTIFIER STACK B125/110-140 (88053075313) 49212 RON
20 1 3 CAPACITOR 22000uF 50X80 (88050077960) 21361 RON
21 1 1 CAPACITOR BANK 66.000 uF MIG/MAG 150-170 (81002715860) 68673 RON
22 1 2 SWIVEL PLATE CASTER RD 100/35 (87271026921) 7157 RON
23 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
24 1 1 EARTH CABLE WITH CLAMP 25 MM2 X3000 300 (81002005022) 34448 RON

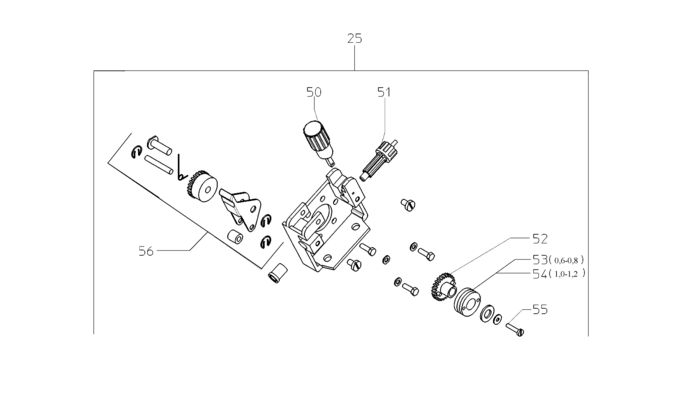

25 1 1 WIRE FEED DRIVE III MIT ROLLE 0,6-0,8 2- (81002655825) 4442 RON
26 1 1 ROCKER SWITCH 0 - I (88111714933) 5926 RON
27 1 1 RECEPTACLE 170/200/250/300 XT (81002715224) 955 RON
28 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
29 1 1 MOUNTING FLANG RD 85 (81327142522) 8275 RON
30 1 2 SWITCH KNOB G 23 SCHWARZ (88190014909) 1340 RON
31 1 1 6-STEP SWITCH 1-POLIG 3061/2 O. 6-CH/115 (88115071336) 11519 RON
32 1 1 SELECTOR SWITCH (88112085620) 13756 RON
33 1 1 WIRE FEED MOTOR 24 V (88011177124) 64311 RON
34 1 2 SEMI SHELL, HANDLE MIG/MAG XT(C) (81321712823) 2124 RON
35 1 1 HANDLE BAR RD 25X2,5X213 MIG/MAG 150-170 (81328714996) 3689 RON
50 1 1 PRESSURE ADJUSTER ASSEMBLY ET (81002656775) 8275 RON
51 1 1 WIRE INSERTION ET (81321656796) 2459 RON
52 1 1 7247656906 - Indisponibil
53 1 1 WIRE FEED ROLLER RD 30X12 V-NUT 0,6/0,8 (81325177043) 10288 RON
54 1 1 WIRE FEED ROLLER RD 30X12 V-NUT 1,0/1,2 (81325177035) 11519 RON
56 1 1 LEVER, PRESSURE ADJUSTER ET (81002656767) 2848 RON
