MIG/MAG 160/30 TL SP - 0021031615 10 - EU 230V
[0021031615 10]
MIG/MAG 160/30 TL SP - 0021031615 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG 160/30 TL SP - 0021031615 10 - EU 230V
Click pentru a mari
MIG/MAG 160/30 TL SP - 0021031615 10 - EU 230V
Click pentru a mari

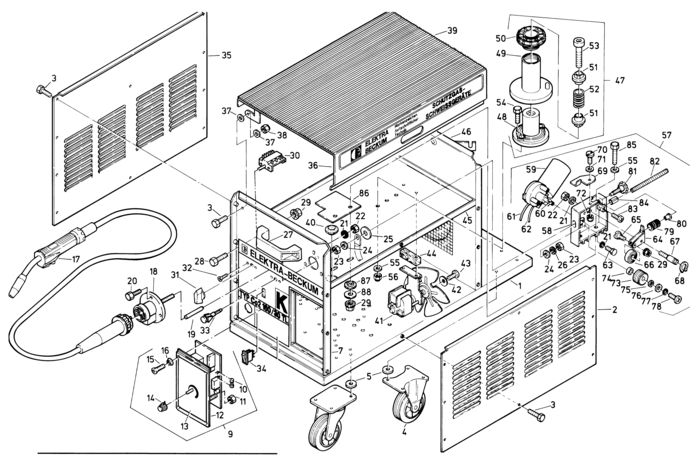

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOTTOM PANEL ASSEMBLY (81002003224) 34448 RON
2 1 1 SIDE PANEL BL 1,5X600X339 KURZ (81322069568) 18341 RON
3 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
4 1 1 7271026930 - Indisponibil
5 1 1 Washer (86305002087) 446 RON
9 1 1 PCB ELECTRONIC MIT FREIBRENNZEIT 1 POTI (88106600695) 64311 RON
10 1 1 FINE-WIRE FUSE 5X20 / 2 A (88260106814) 105 RON
11 1 1 HEXAGON NUT (86200002197) 446 RON
12 1 1 PCB SEAT BL 1,5X130X200 (81322068839) 4249 RON
13 1 1 ADHESIVE LABEL SILVER/BLACK 129X191 170/ (81141081086) 2459 RON
14 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
15 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X12 VE (86143109095) 446 RON
16 1 1 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
17 1 1 0902009914 - Indisponibil
18 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
19 1 1 CAPILLARY TUBE 5X124 1,0 (81327114766) 3018 RON
20 1 1 Hex head screw (86103001135) 446 RON
21 1 1 Serrated lock washer (86304084047) 446 RON
22 1 1 Hex nut (86200002219) 446 RON
23 1 1 HEXAGON NUT M 10 (86200001395) 446 RON
24 1 1 MEDIUM WASHER A 10,5 (86300034215) 446 RON
25 1 1 WASHER A 10,5 (86305002095) 781 RON
26 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
27 1 1 HANDLE "B" (81321070619) 3018 RON
28 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
29 1 1 Flange nut (6209110995) 446 RON
30 1 1 6-STEP SWITCH 1-POLIG 3061/2 O. 6-CH/115 (88115071336) 11519 RON
31 1 1 SWITCH KNOB G 23 SCHWARZ (88190014909) 1340 RON
32 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
33 1 1 CONTROL LIGHT 380 V WEI? (88601121019) 4249 RON
34 1 1 Switch On/Of (88111059692) 3018 RON
35 1 1 SIDE PANEL BL 1,5X600X439 LANG (81322069550) 19236 RON
37 1 1 Washer (86300016357) 446 RON
38 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
39 1 1 RUBBER MAT, GROOVED 3X370X595 SELBSTKLEB (87059043794) 8275 RON
40 1 1 8241070868 - Indisponibil
41 1 1 TURBO FAN 1X230 V 50 HZ ET (88041065703) 30980 RON
42 1 1 MEDIUM WASHER (86300016330) 446 RON
43 1 1 Fillister head screw (86123002022) 446 RON
44 1 1 SPACER BLOCK 70X22X14 (81321068738) 105 RON
47 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
48 1 1 1327112950 - Indisponibil
49 1 1 1327112968 - Indisponibil
50 1 1 END CAP SPULENDORN (81327112976) 3018 RON
51 1 1 1327112984 - Indisponibil
52 1 1 1327112992 - Indisponibil
54 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
55 1 1 Washer (86300016322) Indisponibil Indisponibil
56 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
57 1 1 WIRE FEED UNIT, PRE-ASSEMBLED ROLLE RD 3 (81002130056) 9821 RON
58 1 1 CASING, WIRE FEED (81320085213) 955 RON
59 1 1 8011130047 - Indisponibil
60 1 1 WOODRUFF KEY (86720083831) 446 RON
63 1 1 Hex head screw (86103001127) 446 RON
64 1 1 BRACKET, PRESSURE ROLLER BL 2,00X91X49 (81322085814) 781 RON
65 1 1 SLOTTED PAN HEAD SCREW M 8X10 VERZ. (86125085839) 1340 RON
66 1 1 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
67 1 1 AXLE, BRACKET RD 8X33 (81325085858) 781 RON
68 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
69 1 1 LEVER BL 2,00X40X64 (81322085822) 781 RON
70 1 1 6104124192 - Indisponibil
71 1 1 WAVE SPRING WASHER A 8 VERZ. (86302027860) 446 RON
72 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
73 1 1 WIRE FEED ROLLER, HARDENED RD 30X21 NUT (81325154795) 5479 RON
74 1 1 SPACER BUSHING RD 17/10X6 (81325083731) 781 RON
75 1 1 SPACER BUSHING RD 17X3,5 (81325083723) 105 RON
76 1 1 WASHER A 5,3 VERZ. (86305002478) 446 RON
77 1 1 Serrated lock washer (86304084020) 446 RON
78 1 1 Fillister head screw (86123002014) 446 RON
79 1 1 PRESSURE SPRING RD 2,5X12,5X25 4,5 WINDG (87051086532) 446 RON
80 1 1 SPRING GUIDE RD 17X10 (81325085840) 781 RON
81 1 1 STARKNOB SCREW M 10X33 (DIN 561) VERZINK (87001085721) 1564 RON
82 1 1 STEEL LINER 1,0-1,2 50 M ENDLOS (81327071129) 1564 RON
83 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
84 1 1 CLAMPING SLEEVE 6X12 (86503088175) 446 RON
85 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
86 1 1 INSULATING BARRIER 1,5X100X130 (81321068720) 1564 RON
87 1 1 1321006457 - Indisponibil
88 1 1 Washer (86305002486) 446 RON
200 1 1 1002014684 - Indisponibil
201 1 1 Flange nut (6209110995) 446 RON
202 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
203 1 1 Washer (86305002486) 446 RON
204 1 1 RECTIFIER STACK B125/110-140 (88053075313) 49212 RON
207 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
208 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
209 1 1 Washer (86300016322) Indisponibil Indisponibil
210 1 1 CAPACITOR 22000uF 50X80 (88050077960) 21361 RON
211 1 1 1322070663 - Indisponibil
212 1 1 8051128720 - Indisponibil
213 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
214 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
215 1 1 Washer (86300016357) 446 RON
217 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
219 1 1 PANEL SOCKET ASSEMBLY 25 MM2 MIT ISOLIER (88215071309) 3018 RON
220 1 1 1327112933 - Indisponibil
221 1 1 1327112925 - Indisponibil
224 1 1 Serrated lock washer (86304001745) 446 RON
225 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
226 1 1 1327037923 - Indisponibil
227 1 1 WELDING CABLE 16 MM2 SCHWARZ (88406037976) 3689 RON
228 1 1 CABLE PLUG 25 MM2 (88215037887) 3018 RON
229 1 1 CONTACTOR 230 V 40-60 HZ B 6-30-10 (88104073825) 24046 RON
230 1 1 Fillister head screw (86123002022) 446 RON
231 1 1 Serrated lock washer (86304084020) 446 RON
232 1 1 HEXAGON NUT (86200002197) 446 RON
233 1 1 6120000126 - Indisponibil
234 1 1 MEDIUM WASHER (86300016330) 446 RON
235 1 1 SOLENOID VALVE M. ZWISCHENPL. /ET (81002185713) 21361 RON
236 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
237 1 1 PLASTIC HOSE RD 6X1 KLAR (87851078317) 781 RON
238 1 1 HOSE CLAMP S 8/7 - ZY (87811053230) 1564 RON
239 1 1 CABLE, RUBBER JACKET,WITH PLUG A=437.1U (88402094428) 955 RON
240 1 1 PLUG, SCHUKO TYPE 16 A / 220-250 V (B) (88215061699) 8275 RON
241 1 1 CABLE, RUBBER JACKET ENDLOS (88403103978) 2459 RON
242 1 1 8240015081 - Indisponibil
243 1 1 BRAIDED PRESSURE HOSE RD 6X1500 (87850081152) 1564 RON
244 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
245 1 1 0902005285 - Indisponibil
246 1 1 KNOTTED LINK CHAIN 680 MM VERZINKT (87236070870) 1340 RON
247 1 1 TERMINAL BLOCK 6 MM2 VDE 5VD4 304 /NR.16 (88216103921) 781 RON
248 1 1 THERMAL OVERLOAD SWITCH R 20 130 GRAD OH (88102000219) 488 RON
249 1 1 READY-MADE LEAD BROWN 1,5X450 FH F6,3/AH (88421076015) 781 RON
