Top » Piese de schimb » PIESE METABO » 0021031321 10

MIG/MAG 130/20 T - 0021031321 10 - EU 230V
[0021031321 10]
MIG/MAG 130/20 T - 0021031321 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG 130/20 T - 0021031321 10 - EU 230V
Click pentru a mari
MIG/MAG 130/20 T - 0021031321 10 - EU 230V
Click pentru a mari

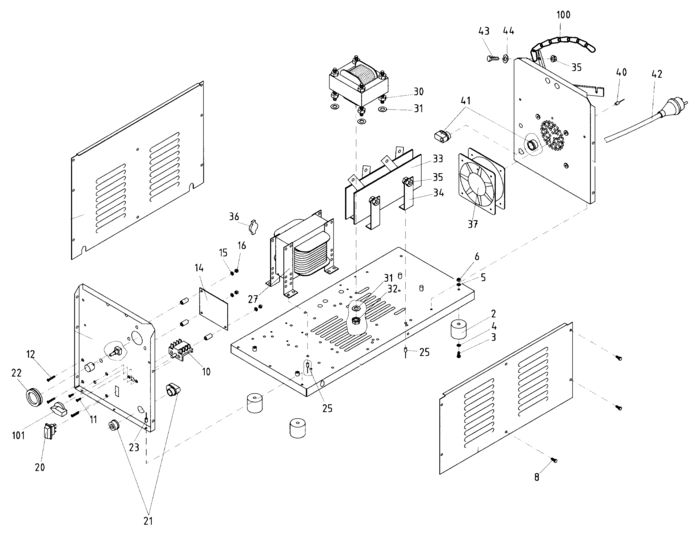

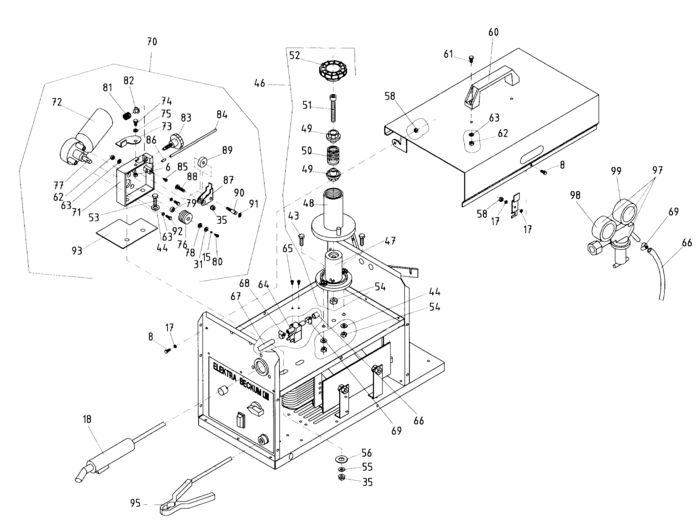

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 RUBBER DOOR STOP RD 40X35 65 SHORE (87056016400) 1564 RON
3 1 1 HEXAGON HEAD SCREW M 6X35 VERZ. (86102082751) 446 RON
4 1 1 Washer (86305002087) 446 RON
5 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
6 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
8 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
10 1 1 4-STEP SWITCH 1-POLIG 4-CH/80 (88115081757) 11519 RON
11 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
12 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X25 VE (86131074008) 446 RON
14 1 1 8106004928 - Indisponibil
15 1 1 Serrated lock washer (86304084020) 446 RON
16 1 1 HEXAGON NUT (86200002197) 446 RON
17 1 1 Washer (86300016357) 446 RON
18 1 1 1324088071 - Indisponibil
20 1 1 Switch On/Of (88111059692) 3018 RON
21 1 1 STRAIN RELIEF ZEV 9-12/PG 11 (88240015090) 1340 RON
22 1 1 GROMMET SG 439 (88241033466) 1340 RON
23 1 1 BLIND RIVET, MUSHROOM HEAD 5X8 F FLACHRU (86621075371) 446 RON
25 1 1 BLIND RIVET, MUSHROOM HEAD (86621010407) 446 RON
27 1 1 1322081916 - Indisponibil
30 1 1 HEXAGON NUT (86200002200) 446 RON
31 1 1 WASHER A 5,3 VERZ. (86305002478) 446 RON
32 1 1 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
33 1 1 RECTIFIER STACK B60/52-44 80 A (88053081216) 26730 RON
34 1 1 1322075258 - Indisponibil
35 1 1 Flange nut (6209110995) 446 RON
36 1 1 THERMOSTAT 130 GRAD 5024 (88102020171) 8275 RON
37 1 1 COOLING FAN ( ROTARI ) (88041003716) 26730 RON
40 1 1 BLIND RIVET, MUSHROOM HEAD (86621010474) 446 RON
41 1 1 8240015081 - Indisponibil
42 1 1 CABLE, RUBBER JACKET,WITH PLUG A=437.1U (88402094428) 955 RON
43 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
44 1 1 Washer (86300016322) Indisponibil Indisponibil
46 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
47 1 1 1327112950 - Indisponibil
48 1 1 1327112968 - Indisponibil
49 1 1 1327112984 - Indisponibil
50 1 1 1327112992 - Indisponibil
52 1 1 END CAP SPULENDORN (81327112976) 3018 RON
53 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
54 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
55 1 1 Washer (86305002486) 446 RON
56 1 1 1321006457 - Indisponibil
58 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
60 1 1 HANDLE (81321081777) 3018 RON
61 1 1 Hex head screw (86103015675) 446 RON
62 1 1 Hex nut (86200002219) 446 RON
63 1 1 Serrated lock washer (86304084047) 446 RON
64 1 1 SOLENOID VALVE M. ZWISCHENPL. /ET (81002185713) 21361 RON
65 1 1 Fillister head screw (86172028215) 446 RON
66 1 1 7850012088 - Indisponibil
67 1 1 PLASTIC HOSE RD 6X1 KLAR (87851078317) 781 RON
68 1 1 HOSE CLAMP S 8/7 - ZY (87811053230) 1564 RON
69 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
70 1 1 WIRE FEED UNIT, PRE-ASSEMBLED ROLLE RD 3 (81002130056) 9821 RON
71 1 1 CASING, WIRE FEED (81320085213) 955 RON
72 1 1 8011185313 - Indisponibil
73 1 1 LEVER BL 2,00X40X64 (81322085822) 781 RON
74 1 1 6104124192 - Indisponibil
75 1 1 WAVE SPRING WASHER A 8 VERZ. (86302027860) 446 RON
76 1 1 WIRE FEED ROLLER, HARDENED RD 30X21 NUT (81325154795) 5479 RON
77 1 1 WOODRUFF KEY (86720083831) 446 RON
78 1 1 SPACER BUSHING RD 17X3,5 (81325083723) 105 RON
79 1 1 SPACER BUSHING RD 17/10X6 (81325083731) 781 RON
80 1 1 Fillister head screw (86123002014) 446 RON
81 1 1 PRESSURE SPRING RD 2,5X12,5X25 4,5 WINDG (87051086532) 446 RON
82 1 1 SPRING GUIDE RD 17X10 (81325085840) 781 RON
83 1 1 STARKNOB SCREW M 10X33 (DIN 561) VERZINK (87001085721) 1564 RON
84 1 1 STEEL LINER 1,0-1,2 50 M ENDLOS (81327071129) 1564 RON
85 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
86 1 1 CLAMPING SLEEVE 6X12 (86503088175) 446 RON
87 1 1 BRACKET, PRESSURE ROLLER BL 2,00X91X49 (81322085814) 781 RON
88 1 1 SLOTTED PAN HEAD SCREW M 8X10 VERZ. (86125085839) 1340 RON
89 1 1 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
90 1 1 AXLE, BRACKET RD 8X33 (81325085858) 781 RON
91 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
92 1 1 Hex head screw (86103001127) 446 RON
93 1 1 INSULATING BARRIER 1,5X100X130 (81321068720) 1564 RON
95 1 1 EARTH CLAMP LEM 120 GRIFF SCHWARZ (81327034533) 3018 RON
97 1 1 0902005285 - Indisponibil
98 1 1 7823070319 - Indisponibil
99 1 1 7823033227 - Indisponibil
100 1 1 KNOTTED LINK CHAIN 680 MM VERZINKT (87236070870) 1340 RON
101 1 1 SWITCH KNOB G 23 SCHWARZ (88190014909) 1340 RON
