Top » Piese de schimb » PIESE METABO » 01225390

MFX 65 - 01225390 - GB 110V
[01225390]
MFX 65 - 01225390 - GB 110V
Click pentru a mari
Imagini suplimentare
MFX 65 - 01225390 - GB 110V
Click pentru a mari

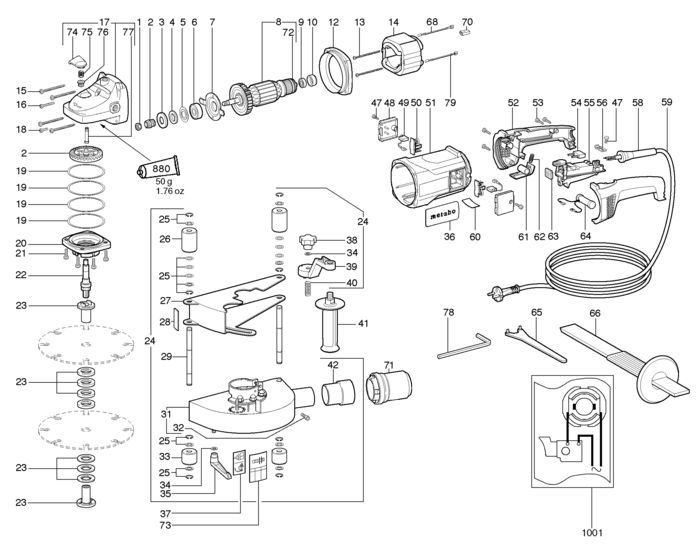

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Self locking nut (341100660) 1340 RON
2 1 1 Bevel gear cod vechi 316025290 Bevel gear (316045530) 24046 RON
3 1 1 Spacer ring (341011510) 2124 RON
4 1 1 Felt ring (143192440) 1340 RON
5 1 1 Cover washer (339070080) 781 RON
6 1 1 Ball bearing, 12x37x12 (143110670) 7157 RON
7 1 1 Bearing cover (339005920) 105 RON
8 1 1 Armature cpl. 120 V (310007480) 54357 RON
9 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
10 1 1 Rubber bearing (344094080) 781 RON
12 1 1 Intermediate flange (343376720) 3018 RON
13 1 2 Self-tap. fill. h. screw (141118970) 446 RON
14 1 1 Field coil (311009580) 24046 RON
15 1 4 Self-tap. fill. h. screw (141118810) 446 RON
16 1 1 Fillister head screw (141122020) 446 RON
17 1 1 Gear housing cpl. (316031720) Indisponibil Indisponibil
18 1 1 Fillister head screw (141119850) 446 RON
19 1 4 Sealing ring (339060140) 781 RON
20 1 1 Gear flange cpl. (316025300) Indisponibil Indisponibil
21 1 4 Fill. head screw(DIN 7985) (141121640) 446 RON
22 1 1 Spindle shaft (341602980) 11519 RON
23 1 1 Clamping set (316028880) 64311 RON
24 1 1 Wheel guard cpl. (316035640) 295725 RON
25 1 1 Set washers for clutch (316029640) 2459 RON
26 1 2 Roller (343374650) 11519 RON
27 1 1 Roller (315415850) 73930 RON
28 1 1 Roller seal (344080550) 446 RON
29 1 2 Roller (341514690) 8275 RON
31 1 1 Covering hood compl (316036210) 14839 RON
32 1 1 Cap screw (141113850) 781 RON
33 1 2 Roller (343374660) 955 RON
34 1 2 Washer (141150800) 446 RON
35 1 1 Clamping lever (341111940) 7157 RON
36 1 1 338115630 - Indisponibil
37 1 1 Indication label (338121250) 446 RON
38 1 1 Roller (341112450) 488 RON
39 1 1 Swivel arm (315414960) 34448 RON
40 1 1 Pressure spring (342002740) 781 RON
41 1 1 Handle cpl. (314000280) 7157 RON
42 1 1 Suction adaptor (343374670) 5926 RON
47 1 3 Screw (341702050) 446 RON
48 1 2 Cover (343376430) 781 RON
49 1 1 Brush holder cpl. (316043570) 7157 RON
50 1 2 Brush guide (343000770) 2459 RON
51 1 1 Motor housing (315012760) 955 RON
52 1 1 Handle (upper+under part) (343368540) 10288 RON
53 1 4 Self-tap. fill. h. screw (141116020) 781 RON
54 1 1 Condenser (343253890) 3689 RON
55 1 1 Switch 120 V (343406210) 11519 RON
56 1 1 Cable clip (339127730) 446 RON
58 1 1 Cable sleeve (344094550) Indisponibil Indisponibil
59 1 1 Cable w.british plug,115 V (344490810) 21361 RON
60 1 1 Rating lable (338047230) 446 RON
61 1 1 Locking lever (343369570) 105 RON
62 1 1 Pressure spring (342002170) 446 RON
63 1 1 399999990 - Indisponibil
64 1 1 399999990 - Indisponibil
65 1 1 Pin spanner (344160840) 2124 RON
66 1 1 Point (344147650) 19236 RON
68 1 1 Strand (344494210) 781 RON
70 1 1 Insulating sleeve (142110090) 446 RON
71 1 1 Extraction adaptor (343376840) 15993 RON
72 1 1 Sealing washer (343370770) 446 RON
73 1 1 Indication label (338114140) 1564 RON
74 1 1 Push button (343376440) 105 RON
75 1 1 Pressure spring (342001730) 446 RON
76 1 1 Guide bush (341003970) 1564 RON
77 1 1 Thrust bolt (341513810) 781 RON
78 1 1 Cranked wrench key (344161520) 781 RON
79 1 1 Interf. suppr. (343254580) 488 RON
880 1 1 Grease 100G (344130910) 5926 RON
1001 1 1 338503950 - Indisponibil
