Top » Piese de schimb » PIESE METABO » 0010070058 12

MEGA 700 D - 0010070058 12 - 3 / 400V/50Hz
[0010070058 12]
MEGA 700 D - 0010070058 12 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
MEGA 700 D - 0010070058 12 - 3 / 400V/50Hz
Click pentru a mari
MEGA 700 D - 0010070058 12 - 3 / 400V/50Hz
Click pentru a mari

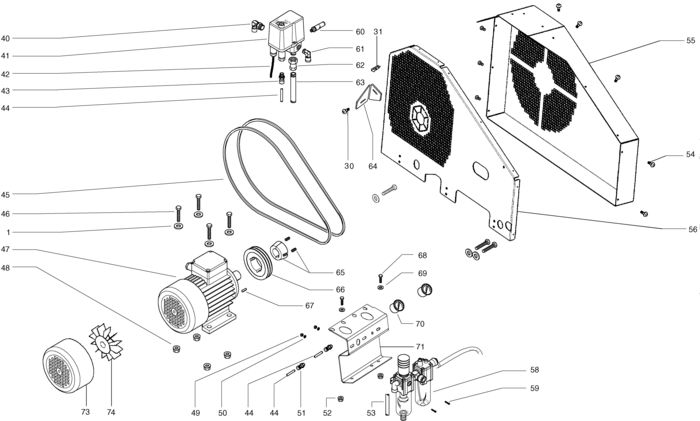

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 18 MEDIUM WASHER (86300016349) 446 RON
2 1 2 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
3 1 1 REDUCER NIPPL 1 1/4"X1/2" NR.241 / VERZ. (87871027042) 3018 RON
4 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
5 1 1 THREADED PLUG 1" NR.596 / VERZ. (87871675990) 3689 RON
6 1 1 DRAIN VALVE R 1/2" (87830029286) 15993 RON
7 1 2 SWIVEL PLATE CASTER RD 75X25 M.FESTSTELL (87271663832) 10288 RON
8 1 2 HEXAGON SOCKET HEAD CAP SCREW M 10X25 VE (86127609460) 446 RON
9 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
10 1 2 WASHER B 13 VERZ. (86305002508) 446 RON
11 1 2 WHEEL, PNEUMATIC TYRE RD 300/100 (87270663812) 33553 RON
12 1 2 Washer (86300016705) Indisponibil Indisponibil
13 1 2 HEXAGON HEAD SCRE M 12X100 VERZ. (86103001275) 105 RON
14 1 4 HEXAGON HEAD SCREW M 10X40 VERZ. (86103001259) 446 RON
15 1 1 STEEL MESH HOSE NW13X500/16BAR M26X1,5 / (87853663993) 34448 RON
16 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD 18 M. (81001676705) 26730 RON
17 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402415682) 2848 RON
18 1 2 HANDLE (81341630874) 3689 RON
19 1 6 86172039616 - Indisponibil
20 1 1 HANDLE TUBE RDA 20X1,5X1231 GEBOGEN (81317677835) 34448 RON
21 1 1 HOSE COIL ASSEMBLY ET (81001678430) 88582 RON
22 1 1 REDUCER NIPPL 1"X1/2" NR.241 / VERZ. (87871026968) 190 RON
23 1 1 7802009105 - Indisponibil
24 1 1 HOSE CLAMP (81341645472) 446 RON
30 1 2 Fillister head screw (86172001830) 446 RON
31 1 2 TIN NUT (86265167657) 781 RON
32 1 2 BEARING BLOCK (81341634594) 105 RON
33 1 1 ELBOW TAP CONNECTOR R 1/4"A X 10MM M.O-R (87872675854) 7157 RON
34 1 1 CRANK (81341634608) 105 RON
40 1 2 ELBOW TAP CONNECTOR R 1/4"A X 10MM M.O-R (87872675854) 7157 RON
41 1 1 88101190820 - Indisponibil
42 1 1 CABLE, RUBBER JACKET, W/O PLUG A=70 GE/G (88401664077) 2459 RON
43 1 1 RELIEF VALVE EV3 S (87834664121) 8275 RON
44 1 2 PLASTIC HOSE BLACK RD 6X1X1000 SCHWARZ (87851190842) 2124 RON
45 1 2 V-BELT SPA 1757 (87230663941) 13756 RON
46 1 4 HEXAGON SOCKET HEAD CAP SCREW M 10X35 VE (86127056666) 781 RON
47 1 1 ELECTRIC MOTOR 400/3/50 2800UPM B3 /M.KL (88013663905) 295725 RON
48 1 14 FLANGE NUT M 10 VERZ./VERZAHNUNGSAUF (86209675984) 446 RON
49 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
50 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
51 1 4 TUBE FITTING 1/8"X RD 6 GERADE-STECKBAR (87872722836) 2459 RON
52 1 2 Flange nut (6209110995) 446 RON
53 1 1 PLASTIC HOSE RD 6X2X100000 DRUCK./HITZEB (87851675935) 7157 RON
54 1 12 86172722847 - Indisponibil
55 1 1 316050470 - Indisponibil
56 1 1 PROTECTIVE GRATING, REAR BL 1,50X489X797 (81312722387) 59166 RON
58 1 1 SERVICE UNIT FRL 1/2"/0-12BAR (87821724800) 9821 RON
59 1 2 Hex head screw (86103001127) 446 RON
60 1 1 SAFETY VALVE R 1/4" 11 BAR (87833009618) 19236 RON
61 1 1 ELBOW TAP CONNECTOR 1/4"A X 6MM M.O-RING (87872663090) 5479 RON
62 1 1 TUBE FITTING 1/2"I X 1/2"A L?SBAR (87871664190) 7157 RON
63 1 1 PIPE NIPPLE 1/2"X80 VERZINKT ENTFETTET (87812025613) 190 RON
64 1 1 CONNECTING PLATE BL 1,50X25,5X68,5 MEGA (81312722492) 3018 RON
65 1 1 LOCKING BUSH 2012-28 / NUT 8 MM TAPER (87243676686) 8275 RON
66 1 2 V-BELT PULLEY TBA 180-2-2012 (87240663974) 33553 RON
67 1 1 FEATHER KEY A 8X7X35 ET (86721608849) 446 RON
68 1 2 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
69 1 2 Washer (86300016322) Indisponibil Indisponibil
70 1 2 1001697303 - Indisponibil
71 1 1 RETENTION PLATE BL 2,00X262X276,5 MEGA 5 (81312722506) 18341 RON
73 1 1 FAN COVER BAUGR??E 100/ET MEGA 600/700/7 (81312713981) 19236 RON
74 1 1 FAN WING BAUGR??E 100/ET MEGA 600/700/71 (81312713973) 13756 RON
100 1 1 COMPRESSOR PUMP B 5900/B L?FTERRAD BEARB (81313650223) 392698 RON
101 1 1 1319164258 - Indisponibil
102 1 1 1319164266 - Indisponibil
103 1 2 1319164274 - Indisponibil
104 1 1 1319161844 - Indisponibil
105 1 1 1315161858 - Indisponibil
106 1 4 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
107 1 2 1319161836 - Indisponibil
108 1 1 INTERMEDIATE COOLER ET (81319636281) 8275 RON
109 1 2 SAFETY VALVE R 1/4" 4,0-4,5BAR ET (87833626781) 7157 RON
111 1 1 ROTARY SHAFT SEAL 30x42x7 ET (87635638910) 7157 RON
112 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
113 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
114 1 1 Cap screw (86121000839) Indisponibil Indisponibil
115 1 1 CYLINDER HEAD ET (81319650594) 93951 RON
116 1 1 CYLINDER HEAD GASKET ET (81319156247) 18341 RON
117 1 1 VALVE ASSEMBLY ET (81319156204) 14839 RON
118 1 1 CYLINDER ET (81310157097) 245282 RON
119 1 1 AIR FILTER ET (87825156318) 18341 RON
120 1 1 1315161874 - Indisponibil
121 1 1 1319161860 - Indisponibil
122 1 1 OIL WIPING RING RD 105X5,5 ET (81319164339) 30980 RON
123 1 1 PISTON RING RD 105X2,5 ET (81319164320) 18341 RON
124 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
125 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
126 1 1 AFTERCOOLER ET (81313631792) 73930 RON
127 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
128 1 1 CYLINDER FOOT GASKET ET (81319162000) 8275 RON
130 1 1 PACKING, BEARING CAP ET (81319164525) 1564 RON
131 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
133 1 1 CRANKCASE PACKING ET (81319164460) 18341 RON
136 1 4 CONROD BEARING SHELL ET (81319166714) 13756 RON
137 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
138 1 2 OIL SPLASH NEEDLE ET (81319164789) 190 RON
139 1 1 CYLINDER GASKET ET (81319156239) 13756 RON
140 1 1 PACKING, VALVE PLATE ET (81319156212) 21361 RON
