Top » Piese de schimb » PIESE METABO » 0230165000 10

Mega 650/200 D 400/3/50 - 0230165000 10 - 3 / 400V/50Hz
[0230165000 10]
Mega 650/200 D 400/3/50 - 0230165000 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
Mega 650/200 D 400/3/50 - 0230165000 10 - 3 / 400V/50Hz
Click pentru a mari
Mega 650/200 D 400/3/50 - 0230165000 10 - 3 / 400V/50Hz
Click pentru a mari

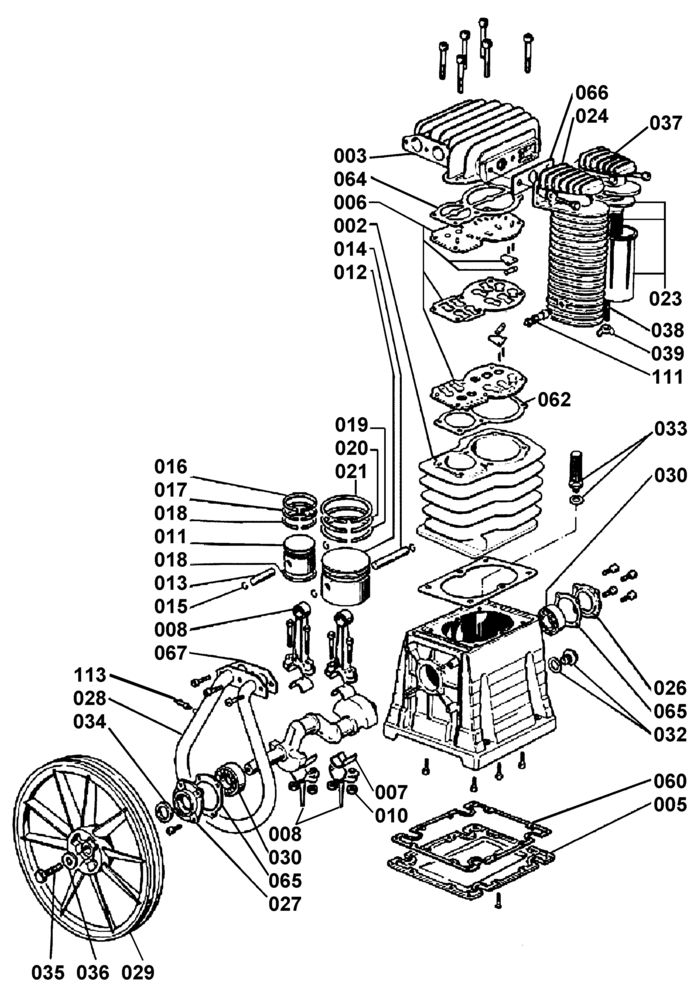

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 CYLINDER ET (81310157097) 245282 RON
3 1 1 CYLINDER HEAD ET (81319650594) 93951 RON
5 1 1 Base plate (315417570) 3698 RON
6 1 1 VALVE ASSEMBLY ET (81319156204) 14839 RON
7 1 4 CONROD BEARING SHELL ET (81319166714) 13756 RON
8 1 2 CONNECTING ROD ET (81319165645) 54357 RON
10 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
11 1 1 1319161844 - Indisponibil
12 1 1 1319161860 - Indisponibil
13 1 1 1315161858 - Indisponibil
14 1 1 1315161874 - Indisponibil
15 1 4 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
16 1 1 1319164258 - Indisponibil
17 1 1 1319164266 - Indisponibil
18 1 1 1319164274 - Indisponibil
19 1 1 OIL WIPING RING RD 105X5,5 ET (81319164339) 30980 RON
20 1 1 PISTON RING RD 105X2,5 ET (81319164320) 18341 RON
21 1 1 PISTON RING RD 105X2,5 ET (81319164312) 15993 RON
23 1 1 Filter compl. (87825741784) 4442 RON
24 1 1 AFTERCOOLER ET (81313631792) 73930 RON
26 1 1 Bearing cover (315417540) 8275 RON
27 1 1 Bearing cover (315417550) 8275 RON
28 1 1 INTERMEDIATE COOLER ET (341148280) 88582 RON
29 1 1 FLYWHEEL RD 430 ET (81319155852) 88582 RON
30 1 2 Ball bearing (143115350) 955 RON
32 1 1 OIL SIGHT GLASS 1" ET (81319155879) 7157 RON
33 1 1 CRANKCASE BREATHER 3/8" ET (81319155909) 10288 RON
34 1 1 ROTARY SHAFT SEAL 30x42x7 ET (87635638910) 7157 RON
35 1 1 Cap screw (86121000839) Indisponibil Indisponibil
36 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
37 1 1 Flange (81319741832) 68673 RON
38 1 1 Threaded bolt (81319741808) 488 RON
39 1 1 Thumb-nut (141130400) 781 RON
60 1 1 CRANKCASE PACKING ET (81319164460) 18341 RON
62 1 1 CYLINDER GASKET ET (81319156239) 13756 RON
64 1 1 CYLINDER HEAD GASKET ET (81319156247) 18341 RON
65 1 2 PACKING, BEARING CAP ET (81319164525) 1564 RON
66 1 1 PACKING, AFTERCOOLER ET (81319161747) 8275 RON
67 1 1 INTERMEDIATE COOLER ET (81319636281) 8275 RON
101 1 1 Set of wheels compl. (316050580) 41718 RON
102 1 2 Set of wheels ?250 ?20 (316048540) 18341 RON
103 1 1 Caster compl. (316048550) 19236 RON
104 1 1 Strap (341148270) 24046 RON
105 1 1 CHECK VALV (341148290) 30980 RON
106 1 1 DRAIN VALVE R 3/8" (87830740931) 13756 RON
107 1 1 FILTER PRESSURE REGULATOR 4x1/2-1/4 (87820741549) 117663 RON
108 1 1 FILTER PRESSURE REGULATOR (316048560) 54357 RON
109 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
110 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
111 1 1 Valve,R1/4" 15 Bar (87833741815) 7157 RON
112 1 1 DOUBLE NIPPLE (339080830) 955 RON
113 1 1 SAFETY VALVE R 1/4" 4,0-4,5BAR ET (87833626781) 7157 RON
117 1 1 HANDLE BAR SLEEVE RD 20 ET (87008679490) 13756 RON
125 1 1 V-belt pulley ?180/28 1A (316048620) 34448 RON
126 1 1 V-BELT 13X1500 LI (87230013173) 7157 RON
127 1 1 PLASTIC HOSE (316048630) 18341 RON
131 1 1 88101190820 - Indisponibil
132 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402415682) 2848 RON
134 1 1 CABLE, RUBBER JACKET, W/O PLUG A=70 GE/G (88401664077) 2459 RON
135 1 1 MOTOR HP5 4KW V400/700 BH112 (88402741300) 295725 RON
136 1 1 FAN COVER (330002050) 7157 RON
137 1 1 Fan (343431150) 3018 RON
141 1 1 Belt guard rear (343399580) 19236 RON
142 1 1 Belt guard front (343399370) 24046 RON
145 1 1 PRESSURE LINE compl. (316048640) 18341 RON
