Top » Piese de schimb » PIESE METABO » 0230155000 10

Mega 550/200 D 400/3/50 - 0230155000 10 - 3 / 400V/50Hz
[0230155000 10]
Mega 550/200 D 400/3/50 - 0230155000 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
Mega 550/200 D 400/3/50 - 0230155000 10 - 3 / 400V/50Hz
Click pentru a mari
Mega 550/200 D 400/3/50 - 0230155000 10 - 3 / 400V/50Hz
Click pentru a mari

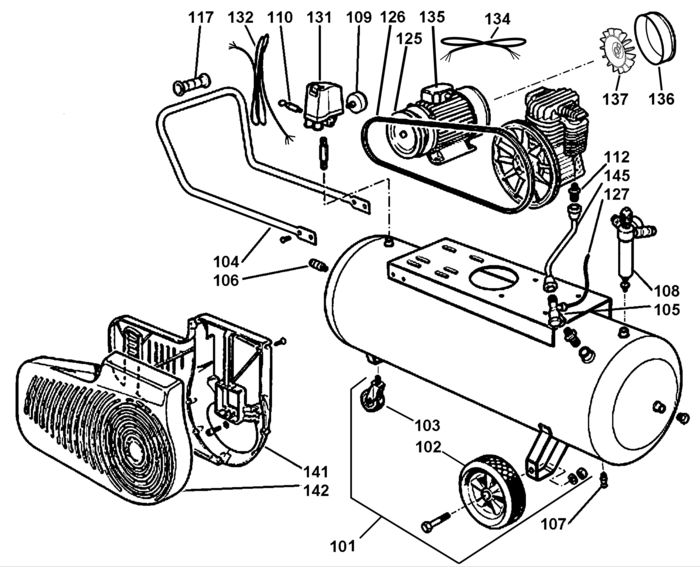

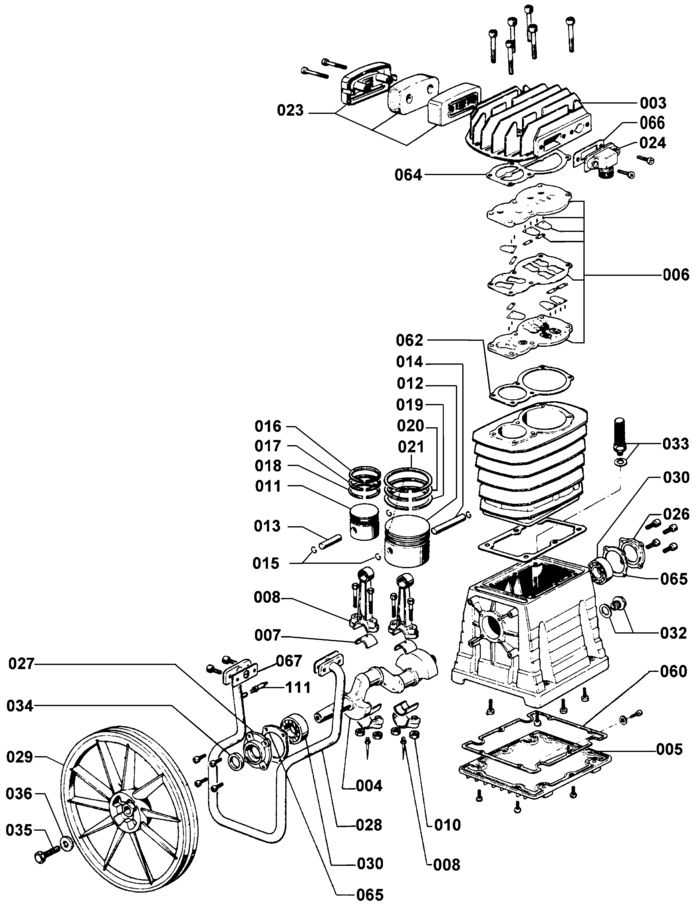

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 CYLINDER HEAD ET (81319156123) 83437 RON
4 1 1 CRANKSHAFT ET (81315164709) 220451 RON
5 1 1 Base plate (315417530) 3698 RON
6 1 1 VALVE ASSEMBLY ET (81319156131) 117663 RON
7 1 4 CONROD BEARING SHELL ET (81319157057) 10288 RON
8 1 2 CONNECTING ROD B4900B /ET (81319679142) 41718 RON
10 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
11 1 1 PISTON, HP RD 50 ET (81319163790) 64311 RON
12 1 1 PISTON, LP RD 95 ET (81319163804) 108379 RON
13 1 1 GUDGEON PIN RD 18X42 ET (81315163915) 15993 RON
14 1 1 Fixing bolt (81315163923) 13756 RON
15 1 4 CIRCLIP FOR BORES 18X1 ET (86401627209) 446 RON
16 1 1 1319164193 - Indisponibil
17 1 1 1319164207 - Indisponibil
18 1 1 1319164215 - Indisponibil
19 1 1 OIL WIPING RIN RD 95X5 (81319164240) 26730 RON
20 1 1 1319164231 - Indisponibil
21 1 1 PISTON RIN RD 95X2,5 (81319164223) 13756 RON
23 1 1 AIR FILTER ET (87825156180) 13756 RON
24 1 1 FITTING FLANGE ET (81310166576) 15993 RON
26 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
27 1 1 Bearing cover (315417580) 5926 RON
28 1 1 1319639310 - Indisponibil
29 1 1 FLYWHEEL RD 350 ET (81319678391) 117663 RON
30 1 2 DEEP GROOVE BALL BEARING 25X52X15 6205 (87100157076) 18341 RON
32 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
33 1 1 CRANKCASE BREATHER 3/8" ET (81319155895) 15993 RON
34 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
35 1 1 Cap screw (86121000839) Indisponibil Indisponibil
36 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
60 1 1 CRANKCASE PACKING ET (81319164444) 13756 RON
62 1 1 CYLINDER GASKET ET (81319156166) 955 RON
64 1 1 CYLINDER HEAD GASKET ET (81319156174) 13756 RON
65 1 2 1319157022 - Indisponibil
66 1 1 PACKING, PRESSURE LINE ET (81319161763) 5479 RON
67 1 2 PACKING, INTERMEDIATE COOLER ET (81319157138) 488 RON
101 1 1 Set of wheels compl. (316050580) 41718 RON
102 1 1 Set of wheels ?250 ?20 (316048540) 18341 RON
103 1 1 Caster compl. (316048550) 19236 RON
104 1 1 Strap (341148270) 24046 RON
105 1 1 7802009105 - Indisponibil
106 1 1 DRAIN VALVE R 3/8" (87830740931) 13756 RON
107 1 1 FILTER PRESSURE REGULATOR 4x1/2-1/4 (87820741549) 117663 RON
108 1 1 FILTER PRESSURE REGULATOR (316048560) 54357 RON
109 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
110 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
111 1 1 SAFETY VALVE R 1/4" 4,0-4,5BAR ET (87833626781) 7157 RON
112 1 1 double nipple (87806182642) 5926 RON
117 1 1 HANDLE BAR SLEEVE RD 20 ET (87008679490) 13756 RON
125 1 1 V-belt pulley (316048570) 24046 RON
126 1 1 V-BELT 13X1500 LI (87230013173) 7157 RON
127 1 1 PLASTIC HOSE (316048580) 18341 RON
131 1 1 88101190820 - Indisponibil
132 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402415682) 2848 RON
134 1 1 CABLE, RUBBER JACKET, W/O PLUG A=70 GE/G (88401664077) 2459 RON
135 1 1 Motor cpl. (317003970) 392698 RON
136 1 1 FAN COVER (330002040) 5926 RON
137 1 1 Fan (343431140) 2459 RON
141 1 1 Belt guard rear (343399980) 18341 RON
142 1 1 Belt guard front (343399990) 19236 RON
145 1 1 PRESSURE LINE compl. (316048610) 19236 RON
