Top » Piese de schimb » PIESE METABO » 0010056004 13

MEGA 500 D - 0010056004 13 - 3 / 400V/50Hz
[0010056004 13]
MEGA 500 D - 0010056004 13 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
MEGA 500 D - 0010056004 13 - 3 / 400V/50Hz
Click pentru a mari
MEGA 500 D - 0010056004 13 - 3 / 400V/50Hz
Click pentru a mari

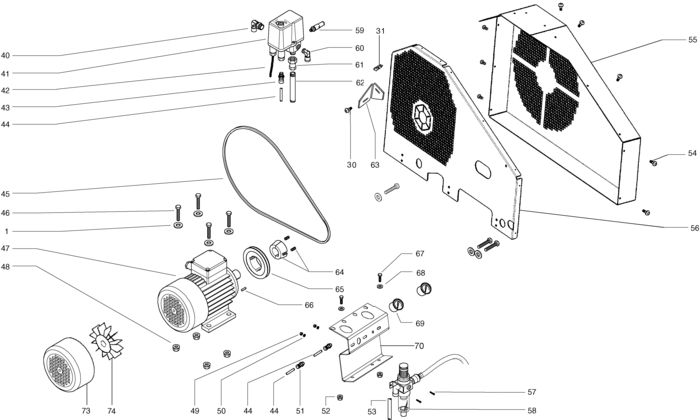

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 14 MEDIUM WASHER (86300016349) 446 RON
2 1 2 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
3 1 1 REDUCER NIPPL 3/4"X1/2" NR. 241 / VERZ. (87871032658) 1564 RON
4 1 1 UNION R 1/2"AG X RD 15 GERADE (87872027356) 488 RON
5 1 8 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
6 1 1 THREADED PLUG 1" NR.596 / VERZ. (87871675990) 3689 RON
7 1 1 DRAIN VALVE R 1/2" (87830029286) 15993 RON
8 1 2 SWIVEL PLATE CASTER RD 75X25 M.FESTSTELL (87271663832) 10288 RON
9 1 2 HEXAGON SOCKET HEAD CAP SCREW M 10X25 VE (86127609460) 446 RON
10 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
11 1 4 WASHER B 13 VERZ. (86305002508) 446 RON
12 1 2 WHEEL, PNEUMATIC TYRE RD 260/85 M.STAHLF (87270663825) 30980 RON
13 1 2 Washer (86300016705) Indisponibil Indisponibil
14 1 2 HEXAGON HEAD SCRE M 12X80 VERZ. (86102024123) 446 RON
15 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402415682) 2848 RON
16 1 2 HANDLE (81341630874) 3689 RON
17 1 6 86172039616 - Indisponibil
18 1 1 HANDLE TUBE RDA 20X1,5X1231 GEBOGEN (81317677835) 34448 RON
19 1 1 HOSE COIL ASSEMBLY ET (81001678430) 88582 RON
20 1 1 7802009105 - Indisponibil
21 1 1 REDUCER NIPPL 1"X1/2" NR.241 / VERZ. (87871026968) 190 RON
22 1 4 HEXAGON HEAD SCREW M 10X40 VERZ. (86103001259) 446 RON
23 1 1 COPPER PIPE RD 15X1X1250 GEBOGEN (81317678300) 26730 RON
24 1 1 CHECK VALVE, ELBOW TYP R 1/2"X RD 15 M.G (81001193151) 34448 RON
25 1 1 HOSE CLAMP (81341645472) 446 RON
30 1 2 Fillister head screw (86172001830) 446 RON
31 1 2 TIN NUT (86265167657) 781 RON
32 1 2 BEARING BLOCK (81341634594) 105 RON
33 1 1 ELBOW TAP CONNECTOR R 1/4"A X 10MM M.O-R (87872675854) 7157 RON
34 1 1 CRANK (81341634608) 105 RON
40 1 2 ELBOW TAP CONNECTOR R 1/4"A X 10MM M.O-R (87872675854) 7157 RON
41 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 3/11- (88101182747) 88582 RON
42 1 1 CABLE, RUBBER JACKET, W/O PLUG A=70 GE/G (88401664077) 2459 RON
43 1 1 RELIEF VALVE EV3 S (87834664121) 8275 RON
44 1 2 PLASTIC HOSE BLACK RD 6X1X1000 SCHWARZ (87851190842) 2124 RON
45 1 1 V-BELT SPA 1400 (87230663917) 13756 RON
46 1 4 HEXAGON SOCKET HEAD CAP SCREW M 10X35 VE (86127056666) 781 RON
47 1 1 ELECTRIC MOTOR 400/3/50 2800UPM B3 /M.KL (88013677990) 245282 RON
48 1 4 FLANGE NUT M 10 VERZ./VERZAHNUNGSAUF (86209675984) 446 RON
49 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
50 1 2 Washer (86300016357) 446 RON
51 1 4 TUBE FITTING 1/8"X RD 6 GERADE-STECKBAR (87872722836) 2459 RON
52 1 4 Flange nut (6209110995) 446 RON
53 1 1 PLASTIC HOSE RD 6X2X100000 DRUCK./HITZEB (87851675935) 7157 RON
54 1 8 CAGE NUT M 5 (81010739906) 105 RON
55 1 1 1312739832 - Indisponibil
56 1 1 PROTECTIVE GRATING, REAR BL 1,50X416,5X6 (81312722360) 59166 RON
57 1 4 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
58 1 1 FILTER PRESSURE REGULATOR ASS` FR 1/4"/0 (87820724784) 54357 RON
59 1 1 SAFETY VALVE R 1/4" 11 BAR (87833009618) 19236 RON
60 1 1 ELBOW TAP CONNECTOR 1/4"A X 6MM M.O-RING (87872663090) 5479 RON
61 1 1 TUBE FITTING 1/2"I X 1/2"A L?SBAR (87871664190) 7157 RON
62 1 1 PIPE NIPPL 1/2"X150 VERZINKT (87812052440) 3018 RON
63 1 1 1312739891 - Indisponibil
64 1 1 LOCKING BUSH 1610-24 / NUT 8 MM TAPER (87243676007) 7157 RON
65 1 1 V-BELT PULLEY TBA 132-1-1610 (87240663966) 15993 RON
66 1 1 FEATHER KEY A 8X7X35 ET (86721608849) 446 RON
67 1 2 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
68 1 4 Washer (86300016322) Indisponibil Indisponibil
69 1 2 1001697303 - Indisponibil
70 1 1 RETENTION PLATE BL 2,00X262X276,5 MEGA 5 (81312722506) 18341 RON
73 1 1 FAN COVER T 90 L-2 (81312714732) 21361 RON
74 1 1 FAN WING T 90 L-2 (81312714724) 11519 RON

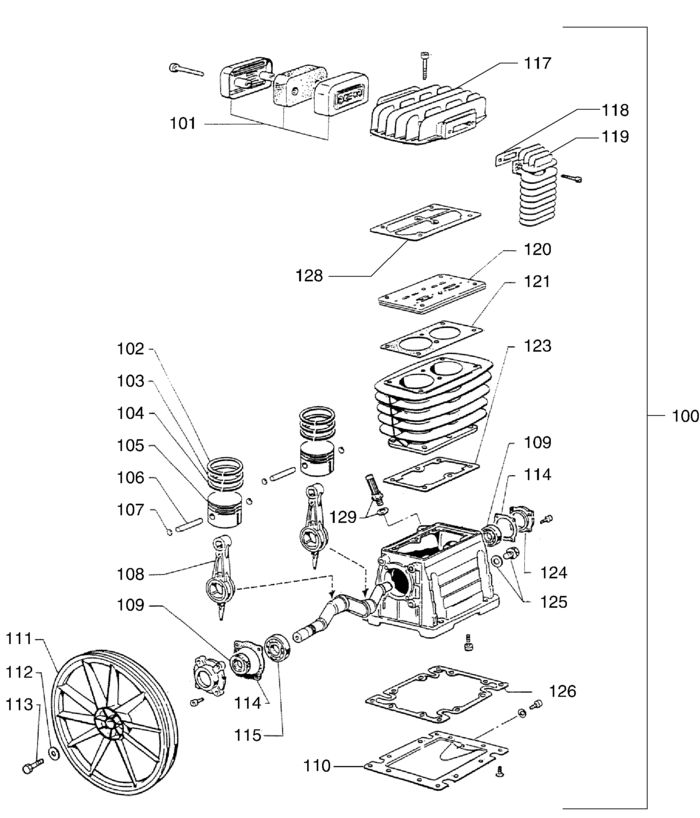

100 1 1 COMPRESSOR PUMP B3800B M.L?FTERRAD RD350 (81313663848) 295725 RON
101 1 1 7825156113 - Indisponibil
102 1 2 PISTON RING RD 60X2 ET (81319164100) 13756 RON
103 1 2 PISTON RING RD 60X2 ET (81319164118) 15993 RON
104 1 2 OIL WIPING RING RD 60X3 ET (81319164126) 18341 RON
106 1 2 GUDGEON PIN RD 15X50 ET (81315163885) 11519 RON
108 1 2 CONNECTING ROD ET (81319657378) 2848 RON
109 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
110 1 1 HOUSING LID (81319720150) 19236 RON
111 1 1 FLYWHEEL RD 350 ET (81319678391) 117663 RON
112 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
113 1 1 Cap screw (86121000839) Indisponibil Indisponibil
115 1 2 DEEP GROOVE BALL BEARING 25X52X15 6205 (87100157076) 18341 RON
118 1 1 PACKING, AFTERCOOLER ET (81319151431) 5479 RON
119 1 1 AFTERCOOLER 11 LAMELLEN B3800B /ET (81319707448) 19236 RON
124 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
125 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
126 1 1 PACKING, HOUSING LID ET (81319657386) 13756 RON
129 1 1 OIL WIPING SCREW 3/8" ET (81319655111) 955 RON
