Top » Piese de schimb » PIESE METABO » 0230145200 11

Mega 490/100 W 230/1/50 - 0230145200 11 - EU 230V
[0230145200 11]
Mega 490/100 W 230/1/50 - 0230145200 11 - EU 230V
Click pentru a mari
Imagini suplimentare
Mega 490/100 W 230/1/50 - 0230145200 11 - EU 230V
Click pentru a mari

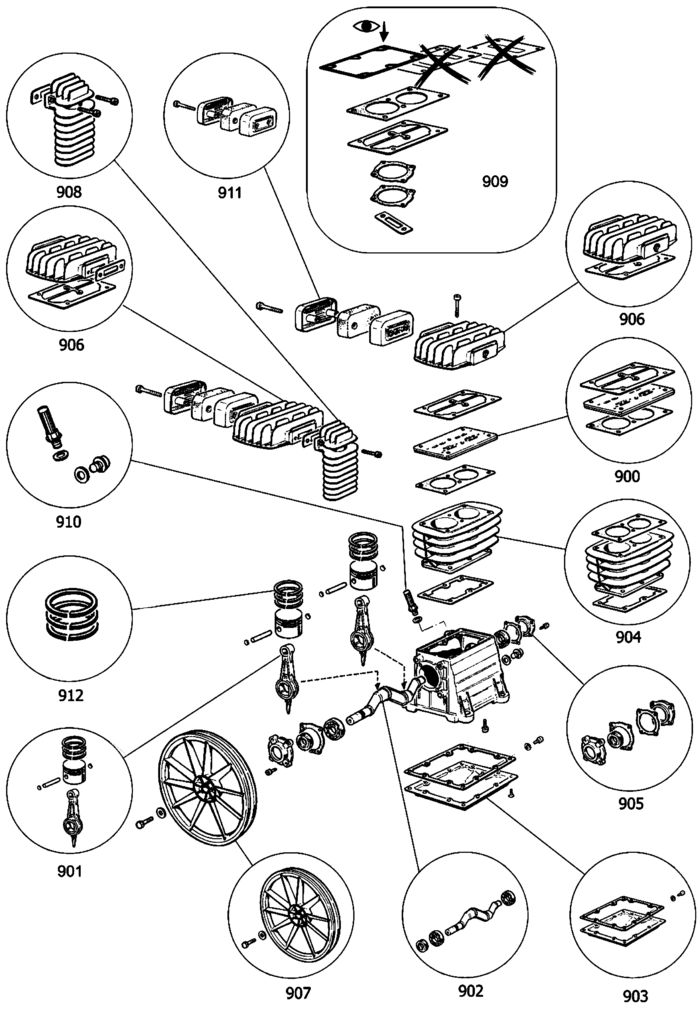

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
52 1 1 DRAINING VALVE (81319741310) 54357 RON
102 1 1 Set of wheels compl. (316049470) 49212 RON
104 1 1 HANDLE TUBE ET (81317723624) 15993 RON
105 1 1 CHECK VALV (341161330) 13756 RON
106 1 2 7802009105 - Indisponibil
107 1 1 DRAIN VALVE R 3/8" (87830740931) 13756 RON
108 1 1 FILTER PRESSURE REGULATOR 3/8" (87820740941) 68673 RON
109 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
110 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
112 1 1 REDUCER NIPPLE 3/4"X1/2"AG M. KONUS ET (87808728880) 11519 RON
117 1 1 HANDLE BAR SLEEVE RD 20 ET (87008679490) 13756 RON
125 1 1 V-BELT PULLEY 120x1A (87240741339) 21361 RON
126 1 1 V-BEL 13X1321 TYP 520 (87230167731) 15993 RON
127 1 1 PRESSURE HOSE 4/6" (87853741366) 2124 RON
131 1 1 AUTOM. PRESSURE CONTROL SWITCH 3/8" (88101740979) 34448 RON
132 1 1 CABLE, RUBBER JACKET,WITH PLUG 3x1,5x200 (88402740990) 18341 RON
135 1 1 MOTOR HP3 230V (88402741296) 295725 RON
138 1 1 Overload protection (343409690) 11519 RON
141 1 1 BELT GUARD, MOTOR SIDE (81381741377) 10288 RON
142 1 1 BELT GUARD ET (81311661279) 15993 RON
145 1 1 PRESSURE LINE (81001741418) 34448 RON
900 1 1 GASKET KIT ET (81319731870) 64311 RON
901 1 2 CONNECTING ROD (81319741050) 59166 RON
902 1 1 CRANKSHAFT with bracket (81319741034) 59166 RON
903 1 1 Housing lid with gasket (81310741040) 34448 RON
904 1 1 GASKET KIT ET (81319731900) 14839 RON
905 1 1 BEARING CAP, PINION END compl. (81319741077) 2848 RON
906 1 1 CYLINDER HEAD ET (81319738076) 64311 RON
907 1 1 FLYWHEEL compl. RD 280 (81319741085) 64311 RON
908 1 1 AFTERCOOLER 11 LAMELLEN B3800B /ET (81319707448) 19236 RON
909 1 1 GASKET KIT (81319741387) 3698 RON
910 1 1 Air vent and oil sight glass (81319741093) 24046 RON
911 1 1 AIR FILTER ASSEMBLY (87825741393) 30980 RON
912 1 2 Piston ring (81319741069) 2848 RON
