Top » Piese de schimb » PIESE METABO » 0230045038 11

Mega 450 W - 0230045038 11 - EU 230V
[0230045038 11]
Mega 450 W - 0230045038 11 - EU 230V
Click pentru a mari
Imagini suplimentare
Mega 450 W - 0230045038 11 - EU 230V
Click pentru a mari
Mega 450 W - 0230045038 11 - EU 230V
Click pentru a mari

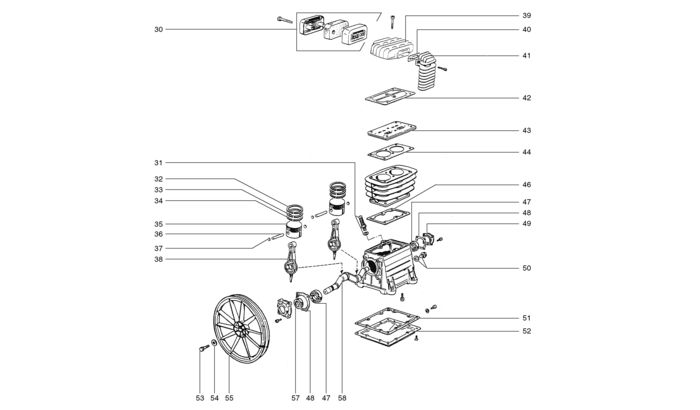

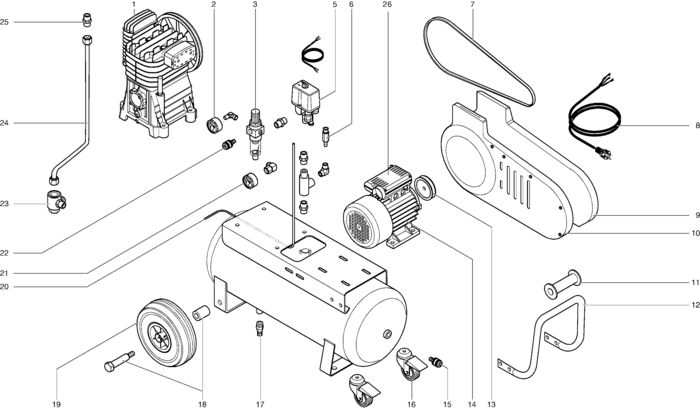

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 COMPRESSOR PUMP B 2800 B ET (81319655257) 171574 RON
2 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
3 1 1 FILTER PRESSURE REGULATOR FR BIT 1/4" MA (87820661987) 4442 RON
5 1 1 AUTOM. PRESSURE CONTROL SWITCH 6-8 BAR 2 (88101149774) 2848 RON
6 1 1 SAFETY VALVE R 3/8" 11 BAR ET (87833182638) 33553 RON
7 1 1 V-BEL 13X1321 TYP 520 (87230167731) 15993 RON
8 1 1 CABLE, RUBBER JACKET, W/O PLUG A=70 GE/G (88401664069) 3018 RON
9 1 1 BELT GUARD ET (81311661279) 15993 RON
10 1 1 BELT GUARD, MOTOR SIDE ET (81311723649) 11519 RON
11 1 1 HANDLE BAR SLEEVE RD 20 ET (87008679490) 13756 RON
12 1 1 HANDLE TUBE ET (81317723624) 15993 RON
13 1 1 V-BELT PULLEY 140X1 A=BOHRUNG 24 ET (87240684440) 2848 RON
14 1 1 ELECTRIC MOTOR 1X230V 50HZ ET (88012182806) 295725 RON
15 1 1 7802009105 - Indisponibil
16 1 2 SWIVEL PLATE CASTER (87271650277) 2848 RON
17 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
18 1 2 KEY PIN RD 20X105 ET (81315182677) 10288 RON
19 1 2 WHEEL, PNEUMATIC TYRE RD 250 / NABE 20 E (87270182555) 26730 RON
20 1 1 7853185960 - Indisponibil
21 1 1 PRESSURE GAUGE RD 50 1/4"0/20 10B ET (87823182869) 15993 RON
22 1 1 7802009083 - Indisponibil
23 1 1 CHECK VALVE 3/4"X1/2" ET (87831182592) 18341 RON
24 1 1 PRESSURE LINE ET (81319723664) 24046 RON
25 1 1 REDUCER NIPPLE 3/4"X1/2"AG M. KONUS ET (87808728880) 11519 RON
26 1 1 TERMINAL BOX (81001703036) 11519 RON
30 1 1 7825156113 - Indisponibil
31 1 1 OIL WIPING SCREW 3/8" ET (81319655111) 955 RON
32 1 2 PISTON RING RD 60X2 ET (81319164100) 13756 RON
33 1 2 PISTON RING RD 60X2 ET (81319164118) 15993 RON
34 1 2 OIL WIPING RING RD 60X3 ET (81319164126) 18341 RON
35 1 2 PISTON RD 60 ET (81319163766) 2848 RON
36 1 2 GUDGEON PIN RD 15X50 ET (81315163885) 11519 RON
37 1 4 6401627241 - Indisponibil
38 1 2 1319655103 - Indisponibil
39 1 1 CYLINDER HEAD ET (81319738076) 64311 RON
40 1 1 PACKING, PRESSURE LINE (81319157014) 4249 RON
41 1 1 AFTERCOOLER 11 LAMELLEN B3800B /ET (81319707448) 19236 RON
42 1 1 1319655138 - Indisponibil
43 1 1 1319155933 - Indisponibil
44 1 1 1319655146 - Indisponibil
46 1 1 1319655120 - Indisponibil
47 1 2 7100165877 - Indisponibil
48 1 2 1319157022 - Indisponibil
49 1 1 BEARING CAP, PINION END ET (81319157049) 7157 RON
50 1 1 OIL SIGHT GLASS 1/2" ET (81319155860) 488 RON
51 1 1 PACKING, HOUSING LID ET (81319624380) 10288 RON
52 1 1 HOUSING LID ET (81310157119) 18341 RON
53 1 1 Cap screw (86121000839) Indisponibil Indisponibil
54 1 1 WASHER 8,5X30X5 ET (81315166400) 3018 RON
55 1 1 FLYWHEEL RD 280 ET (81319155828) 59166 RON
57 1 1 ROTARY SHAFT SEAL ET (87635157067) 5479 RON
58 1 1 CRANKSHAFT ET (81319655087) 171574 RON
7000 1 1 PRESSURE SPRING (87051693552) 190 RON
7001 1 1 GASKET (81311693570) 2459 RON
