Top » Piese de schimb » PIESE METABO » 0230042004 10

MEGA 420 EUROPE - 0230042004 10 - EU 230V
[0230042004 10]
MEGA 420 EUROPE - 0230042004 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MEGA 420 EUROPE - 0230042004 10 - EU 230V
Click pentru a mari
MEGA 420 EUROPE - 0230042004 10 - EU 230V
Click pentru a mari

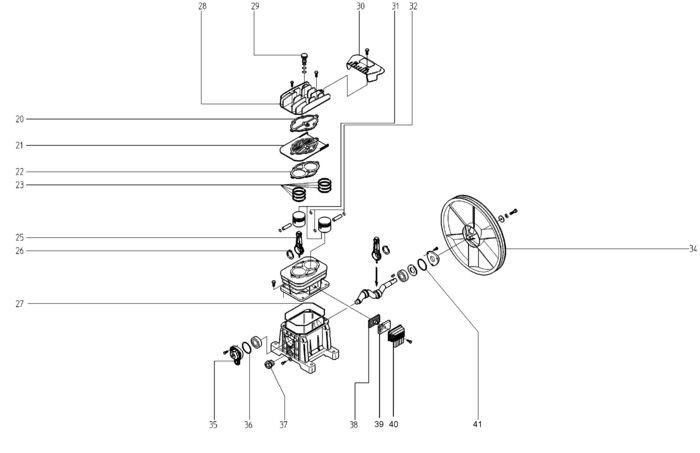

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 0901025894 - Indisponibil
2 1 1 7822686022 - Indisponibil
3 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
4 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 1/11 (88101662161) 30980 RON
5 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
6 1 1 POLY-RIB PULLEY RD=160 ET (81319686297) 26730 RON
7 1 1 8012686308 - Indisponibil
8 1 1 7230686313 - Indisponibil
9 1 1 COMPRESSOR PUMP AB 335 ET (81319686327) 295725 RON
10 1 1 PRESSURE LINE RD 14 MM ET (81319686068) 10288 RON
11 1 1 CHECK VALVE 1/2"AX1/2"A RECHTS/ET (87831662586) 19236 RON
12 1 1 SAFETY VALVE NA B10 E1D2 ET (87833686016) 15993 RON
13 1 1 7830686074 - Indisponibil
14 1 1 1001686085 - Indisponibil
15 1 2 SWIVEL PLATE CASTER 20X55 ET (87271686336) 955 RON
16 1 2 RADHUELSE (81315686101) 3018 RON
17 1 2 7270686111 - Indisponibil
20 1 1 CYLINDER HEAD GASKET ET (81319686122) 3689 RON
21 1 1 VALVE ET (81319686130) 33553 RON
22 1 1 PACKING, VALVE PLATE ET (81319686149) 488 RON
23 1 2 PISTON RING SET ET (81319661588) 19236 RON
25 1 1 CONNECTING ROD ET (81319686157) 955 RON
26 1 2 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
27 1 1 CYLINDER FOOT GASKET ET (81319686165) 8275 RON
28 1 1 CYLINDER HEAD ET (81319686173) 21361 RON
29 1 1 1319686343 - Indisponibil
30 1 1 1319686190 - Indisponibil
31 1 2 1319686203 - Indisponibil
32 1 4 RETAINING RING FOR SHAFTS (86400009935) 446 RON
34 1 1 FLYWHEEL RD=295 ET (81319686220) 21361 RON
35 1 1 1319686238 - Indisponibil
36 1 1 7632172359 - Indisponibil
37 1 1 1319686246 - Indisponibil
38 1 1 AIR FILTER CASING ET (81319686254) 8275 RON
39 1 1 1319686262 - Indisponibil
40 1 1 1319686270 - Indisponibil
