Top » Piese de schimb » PIESE METABO » 00334000

MAG 28 LTX 32 - 00334000 - -
[00334000]
MAG 28 LTX 32 - 00334000 - -
Click pentru a mari
Imagini suplimentare
MAG 28 LTX 32 - 00334000 - -
Click pentru a mari

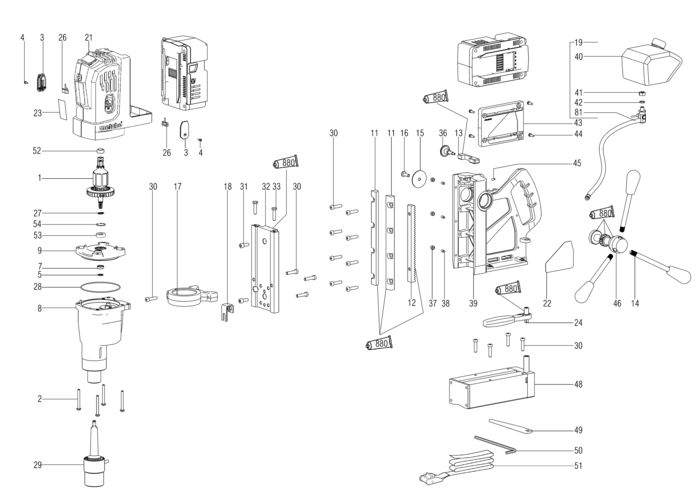

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Armature compl. (310010240) 26730 RON
2 1 4 Self-tap. fill. h. screw (141119370) 446 RON
3 1 2 Brush cover (343398600) 669 RON
4 1 2 Self-tapp. fill. h. screw (141119900) 446 RON
5 1 1 Circlip (342022150) 781 RON
7 1 1 Bush (341005780) 5926 RON
8 1 1 Gear-box compl. (316048310) 220451 RON
9 1 1 Gear cover compl. (316048960) 39481 RON
11 1 2 Guide strip (341148240) 24046 RON
12 1 1 Rack (341148220) 13756 RON
13 1 1 Latch (341148250) 3018 RON
14 1 3 Handle compl. (314001270) 2124 RON
15 1 1 Washer (141156530) 669 RON
16 1 1 Fillister head screw (141113080) 446 RON
17 1 1 Gear holder (315417510) 8275 RON
18 1 1 Holder (341148230) 2459 RON
19 1 1 cooling liquid tank compl. (316048530) 24046 RON
21 1 1 Motor housing compl. (316048290) 88582 RON
22 1 1 Rating plate (338056330) 446 RON
23 1 1 Indication label (338123200) 669 RON
24 1 1 Locking lever compl. (341161290) 49212 RON
26 1 1 Carbon brush set COD VECHI 316047580 (316060540) 3689 RON
27 1 1 Retaining ring (141180040) 446 RON
28 1 1 O-ring (143195370) 781 RON
29 1 1 Industrial arbors,MK2 (316046240) 14839 RON
30 1 16 141117050 - Indisponibil
31 1 2 Cap screw (141113850) 781 RON
32 1 1 Sliding carriage (315417520) 4442 RON
33 1 2 Hexagon head screw (141110280) 446 RON
36 1 1 Knob (341148260) 781 RON
37 1 3 Hexagonal nut (141130090) 446 RON
38 1 3 141123910 - Indisponibil
39 1 1 Stator housing compl. (316049640) 3698 RON
40 1 1 cooling liquid tank with cover (316049420) 5479 RON
41 1 1 Hex nut (141132010) 446 RON
42 1 1 339011910 - Indisponibil
43 1 1 Holder (343430380) 1564 RON
44 1 4 Fillister head screw (141119860) 781 RON
45 1 1 Index bolt (342001140) 781 RON
46 1 1 Gear-wheel shaft (340004190) 15993 RON
48 1 1 Magnet block (316048520) 442359 RON
49 1 1 339030120 - Indisponibil
50 1 1 Cranked wrench key (344163620) 3689 RON
51 1 1 tension belt (341148140) 18341 RON
52 1 1 Bearing bushing (341006020) 781 RON
53 1 1 Ball bearing, 10x26x8 (143111120) 7157 RON
54 1 1 Retaining ring (141180350) 781 RON
81 1 1 hose compl. (316049430) 13756 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
