MAG 832 - 00832000 - EU 230V
[00832000]
MAG 832 - 00832000 - EU 230V
Click pentru a mari
Imagini suplimentare
MAG 832 - 00832000 - EU 230V
Click pentru a mari
MAG 832 - 00832000 - EU 230V
Click pentru a mari

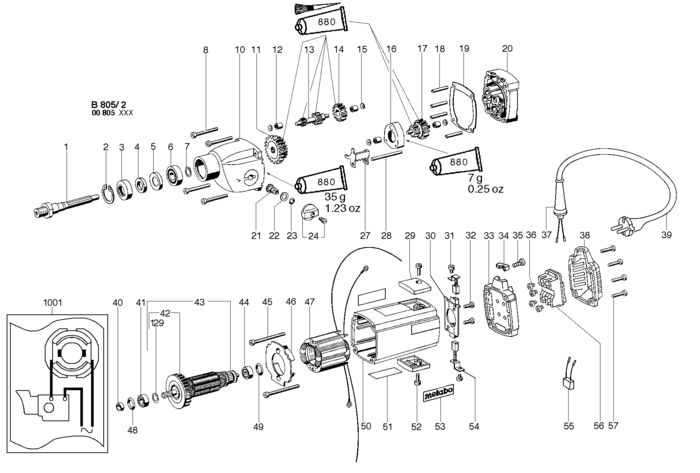

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Spindle (341602780) 21361 RON
2 1 1 Retaining ring (141181680) 446 RON
3 1 1 Spacer ring (343359210) 105 RON
4 1 1 Felt ring (143193700) 446 RON
5 1 1 Spacer sheet (339002660) 446 RON
6 1 1 Ball bearing, 15x32x9 (143113370) 5926 RON
7 1 1 Retaining ring (141180090) 781 RON
8 1 4 Self-tap. fill. h. screw (141118960) 446 RON
10 1 1 Gear housing cpl. (316015000) 46975 RON
11 1 1 Sliding block (340001660) 15993 RON
12 1 4 Needle sleeve (143111430) Indisponibil Indisponibil
13 1 1 Intermediate gear (340002070) 19236 RON
14 1 1 Spur gear (340002030) 955 RON
15 1 4 Butting washer (339001290) 446 RON
16 1 1 Grease cover (339039990) 2124 RON
17 1 1 Intermediate gear (316024190) 4442 RON
18 1 4 Cylinder sleeve (142160480) 446 RON
19 1 1 Gasket (339210210) 2459 RON
20 1 1 Gear flange cpl. (316015020) 34448 RON
21 1 1 Shift axle (340050050) 7157 RON
22 1 1 Washer (141152690) 446 RON
23 1 1 O-ring (143190060) 446 RON
24 1 1 Control knob cpl. (316012380) 2459 RON
27 1 1 Shift dog (339191010) 4249 RON
28 1 1 Guide bolt (341540010) 190 RON
29 1 2 Cover (343355050) 781 RON
30 1 1 Brush holder (343000550) 3689 RON
31 1 2 Fillister head screw (141110510) 446 RON
32 1 2 Self-tap. fill. h. screw (141118730) 446 RON
33 1 1 Intermediate flange (343366360) 488 RON
34 1 1 Cable clip (343362490) 781 RON
35 1 1 Self-tap. fill. h. screw (141116020) 781 RON
36 1 4 Fillister head screw (141118850) 446 RON
37 1 1 Cable sleeve (344100640) Indisponibil Indisponibil
38 1 1 End cover (343366350) 488 RON
39 1 1 Cable with plug (344492250) 3689 RON
40 1 1 Sealing ring (343356500) 446 RON
41 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
42 1 1 Fan with disc (316030240) 2459 RON
43 1 1 Armature cpl. 220 V (310005230) 59166 RON
44 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
45 1 2 Self-tap. fill. h. screw (141121680) 446 RON
46 1 1 Baffle (339150540) 190 RON
47 1 1 Field coil 220 V (311006340) 26730 RON
48 1 1 O-ring (143192570) 781 RON
49 1 1 O-ring (143192430) Indisponibil Indisponibil
50 1 1 Motor housing (315011640) 19236 RON
51 1 1 Rating plate (338024990) 446 RON
52 1 2 Self-tap. fill. h. screw (141116800) 446 RON
53 1 2 Metabo label (338123580) 105 RON
54 1 1 Carbon brush (316033550) 5926 RON
55 1 1 Interference suppr. cond. (343253220) 2124 RON
56 1 1 Switch (343405230) 10288 RON
57 1 4 Self-tap. fill. h. screw (141116980) 446 RON
70 1 1 Cable with plug (344491390) 33553 RON
71 1 1 Cable sleeve (344100860) 2459 RON
72 1 1 Gland (343300060) 955 RON
73 1 1 Safety band (341146380) 21361 RON
74 1 3 Bolt (341514240) 15993 RON
75 1 3 Sperical knob (143170070) 2459 RON
76 1 2 Fillister head screw (141110470) 446 RON
77 1 1 Socket body (344491420) 21361 RON
78 1 2 Countersunk screw (141120580) 105 RON
79 1 1 Plug mounting (344491400) 3689 RON
80 1 1 339125910 - Indisponibil
81 1 1 Stator housing (315413850) 295725 RON
82 1 5 Grub screw (141119990) 446 RON
83 1 2 Bronze bearing (320050350) 7157 RON
84 1 2 Fill in ring (344093690) 7157 RON
85 1 1 Feed shaft (340050020) 30980 RON
86 1 1 Tightening pin (141162700) 446 RON
87 1 1 Feed-shaft hub (340050030) 24046 RON
88 1 1 Tightening pin (141161170) 446 RON
89 1 2 Cap screw (341702560) 1340 RON
90 1 2 Serrated lock washer (141152270) 446 RON
91 1 2 141153010 - Indisponibil
92 1 1 Printed circuit board (343075180) 54357 RON
93 1 1 Nut (341101620) 190 RON
94 1 1 Switch (343405740) 18341 RON
95 1 1 Keyend end nut M18x1,5 (341101590) 11519 RON
96 1 1 Sticker (338108340) 7157 RON
97 1 1 Adaptor sleeve (341053570) 19236 RON
98 1 1 399999990 - Indisponibil
99 1 1 343075190 - Indisponibil
100 1 1 Rating plate (338026040) 446 RON
101 1 3 Cap screw (141113890) 781 RON
102 1 3 Washer Washer cod vechi 86300016365 (141151940) 446 RON
103 1 1 Magnet block (341144890) 343820 RON
104 1 1 Metabo label (338115510) 446 RON
105 1 2 Guide strip (339126570) 18341 RON
106 1 1 Pressure strip (341144880) 4249 RON
107 1 1 Rack (341144870) 2848 RON
108 1 1 Sliding carriage (315413860) 68673 RON
109 1 1 Cap screw (141113710) 781 RON
110 1 1 Hexagonal key (344161550) 781 RON
111 1 1 Hexagonal key (344161530) 781 RON
112 1 1 Hexagonal key (344161510) 781 RON
113 1 1 341053840 - Indisponibil
114 1 1 Grub screw (141114910) 446 RON
115 1 1 Pressure spring (342002140) 7157 RON
116 1 1 Guide (341053850) 13756 RON
117 1 1 Retaining ring (141180830) 781 RON
118 1 1 Ball bearing, 25x47x12 (143113230) 18341 RON
119 1 1 Washer (339060230) 13756 RON
120 1 1 Spring ring (141180740) 446 RON
121 1 1 Bolt (341053860) 18341 RON
122 1 1 Holder (315413870) 137236 RON
123 1 1 Cap screw (141114040) 446 RON
124 1 4 Cap screw (141113870) 781 RON
129 1 1 Washer (141152720) 781 RON
880 1 1 Grease SGF 079 (344130270) 2459 RON
1001 1 1 338501880 - Indisponibil
