MAG 32 - 00330390 - GB 110V
[00330390]
MAG 32 - 00330390 - GB 110V
Click pentru a mari
Imagini suplimentare
MAG 32 - 00330390 - GB 110V
Click pentru a mari
MAG 32 - 00330390 - GB 110V
Click pentru a mari

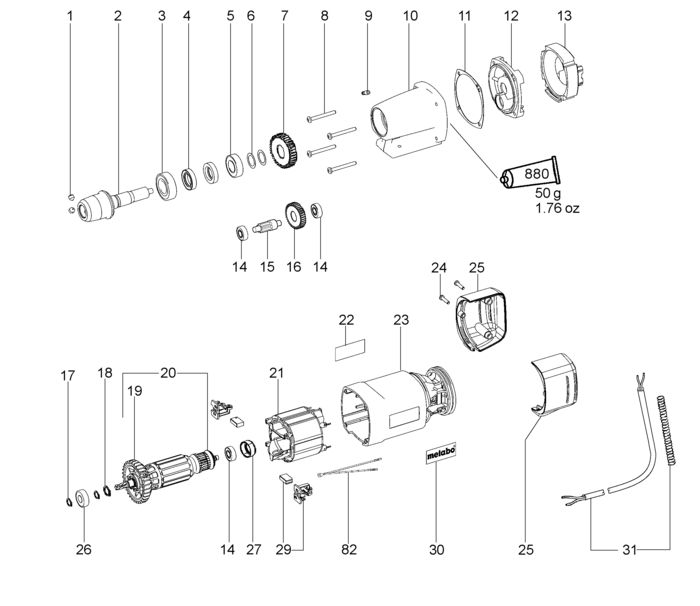

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 GEWINDESTIFT (141115080) 669 RON
2 1 1 Spindle (341604110) 54357 RON
3 1 1 Ball bearing, 20x42x12 (143112970) 8275 RON
4 1 2 Shaft sealing ring (143195280) 3018 RON
5 1 1 Ball bearing, 17x35x10 (143111450) 3689 RON
6 1 2 Washer (141151330) 781 RON
7 1 1 Spindle wheel (340003370) 18341 RON
8 1 4 Self-tap. fill. h. screw (141118810) 446 RON
9 1 1 nipple (341059420) 3689 RON
10 1 1 Gear housing compl. (316046860) 68673 RON
11 1 1 Gasket (339210850) 1340 RON
12 1 1 Gear cover compl. (316046870) 13756 RON
13 1 1 Baffle (339150970) 190 RON
14 1 3 Ball bearing, 8x22x7 (143113400) 488 RON
15 1 1 Intermediate gear (340003380) 18341 RON
16 1 1 Intermediate gear (340012030) 18341 RON
17 1 2 Retaining ring (141180040) 446 RON
18 1 1 Retaining ring (141180350) 781 RON
19 1 1 Fan w. prot. Grid (316032610) 4249 RON
20 1 1 Armature compl.,120V (310009700) 39481 RON
21 1 1 311011160 - Indisponibil
22 1 1 Rating plate (338055310) 446 RON
23 1 1 Motor housing (315012780) 7157 RON
24 1 2 Self-tap. fill. h. screw (141116020) 781 RON
25 1 1 Motor cap 2-part (343398680) 4249 RON
26 1 1 Ball bearing, 10x26x8 (143111120) 7157 RON
27 1 1 Rubber bearing (344096020) Indisponibil Indisponibil
29 1 2 Brush holder cp 120V (316032100) 7157 RON
30 1 1 M-Label,08 52x22 (338122160) 446 RON
31 1 1 Cable compl. (344498580) 8275 RON
41 1 8 Countersunk screw (141123840) 669 RON
42 1 1 Cover sheet (339134730) 21361 RON
43 1 1 Countersunk screw (141112280) 446 RON
44 1 1 Washer (339007330) 669 RON
45 1 1 Cable clip (339134790) 488 RON
46 1 1 Cap screw (141113590) 781 RON
47 1 1 cooling liquid tank compl. (316046770) Indisponibil Indisponibil
48 1 1 Stator housing compl. (316046910) 197187 RON
49 1 1 Gear-wheel shaft (340012670) 88582 RON
50 1 3 Handle compl. (314001240) 13756 RON
51 1 1 STRESS RELIEVE (341147980) 3689 RON
52 1 1 Cable sleeve (344098630) 955 RON
53 1 1 Cable w.british plug,110V (344498670) 30980 RON
54 1 2 Cap screw (141113850) 781 RON
55 1 1 Sliding carriage (315417400) 197187 RON
56 1 4 Cap screw (141113840) 781 RON
57 1 8 141117050 - Indisponibil
58 1 10 Washer (141151930) 446 RON
59 1 3 Plain hexagon nut (141130030) 446 RON
60 1 3 141123910 - Indisponibil
61 1 1 Guide strip (341148070) 41718 RON
62 1 1 Guide strip (341148080) 41718 RON
63 1 1 Rack (341148050) 34448 RON
64 1 1 Gland (341148150) 8275 RON
65 1 1 Countersunk screw (141112090) 446 RON
66 1 3 Lock washer (141150350) Indisponibil Indisponibil
67 1 3 Cap screw (141113870) 781 RON
68 1 2 Quetschkabelschuh (142110140) 1340 RON
69 1 4 Hexagonal nut (141130070) 446 RON
70 1 3 Spring washer (141150280) 446 RON
71 1 1 344498400 - Indisponibil
72 1 1 Fuse (142110150) 3689 RON
73 1 1 Electronic unit, 50/60Hz (343082210) 15993 RON
74 1 1 tension belt (341148140) 18341 RON
75 1 1 Cranked wrench key (344163630) 3689 RON
76 1 1 Magnet block (341148040) 117663 RON
77 1 1 Suppressor (343254630) 3689 RON
78 1 1 Face sheet metal (339134740) 39481 RON
79 1 1 On-off switch,230 V (343409320) 4249 RON
80 1 1 Electronic switch,120 V (343409460) 15993 RON
81 1 1 hose compl. (316050840) 8275 RON
82 1 1 399999990 - Indisponibil
880 1 1 Grease (344131050) 19236 RON
885 1 1 Grease 50Gr 1,8oz (344130990) 955 RON
1001 1 1 338505290 - Indisponibil
