BS 18 LTX-X3 Quick - 02114000 - -
[02114000]
BS 18 LTX-X3 Quick - 02114000 - -
Click pentru a mari
Imagini suplimentare
BS 18 LTX-X3 Quick - 02114000 - -
Click pentru a mari

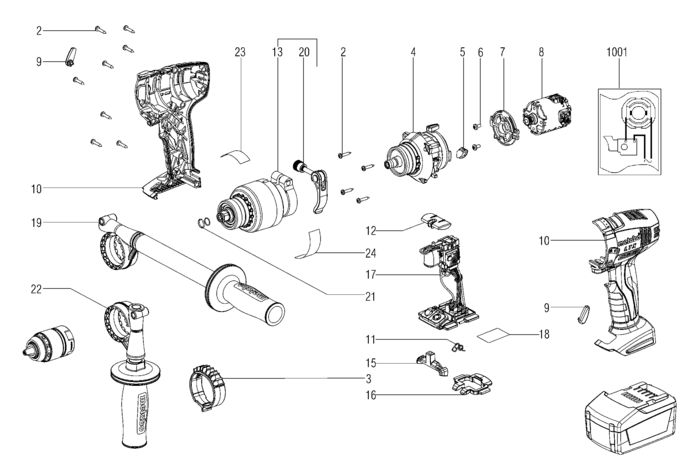

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 12 Self-tap. fill. h. screw (141113180) 446 RON
3 1 1 Screwdriber-bit depot (343396590) 781 RON
4 1 1 Gear-box compl. (316049780) 33553 RON
5 1 1 Electronic unit,6-20V (343081780) 955 RON
6 1 2 Fillister head screw (141119850) 446 RON
7 1 1 Motor flange (343393960) 669 RON
8 1 1 DC-motor,18 V (317003690) 41718 RON
9 1 2 Shift element (343394150) 446 RON
10 1 1 Housing w.cover (343394810) 13756 RON
11 1 1 Spring clip (342021670) 446 RON
12 1 1 Switch slide (343394800) 446 RON
13 1 1 Attachment 100 Nm (316049440) 26730 RON
14 1 1 Flat spring (342050860) 446 RON
15 1 1 Pressure plate (343394770) 446 RON
16 1 1 Switch slide (343394790) 446 RON
17 1 1 Electronic switch 18 V Impuls (343408680) 33553 RON
18 1 1 Rating plate (338056710) 446 RON
19 1 1 Side support handle compl. (314001330) 21361 RON
20 1 1 Clamping element (316049900) 190 RON
21 1 1 C/O-ring set (10x) (316049910) 1340 RON
22 1 1 Side support handle compl. (314001030) 5479 RON
23 1 1 Rating plate (338056850) 446 RON
24 1 1 Metabo-Schild patent pending (338123360) 446 RON
1001 1 1 338504870 - Indisponibil
