Top » Piese de schimb » PIESE METABO » 00174000

W 18 LTX 125 Inox - 00174000 - -
[00174000]
W 18 LTX 125 Inox - 00174000 - -
Click pentru a mari
Imagini suplimentare
W 18 LTX 125 Inox - 00174000 - -
Click pentru a mari

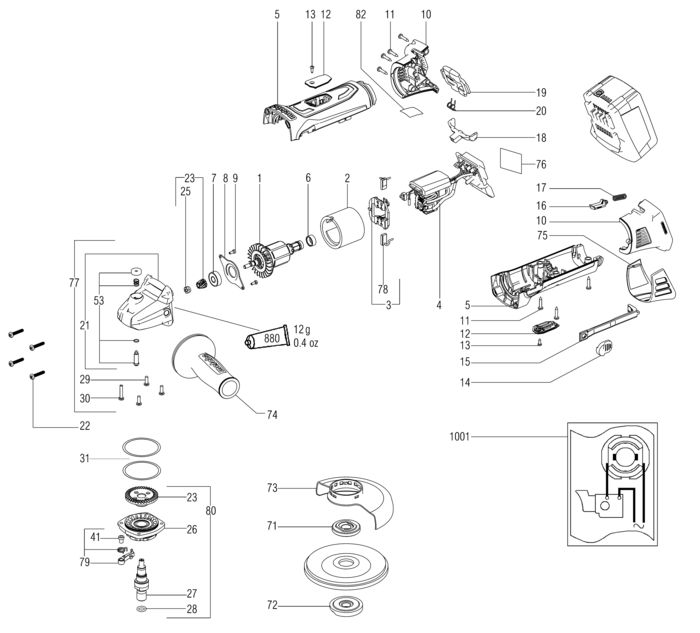

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Armature compl.,18 V (310010110) 26730 RON
2 1 1 Field coil (311011150) 2848 RON
3 1 1 Brush holder module compl.,18 V (316049390) 7157 RON
4 1 1 Electronic unit,18V (343082750) 41718 RON
5 1 1 Motor housing (343398580) 955 RON
6 1 1 Rubber bushing (344098740) 446 RON
7 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
10 1 1 Akkuschalen Schwarz (343430800) 3689 RON
11 1 7 Self-tap. fill. h. screw (141113180) 446 RON
12 1 2 Brush cover (343398600) 669 RON
13 1 2 Self-tapp. fill. h. screw (141119900) 446 RON
14 1 1 Switch slide,H/L (343397810) 446 RON
15 1 1 Switch rod (343398610) 669 RON
16 1 1 Index bolt (343398620) 669 RON
17 1 1 Pressure spring (342003030) 446 RON
18 1 1 Locking piece (343430520) 669 RON
19 1 1 Switch slide (343430530) 781 RON
20 1 1 Pressure spring (342003030) 446 RON
21 1 1 Gear housing compl. (316046070) Indisponibil Indisponibil
22 1 4 Self-tap. fill. h. screw (141117060) 781 RON
23 1 1 Bevel gear with pinion (316049540) 26730 RON
25 1 1 Hexagon nut w.recess (341102260) 105 RON
26 1 1 Flange with seal (343430550) 2459 RON
27 1 1 Spindle M14 (341161150) 3018 RON
28 1 1 O-ring (143192540) 446 RON
29 1 3 Fillister head screw (141124090) 446 RON
30 1 1 Fillister head screw (141123920) 446 RON
31 1 2 Compensating washer (339011860) Indisponibil Indisponibil
41 1 1 Bearing sleeve (341005860) 781 RON
53 1 1 Spindle stop compl. (316040610) 1340 RON
71 1 1 Clamping flange (341031160) 488 RON
72 1 1 Quick nut,M14 (316047380) 15993 RON
73 1 1 Wheel guard,D 125 (339203490) Indisponibil Indisponibil
74 1 1 Side support handle compl. (316046590) Indisponibil Indisponibil
75 1 1 Filter (343398890) 2459 RON
76 1 1 Rating plate (338055470) 446 RON
77 1 1 Gear housing compl. (316047570) 13756 RON
78 1 1 Carbon brush set COD VECHI 316047580 (316060540) 3689 RON
79 1 1 Clamping lever compl. (316047590) 5479 RON
80 1 1 Flange w.pinion (316048830) 21361 RON
82 1 1 Indication label (338122320) 446 RON
880 1 1 Grease 100G (344130920) 5926 RON
1001 1 1 338505280 - Indisponibil
