W 18 LTX 115 - 02170000 - -
[02170000]
W 18 LTX 115 - 02170000 - -
Click pentru a mari
Imagini suplimentare
W 18 LTX 115 - 02170000 - -
Click pentru a mari

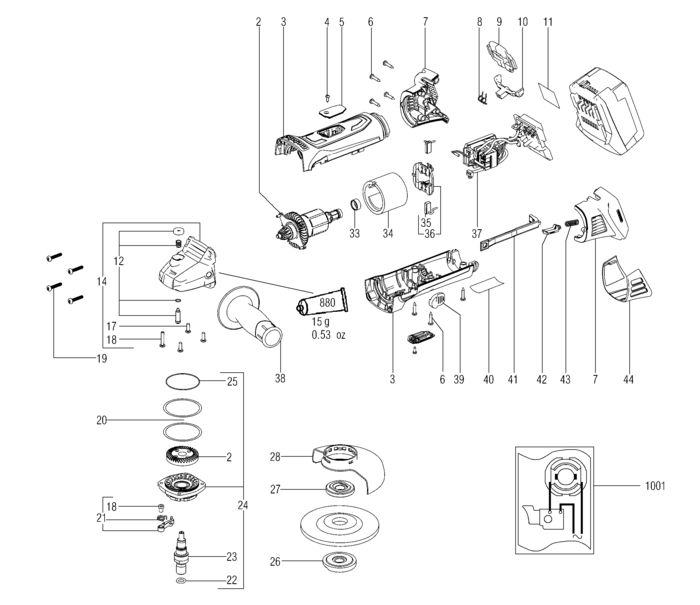

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 Gear-box with Armature cpl. (316047560) 30980 RON
3 1 1 Motor housing (343398580) 955 RON
4 1 2 Self-tapp. fill. h. screw (141119900) 446 RON
5 1 2 Brush cover (343398600) 669 RON
6 1 7 Self-tap. fill. h. screw (141113180) 446 RON
7 1 1 Housing (343430690) 3689 RON
8 1 1 Pressure spring (342003030) 446 RON
9 1 1 Switch slide (343430530) 781 RON
10 1 1 Locking piece (343430520) 669 RON
11 1 1 Rating plate (338054350) 446 RON
12 1 1 Spindle stop compl. (316040610) 1340 RON
14 1 1 Gear housing compl. (316047570) 13756 RON
17 1 3 Fillister head screw (141124090) 446 RON
18 1 2 Fillister head screw (141123920) 446 RON
19 1 4 Self-tap. fill. h. screw (141117060) 781 RON
20 1 2 Compensating washer (339011860) Indisponibil Indisponibil
21 1 1 Clamping lever compl. (316047590) 5479 RON
22 1 1 O-ring (143192540) 446 RON
23 1 1 Spindle M14 (341161150) 3018 RON
24 1 1 Gear flange,M14 (316047960) 10288 RON
25 1 1 O-ring 48 x 1 (344097550) Indisponibil Indisponibil
26 1 1 Quick nut,M14 (316047380) 15993 RON
27 1 1 Clamping flange (341031160) 488 RON
28 1 1 Wheel guard,D 115 (339203480) 11519 RON
33 1 1 Rubber bushing (344098740) 446 RON
34 1 1 Field coil (311011150) 2848 RON
35 1 1 Carbon brush set COD VECHI 316047580 (316060540) 3689 RON
36 1 1 Brush holder module compl.,18 V (316049390) 7157 RON
37 1 1 Electronic unit,18V (343082750) 41718 RON
38 1 1 Handle cpl. (314000540) 488 RON
39 1 1 Switch slide,H/L (343397810) 446 RON
40 1 1 399999990 - Indisponibil
41 1 1 Switch rod (343398610) 669 RON
42 1 1 Index bolt (343398620) 669 RON
43 1 1 Pressure spring (342003030) 446 RON
44 1 1 Filter (343398890) 2459 RON
880 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
1001 1 1 338505280 - Indisponibil
