S 18 LTX 115 - 00154000 - -
[00154000]
S 18 LTX 115 - 00154000 - -
Click pentru a mari
Imagini suplimentare
S 18 LTX 115 - 00154000 - -
Click pentru a mari

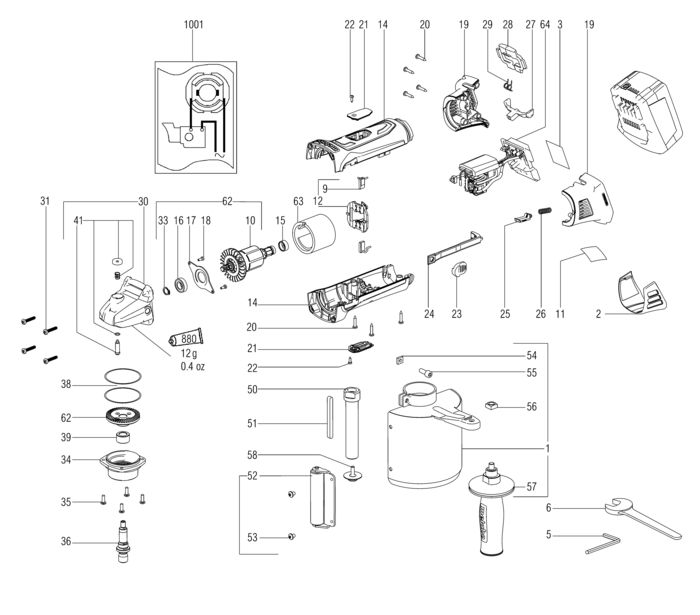

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Wheel guard cpl. (339202910) 59166 RON
2 1 1 Filter (343398890) 2459 RON
3 1 1 Rating plate (338055490) 446 RON
5 1 1 Cranked wrench key (344161520) 781 RON
6 1 1 Open-end spanner (344161300) 2459 RON
9 1 1 Carbon brush set COD VECHI 316047580 (316060540) 3689 RON
10 1 1 Armature compl.,18 V (310010390) 59166 RON
11 1 1 Indication label (338122320) 446 RON
12 1 1 Brush holder module compl.,18 V (316049390) 7157 RON
14 1 1 Motor housing (343398580) 955 RON
15 1 1 Rubber bushing (344098740) 446 RON
16 1 1 Ball bearing,10X 22X 6 (143115370) 3689 RON
17 1 1 Fixed bearing cover (315417490) 669 RON
18 1 2 Fillister head screw (141123990) 446 RON
19 1 1 Akkuschalen Schwarz (343430800) 3689 RON
20 1 7 Self-tap. fill. h. screw (141113180) 446 RON
21 1 2 Brush cover (343398600) 669 RON
22 1 2 Self-tapp. fill. h. screw (141119900) 446 RON
23 1 1 Switch slide,H/L (343397810) 446 RON
24 1 1 Switch rod (343398610) 669 RON
25 1 1 Index bolt (343398620) 669 RON
26 1 1 Pressure spring (342003030) 446 RON
27 1 1 Locking piece (343430520) 669 RON
28 1 1 Switch slide (343430530) 781 RON
29 1 1 Pressure spring (342003030) 446 RON
30 1 1 Gear housing compl. (316048730) 2848 RON
31 1 4 Self-tap. fill. h. screw (141117060) 781 RON
33 1 1 Retaining ring (141180040) 446 RON
34 1 1 Flange complete (316049400) 18341 RON
35 1 4 Fillister head screw (141124090) 446 RON
36 1 1 Spindle,M 14 (341604240) 10288 RON
38 1 2 Compensating washer (339011880) 105 RON
39 1 1 Spacer sleeve (341013120) 4249 RON
41 1 1 Spindle stop compl. (316040610) 1340 RON
50 1 1 Arbor M14 (341603930) Indisponibil Indisponibil
51 1 2 Adjusting spring (141156230) Indisponibil Indisponibil
52 1 1 Roller holder cpl. (316039040) 21361 RON
53 1 2 Fillister head screw (141110570) 446 RON
54 1 1 Square nut (141131370) 446 RON
55 1 1 Cap screw (141113850) 781 RON
56 1 1 Square nut (141131020) 781 RON
57 1 1 Side support handle compl. (316046590) Indisponibil Indisponibil
58 1 1 Screw cpl. (316042950) 5479 RON
62 1 1 Armature w. bevel gear (316048800) 93951 RON
63 1 1 Field coil (311011150) 2848 RON
64 1 1 Electronic unit,18V (343082750) 41718 RON
880 1 1 Grease 100G (344130920) 5926 RON
1001 1 1 338505280 - Indisponibil
