Top » Piese de schimb » PIESE METABO » 00321000

BF 18 LTX 90 - 00321000 - -
[00321000]
BF 18 LTX 90 - 00321000 - -
Click pentru a mari
Imagini suplimentare
BF 18 LTX 90 - 00321000 - -
Click pentru a mari

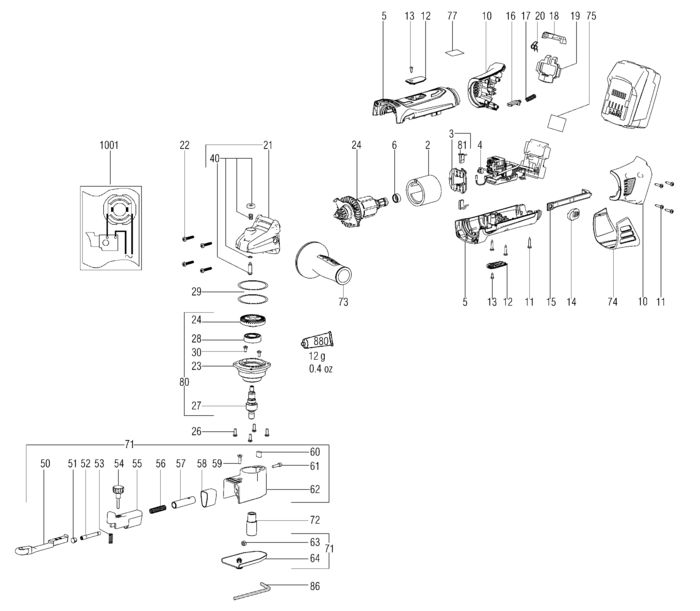

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 Field coil (311011150) 2848 RON
3 1 1 Brush holder module compl.,18 V (316049390) 7157 RON
4 1 1 Electronic unit,18V (343082750) 41718 RON
5 1 1 Motor housing (343398580) 955 RON
6 1 1 Rubber bushing (344098740) 446 RON
10 1 1 Akkuschalen Schwarz (343430800) 3689 RON
11 1 7 Self-tap. fill. h. screw (141113180) 446 RON
12 1 2 Brush cover (343398600) 669 RON
13 1 2 Self-tapp. fill. h. screw (141119900) 446 RON
14 1 1 Switch slide,H/L (343397810) 446 RON
15 1 1 Switch rod (343398610) 669 RON
16 1 1 Index bolt (343398620) 669 RON
17 1 1 Pressure spring (342003030) 446 RON
18 1 1 Locking piece (343430520) 669 RON
19 1 1 Switch slide (343430530) 781 RON
20 1 1 Pressure spring (342003030) 446 RON
21 1 1 Gear housing compl. (316046070) Indisponibil Indisponibil
22 1 4 Self-tap. fill. h. screw (141117060) 781 RON
23 1 1 Flange (315202550) 7157 RON
24 1 1 Gear-box with Armature cpl. (316047560) 30980 RON
26 1 4 Fillister head screw (141124090) 446 RON
27 1 1 Spindle,M 10 (341604210) 11519 RON
28 1 1 Ball bearing, 15x32x9 (143113370) 5926 RON
29 1 2 Compensating washer (339011860) Indisponibil Indisponibil
30 1 2 Fill. head screw(DIN 7985) (141119570) 446 RON
40 1 1 Spindle stop compl. (316040610) 1340 RON
50 1 1 Arm (341148090) 49212 RON
51 1 1 Plug (344098770) 3689 RON
52 1 1 Guide rod (341515510) 34448 RON
53 1 1 Pressure spring (342003670) 3689 RON
54 1 1 Shift knob (341102270) 13756 RON
55 1 1 Tool holder (315417450) 68673 RON
56 1 1 Pressure spring (342003680) 3689 RON
57 1 1 Sleeve (341005890) 30980 RON
58 1 1 Cover (341148110) 2848 RON
59 1 1 Countersunk screw,N 8-32 UNCx1/2" (341704530) 669 RON
60 1 1 Clamping piece (344600810) 19236 RON
61 1 1 Cap screw (141113600) 781 RON
62 1 1 Housing (341148120) 127394 RON
63 1 1 Hexagonal nut (141130090) 446 RON
64 1 1 Cover compl. (316047070) 54357 RON
71 1 1 316046100 - Indisponibil
72 1 1 Driving roller (341201070) 8275 RON
73 1 1 Side support handle compl. (316046590) Indisponibil Indisponibil
74 1 1 Filter (343398890) 2459 RON
75 1 1 Rating plate (338055480) 446 RON
77 1 1 Indication label (338122320) 446 RON
80 1 1 Flange compl.,M10 (316048820) 26730 RON
81 1 1 Carbon brush set COD VECHI 316047580 (316060540) 3689 RON
86 1 1 Hexagonal key (344161540) 781 RON
880 1 1 Grease 100G (344130920) 5926 RON
1001 1 1 338505280 - Indisponibil
