Top » Piese de schimb » PIESE METABO » 00192000

RB 18 LTX 60 - 00192000 - EU 230V
[00192000]
RB 18 LTX 60 - 00192000 - EU 230V
Click pentru a mari
Imagini suplimentare
RB 18 LTX 60 - 00192000 - EU 230V
Click pentru a mari

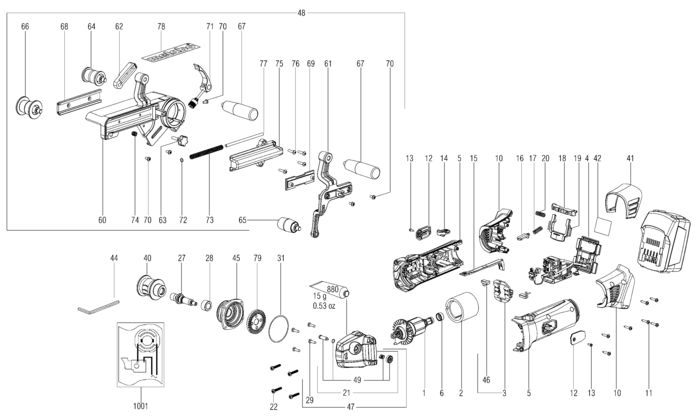

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Gear-box with Armature cpl.,18 V (316051440) 68673 RON
2 1 1 Field coil (311011150) 2848 RON
3 1 1 Brush holder module compl.,18 V (316049390) 7157 RON
4 1 1 Electronic unit,18V (343082750) 41718 RON
5 1 1 Motor housing (343398580) 955 RON
6 1 1 Rubber bushing (344098740) 446 RON
10 1 1 Akkuschalen Schwarz (343430800) 3689 RON
11 1 7 Self-tap. fill. h. screw (141113180) 446 RON
12 1 2 Brush cover (343398600) 669 RON
13 1 2 Self-tapp. fill. h. screw (141119900) 446 RON
14 1 1 Switch slide,H/L (343397810) 446 RON
15 1 1 Switch rod (343398610) 669 RON
16 1 1 Index bolt (343398620) 669 RON
17 1 1 Pressure spring (342003030) 446 RON
18 1 1 Locking piece (343430520) 669 RON
19 1 1 Switch slide (343430530) 781 RON
20 1 1 Pressure spring (342003030) 446 RON
21 1 1 Gear housing compl. (316049830) 13756 RON
22 1 4 Self-tap. fill. h. screw (141117060) 781 RON
27 1 1 Spindle,M 14 (341604240) 10288 RON
28 1 1 Spacer sleeve (341013120) 4249 RON
29 1 4 Fillister head screw (141124090) 446 RON
31 1 2 Compensating washer (339011880) 105 RON
40 1 1 Driving roller (343430650) 24046 RON
41 1 1 Filter (343398890) 2459 RON
42 1 1 Rating plate (338055500) 446 RON
44 1 1 Hexagonal key (344161510) 781 RON
45 1 1 Flange complete (316049400) 18341 RON
46 1 1 Carbon brush set COD VECHI 316047580 (316060540) 3689 RON
47 1 1 Gear housing compl. (316050220) 18341 RON
48 1 1 Wraparound Tube Sander attachment (316048760) 9821 RON
49 1 1 Spindle stop compl. (316040610) 1340 RON
60 1 1 Rack (315417720) 2848 RON
61 1 1 Linkage (315417760) 11519 RON
62 1 1 Guide plate (339160950) 5479 RON
63 1 1 Star knob screw (341112820) 105 RON
64 1 1 Guide roller compl. (316049930) 7157 RON
65 1 1 Guide roller compl. (316049920) 7157 RON
66 1 1 Guide roller compl. (316050030) 10288 RON
67 1 2 Handle (343430710) 5479 RON
68 1 1 Guide rail (341148380) 8275 RON
69 1 1 Sliding carriage (341148390) 11519 RON
70 1 5 Fillister head screw (141119850) 446 RON
71 1 1 Eccenter lever (341161350) 3689 RON
72 1 1 Washer (141150920) 446 RON
73 1 1 Pressure spring (342003780) 446 RON
74 1 1 Pressure spring (342003790) 446 RON
75 1 1 Covering hood (343430670) 1564 RON
76 1 4 Fill. head screw(DIN 7985) (141119440) 446 RON
77 1 1 Guide rod (341059890) 1340 RON
78 1 1 Metabo plate (338123390) 1340 RON
880 1 1 Grease 100G (344130920) 5926 RON
1001 1 1 338505280 - Indisponibil
