LPV 551/10/90 DF - 0010055130 11 - 3 / 400V/50Hz
[0010055130 11]
LPV 551/10/90 DF - 0010055130 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
LPV 551/10/90 DF - 0010055130 11 - 3 / 400V/50Hz
Click pentru a mari
LPV 551/10/90 DF - 0010055130 11 - 3 / 400V/50Hz
Click pentru a mari

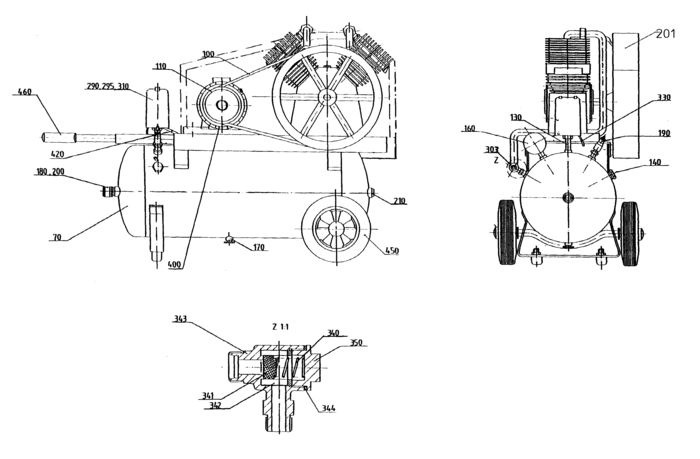

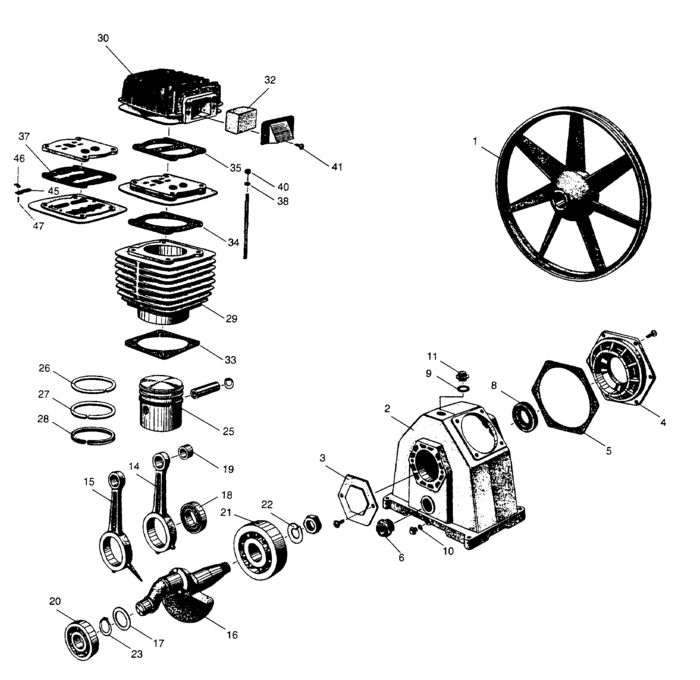

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FLYWHEEL RD 350 ET (81310172770) 54357 RON
2 1 1 1310172789 - Indisponibil
3 1 1 1310172800 - Indisponibil
4 1 1 1310172819 - Indisponibil
5 1 1 PACKING, BEARING CAP ET (81319172820) 105 RON
6 1 1 OIL SIGHT GLASS DN 26 ET (81319172838) 5479 RON
8 1 1 ROTARY SHAFT SEAL 35X52X7 ET (87635172856) 2459 RON
9 1 1 7632172863 - Indisponibil
10 1 1 7631172878 - Indisponibil
11 1 1 6109172888 - Indisponibil
14 1 1 CONNECTING ROD ET (81319172900) 21361 RON
15 1 1 CONNECTING ROD MIT STIFT /ET (81319172919) 24046 RON
16 1 1 1315172930 - Indisponibil
17 1 1 WASHER RD30/45X1,5 ET (81315172957) 4249 RON
18 1 1 CYLINDER ROLLER BEARING NU 4906 (87101172966) 4442 RON
19 1 1 BUSHING 15/20X16 ET (81315172973) 1564 RON
20 1 1 DEEP GROOVE BALL BEARING 25X62X17 6305 / (87100172989) 10288 RON
21 1 1 DEEP GROOVE BALL BEARING 35X80X21 6307 (87100172997) 21361 RON
23 1 1 6400173018 - Indisponibil
25 1 1 1319173036 - Indisponibil
26 1 1 PISTON RING (SQUARE RING) RD 70X2 RECHTE (81319173044) 488 RON
27 1 1 PISTON RING (WITH LUG) RD 70X2 NASENRING (81319173052) 488 RON
28 1 1 DBLE BEV SLOTTED OIL CTRL RING RD 70X4 E (81319173060) 5926 RON
29 1 1 CYLINDER WITH SLEEVE ET (81310173076) 88582 RON
30 1 1 CYLINDER HEAD ET (81319173087) 3698 RON
32 1 1 AIR FILTER ELEMENT ET (87825173107) 781 RON
33 1 1 CYLINDER FOOT GASKET ET (81319173117) 781 RON
34 1 1 CYLINDER GASKET ET (81319173125) 2124 RON
35 1 1 CYLINDER HEAD GASKET ET (81319173133) 2124 RON
37 1 1 PACKING, VALVE PLATE ET (81319173150) 2124 RON
38 1 1 WAVE SPRING WASHER A 8 VERZ. (86302027860) 446 RON
40 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
41 1 1 86172015687 - Indisponibil
45 1 1 FLAP VALVE ET (81319173176) 3689 RON
46 1 1 FRICTION SPRING ET (87052173188) 781 RON
47 1 1 PARALLEL PIN 2 h8X6 ET (86500173198) 446 RON
70 1 1 1314080390 - Indisponibil
100 1 1 V-BELT 13X1372 LI (87230072269) 7157 RON
110 1 1 7240124305 - Indisponibil
130 1 1 7812185335 - Indisponibil
140 1 1 TEST FLANGE R 3/8" (87818026352) 7157 RON
160 1 1 7823010219 - Indisponibil
170 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
180 1 1 BALL VALVE 3/4" X 3/4" (87830026279) 10288 RON
190 1 1 SAFETY VALVE R 1/4" 11 BAR M.RED.1/4"X1/ (81001615137) 21361 RON
200 1 1 REDUCER NIPPLE 2"X3/4" NR.241 / VERZ. (87871043030) 7157 RON
201 1 1 PROTECTIVE GRATING (81001408867) 68673 RON
210 1 1 THREADED PLUG 2" NR.290 / VERZ. (87871056409) 5479 RON
290 1 1 88101190820 - Indisponibil
295 1 1 MOTOR PROTECTION RELAY 4-7 A (88103025932) 34448 RON
303 1 1 CHECK VALVE, ELBOW TYPE R 1/2"X RD15 ET (81001014290) 21361 RON
310 1 1 7834190839 - Indisponibil
330 1 1 PLASTIC HOSE BLACK RD 6X1X1000 SCHWARZ (87851190842) 2124 RON
340 1 1 PRESSURE SPRING RD 1XDM 15X40 ROSTFREI (87051052638) 446 RON
341 1 1 7631057092 - Indisponibil
342 1 1 CAGE RD 27,5X26 (81311052310) 105 RON
343 1 1 VALVE BODY R 1/2" AG X RD 15 (81310051485) 955 RON
344 1 1 1311052620 - Indisponibil
350 1 1 THREADED PLUG C M30X1,5 (86109055202) 8275 RON
400 1 1 1001002402 - Indisponibil
420 1 1 CABLE, RUBBER JACKET,WITH PLUG A=CEE16A (88402415682) 2848 RON
450 1 1 WHEEL, PNEUMATIC TYRE RD 260/85 NABE 20X (87270118016) 21361 RON
460 1 1 HANDLE BAR (81001144959) 955 RON
7000 1 1 DOUBLE NIPPLE R 3/4" VERZINKT (87806069870) 1564 RON
7001 1 1 PACKING, AFTERCOOLER ET (81319151431) 5479 RON
7002 1 1 BRACKET BL 2,00X86X100,5 (81312410873) 8275 RON
7005 1 1 7820009228 - Indisponibil
7006 1 1 ELBOW TAP CONNECTOR 1/4"X8 ET (87871620223) 8275 RON
7007 1 1 COPPER PIPE RD 18X1X200 GEBOGEN (81317606091) 3689 RON
