Top » Piese de schimb » PIESE METABO » 0230038007 10

LPV 380/10/20 W - 0230038007 10 - EU 230V
[0230038007 10]
LPV 380/10/20 W - 0230038007 10 - EU 230V
Click pentru a mari
Imagini suplimentare
LPV 380/10/20 W - 0230038007 10 - EU 230V
Click pentru a mari
LPV 380/10/20 W - 0230038007 10 - EU 230V
Click pentru a mari

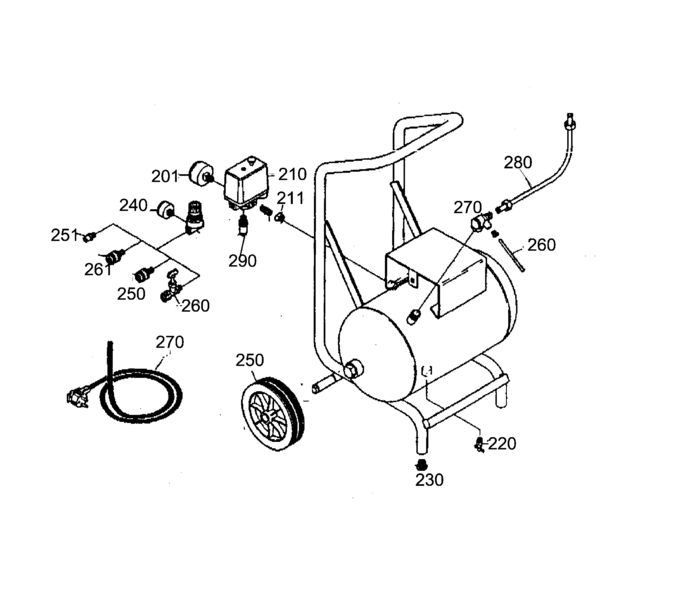

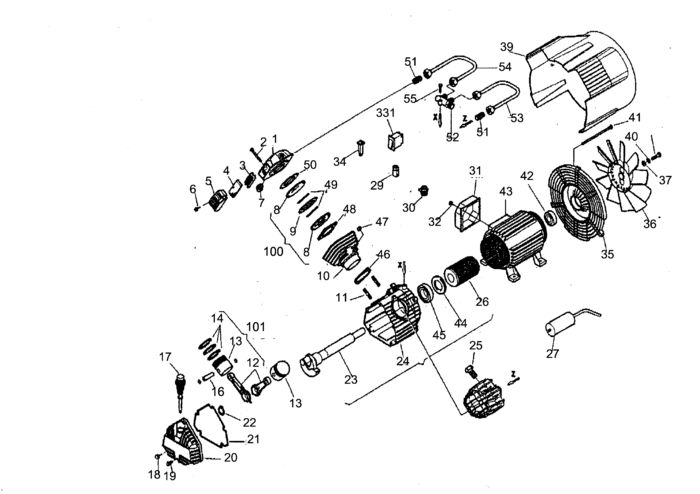

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CYLINDER HEAD ET (81313632098) 24046 RON
3 1 1 1311626813 - Indisponibil
4 1 1 AIR FILTER ELEMENT ET (87825626799) 781 RON
5 1 1 1311626805 - Indisponibil
7 1 1 VALVE NA 1,7 BAR / 3/8"A ET (81319634718) 488 RON
8 1 1 1310632178 - Indisponibil
9 1 1 GASKET KIT ET (81319632154) 7157 RON
10 1 1 CYLINDER ET (81319649707) 54357 RON
13 1 1 PISTON SET ET (81319632162) 46975 RON
16 1 1 1363631963 - Indisponibil
17 1 1 DIP STICK ET (81313632128) 1340 RON
20 1 1 COVER CRANKCASE ET (81313632144) 21361 RON
21 1 1 GASKET ET (81319632138) 190 RON
27 1 1 CAPACITOR 50uF/450V M.KABEL /ET (88050624472) 34448 RON
35 1 1 FAN COVER ET (81313632055) 33553 RON
36 1 1 FAN WING ET (81319632049) 18341 RON
39 1 1 MOTOR COVER MOTOR /ET (81311626821) 15993 RON
43 1 1 8012632062 - Indisponibil
46 1 1 GASKET KIT ET (81319632154) 7157 RON
48 1 1 GASKET KIT ET (81319632154) 7157 RON
49 1 1 GASKET KIT ET (81319632154) 7157 RON
50 1 1 GASKET KIT ET (81319632154) 7157 RON
53 1 1 PRESSURE LINE ET (81313632071) 955 RON
54 1 1 PRESSURE LINE ET (81313632080) 955 RON
100 1 1 VALVE PLATE ASSEMBLY ET (81319634734) 26730 RON
101 1 1 PISTON SET ET (81319632162) 46975 RON
210 1 1 AUTOM. PRESSURE CONTROL SWITCH 6-8 BAR 2 (88101149774) 2848 RON
230 1 1 RUBBER FOOT ET (87057631362) 190 RON
250 1 1 WHEEL ET (87270631996) 8275 RON
260 1 1 PRESSURE LINE RD 6X700 ET (81319632022) 3689 RON
270 1 1 CHECK VALVE 1/2"AX1/2"A LINKS/ET (87831662594) 11519 RON
290 1 1 SAFETY VALVE ET (87833632030) 5926 RON
7000 1 1 CAPACITOR 30?F ET (88050654495) 108379 RON
7001 1 1 CARTON 530X470X840 POWER 300/380 ET (84810624545) 26730 RON
