KHE 2650 - 00658001 - EU 230V
[00658001]
KHE 2650 - 00658001 - EU 230V
Click pentru a mari
Imagini suplimentare
KHE 2650 - 00658001 - EU 230V
Click pentru a mari

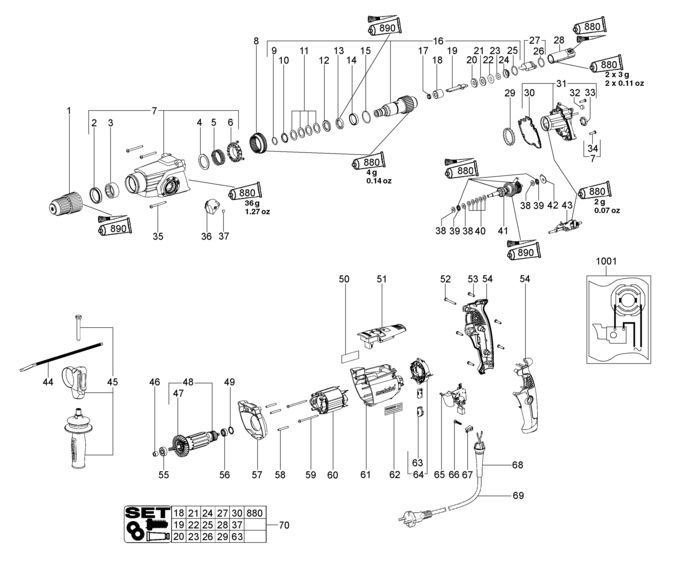

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Adaptor SDS -PLUS (316051000) 24046 RON
2 1 1 Shaft sealing ring (143195160) 3689 RON
3 1 1 Needle sleeve,30x37x16 (143115090) 3018 RON
4 1 1 Washer (339007150) 781 RON
5 1 1 Pressure spring,34,7x38,3x1,8x27,7 (342003490) 446 RON
6 1 1 Retaining ring (343397820) 446 RON
7 1 1 Gear housing compl. (316047840) 2848 RON
8 1 1 Sliding block (340004030) 3689 RON
9 1 1 Circlip (141156380) 446 RON
10 1 1 Support ring (341013060) 190 RON
11 1 4 Cup spring (342070620) 446 RON
12 1 1 Ratched wheel (341070910) 1340 RON
13 1 1 Ratched wheel (341070610) 105 RON
14 1 1 Support ring (343431000) 446 RON
15 1 1 Circlip (141156360) 446 RON
16 1 1 Drill driving sleeve cpl. (316050710) 4442 RON
17 1 1 Shaft sealing ring (143195200) 105 RON
18 1 1 Bushing (341006030) 2459 RON
19 1 1 Piston (341210120) 4249 RON
20 1 1 Support ring (341013180) 1340 RON
21 1 1 O-ring (143195150) 781 RON
22 1 1 Washer (339007190) 446 RON
23 1 1 O-ring (143195210) 446 RON
24 1 1 Catching sleeve (341058950) 1564 RON
25 1 1 Circlip (141181840) 446 RON
26 1 1 Sealing ring (344093140) Indisponibil Indisponibil
27 1 1 Striker compl. (316043350) 955 RON
28 1 1 exciter sleeve compl. (341058680) 955 RON
29 1 1 Ball holder (320050480) Indisponibil Indisponibil
30 1 1 Seal (344098640) 669 RON
31 1 1 Gear flange cpl. (316047860) 18341 RON
32 1 1 Felt seal (344070670) 446 RON
33 1 1 Rubber buffer (344095920) 446 RON
34 1 2 Filister head screw (141123400) 446 RON
35 1 3 Self-tap. fill. h. screw (141123610) 446 RON
36 1 1 Control knob compl. (316044470) 2459 RON
37 1 1 Seal (343376750) 781 RON
38 1 3 Washer (339129610) 446 RON
39 1 2 Axial needle bearing (143114280) 2459 RON
40 1 5 Cup spring (141152550) 781 RON
41 1 1 Pinion shaft compl. (316047880) 33553 RON
42 1 1 guide sheet (339134350) 669 RON
43 1 1 Shift element compl. (316044460) 7157 RON
44 1 1 Depth stop (343398230) 669 RON
45 1 1 Side support handle compl. (314001230) Indisponibil Indisponibil
46 1 1 Sealing ring (343376040) 781 RON
47 1 1 Fan (330001820) 105 RON
48 1 1 Armature compl.,230 V (310009260) 26730 RON
49 1 1 O-ring (143192430) Indisponibil Indisponibil
50 1 1 Rating plate (338054940) 446 RON
51 1 1 Electronic unit,230V 50/60Hz (343082280) 21361 RON
52 1 1 Self-tap. fill. h. screw (141116990) 781 RON
53 1 5 Self-tap. fill. h. screw (141116020) 781 RON
54 1 1 Pistol grip 2-part, gummed (343398530) 4249 RON
55 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
56 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
57 1 1 Intermediate flange (343399770) 105 RON
58 1 3 Cylindrical pin (341520230) 446 RON
59 1 2 Self-tap. fill. h. screw (141118260) 446 RON
60 1 1 Field coil 230V (311009810) Indisponibil Indisponibil
61 1 1 Motor housing (315013250) Indisponibil Indisponibil
62 1 1 399999990 - Indisponibil
63 1 1 Brush holder module,230V cod vechi 316048850 (316051960) Indisponibil Indisponibil
64 1 1 Carbon brush set,230 V (316046970) 8275 RON
65 1 1 Poti switch (343409250) 5926 RON
66 1 1 Self-tap. fill. h. screw (141117060) 781 RON
67 1 1 Cable clip (343362490) 781 RON
68 1 1 Cable sleeve (343394300) 781 RON
69 1 1 Cable with plug (344486730) 8275 RON
70 1 1 Maintenance kit (316050740) 39481 RON
880 1 1 Grease FG 126 (344130800) Indisponibil Indisponibil
890 1 1 Tube Grease,50g Klueber Microlube GL 261 (344131210) Indisponibil Indisponibil
1001 1 1 338505140 - Indisponibil
