Top » Piese de schimb » PIESE METABO » 00189000

KHA 24 - 00189000 - -
[00189000]
KHA 24 - 00189000 - -
Click pentru a mari
Imagini suplimentare
KHA 24 - 00189000 - -
Click pentru a mari

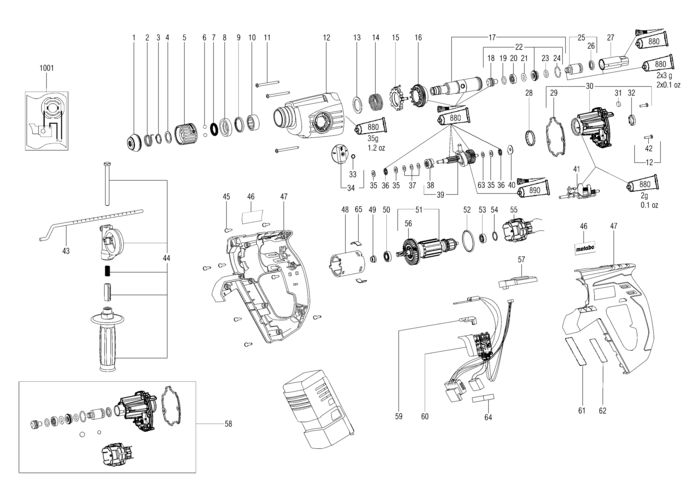

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Rubber cap (343430090) 105 RON
2 1 1 Torsion spring (342021040) 781 RON
3 1 1 Retaining ring (141155460) 446 RON
4 1 1 Washer (141155470) 446 RON
5 1 1 Adjusting ring (343374550) Indisponibil Indisponibil
6 1 2 Ball (143120320) 669 RON
7 1 1 Tension-spring ring (342001560) Indisponibil Indisponibil
8 1 1 Spacer ring (343361690) Indisponibil Indisponibil
9 1 1 Shaft sealing ring (143194910) Indisponibil Indisponibil
10 1 1 Needle sleeve (143113830) 8275 RON
11 1 3 Self-tap. fill. h. screw (341701470) 446 RON
12 1 1 Gear housing cpl. (316031850) 26730 RON
13 1 1 Supporting disc (141153750) 781 RON
14 1 1 Pressure spring (342002690) 190 RON
15 1 1 Retaining ring (343374440) 446 RON
16 1 1 Sliding sleeve cpl. (316031500) 5926 RON
17 1 1 Drill driving sleeve cpl. (316035210) 34448 RON
18 1 1 Intermediate striker cpl. (316031890) 488 RON
19 1 1 O-ring (143192400) 781 RON
20 1 1 Supporting ring (341012610) 1564 RON
21 1 1 O-ring (143193910) Indisponibil Indisponibil
22 1 1 Catching sleeve cpl. (316031940) 8275 RON
23 1 1 O-ring (143193920) 2459 RON
24 1 1 Circlip (141181840) 446 RON
25 1 1 Striker cpl. (316040790) 7157 RON
26 1 1 Sealing ring (344093140) Indisponibil Indisponibil
27 1 1 Exciter sleeve compl. (341058160) 955 RON
28 1 1 Ball holder (320050480) Indisponibil Indisponibil
29 1 1 Seal (344095570) 781 RON
30 1 1 Gear flange cpl. (316032580) 24046 RON
31 1 1 Felt seal (344070670) 446 RON
32 1 1 Rubber buffer (344095920) 446 RON
33 1 1 Seal (343376750) 781 RON
34 1 1 Control knob cpl. (316032640) Indisponibil Indisponibil
35 1 3 Washer (339129610) 446 RON
36 1 2 Axial needle bearing (143114280) 2459 RON
37 1 3 Cup spring (141154920) 781 RON
38 1 1 Coupling sleeve (340003220) 3018 RON
39 1 1 Safety clutch compl. (316040770) 49212 RON
40 1 1 Butting sheet (339130980) 446 RON
41 1 1 Switch element cpl.w. rot. Stop (316031370) 488 RON
42 1 2 Fill. head screw(DIN 7985) (141119440) 446 RON
43 1 1 Depth stop (341511630) Indisponibil Indisponibil
44 1 1 Support handle compl.,(anti-vibration) (314001010) 21361 RON
45 1 8 Self-tap. fill. h. screw (141117060) 781 RON
46 1 2 M-Label,08 52x22 (338122160) 446 RON
47 1 1 Housing w.cover (343392500) 24046 RON
48 1 1 Field coil assembly w.field coil (311010480) 26730 RON
49 1 1 Sealing ring (343392640) 781 RON
50 1 1 RI.KU.LA. 10X 22X 6 (143115010) 4249 RON
51 1 1 Armature compl. (310008850) 33553 RON
52 1 1 O-ring (143195110) 446 RON
53 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
54 1 1 O-ring (143192430) Indisponibil Indisponibil
55 1 1 Brush compl. w.bearing clamp (316039820) 15993 RON
56 1 1 Fan w.ring magnet (330001720) 4249 RON
57 1 1 Electronic unit (343080690) 30980 RON
58 1 1 Maintenance kit (316040780) 46975 RON
59 1 1 Switch slide (343392510) 1340 RON
60 1 1 Electronic switch compl. (343408300) 39481 RON
61 1 1 Rating plate (338048000) 446 RON
62 1 1 399999990 - Indisponibil
63 1 1 Washer (141152070) 446 RON
64 1 1 Insert (344103000) 446 RON
65 1 2 Rubber element (344097950) 446 RON
880 1 1 Grease FG 126 (344130800) Indisponibil Indisponibil
890 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338504600 - Indisponibil
