Top » Piese de schimb » PIESE METABO » 0102505034 11

KGT 501 - 0102505034 11 - GB 110V
[0102505034 11]
KGT 501 - 0102505034 11 - GB 110V
Click pentru a mari
Imagini suplimentare
KGT 501 - 0102505034 11 - GB 110V
Click pentru a mari
KGT 501 - 0102505034 11 - GB 110V
Click pentru a mari
KGT 501 - 0102505034 11 - GB 110V
Click pentru a mari
KGT 501 - 0102505034 11 - GB 110V
Click pentru a mari

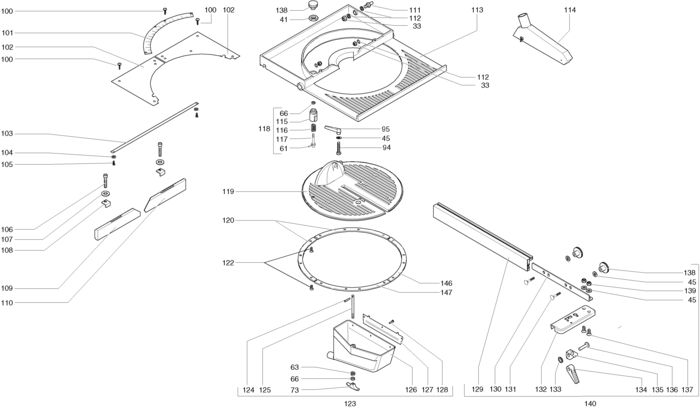

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1010146620 - Indisponibil
2 1 4 HEXAGON THIN NUT (86205029131) 446 RON
3 1 1 CASING, TERMINAL BOX (81381209047) 2124 RON
4 1 1 Fillister head screw (86123002022) 446 RON
5 1 1 STRAIN RELIEF (88242033664) 446 RON
6 1 1 CABLE CLIP (88242051328) 105 RON
7 1 4 Fillister head screw (86123084690) 446 RON
8 1 1 LID, MOTOR TERMINAL BOX (81381209055) 3018 RON
9 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
10 1 1 Fillister head screw (86123002014) 446 RON
11 1 1 Serrated lock washer (86304084020) 446 RON
12 1 1 Parallel key (86721059322) 446 RON
13 1 1 POLY-RIB PULLEY (81385683339) 18341 RON
14 1 1 Washer (86300016705) Indisponibil Indisponibil
15 1 1 Hex head screw (86103680210) 105 RON
16 1 1 POLY-RIB BELT (87233677390) 13756 RON
17 1 1 Gear box cover (81381208350) 5479 RON
18 1 10 Fillister head screw (86172028096) 446 RON
19 1 1 Plug (81381120070) 446 RON
20 1 1 SAW BLADE SPINDLE II (81385212158) 24046 RON
21 1 1 Parallel key (86721074089) 446 RON
22 1 1 Shim (86306132014) 446 RON
23 1 1 Ball bearing (87100010164) 4249 RON
24 1 1 Retaining ring shaft (86401121364) 446 RON
25 1 1 POLY-RIB PULLEY (81385683347) 13756 RON
26 1 1 Washer (86300019984) 446 RON
27 1 1 HEXAGON THIN NUT (86205088367) 446 RON
28 1 5 Hex head screw (86103001127) 446 RON
29 1 1 Holder tension spring (81482680417) 5926 RON
30 1 1 Clamping lever (87006028220) 5926 RON
31 1 1 Spacer sleeve (81485212970) 1340 RON
32 1 1 Pin screw (86168142046) 1564 RON
33 1 15 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
34 1 1 Cup spring (87053016795) 446 RON
35 1 1 Pin screw (86168121243) 781 RON
36 1 2 Fillister head screw (86172028215) 446 RON
37 1 2 Washer (86305002460) 446 RON
38 1 1 ANGLE SCALE 1,00 0-45 GRAD (81142209370) 1340 RON
39 1 1 Pointer (81482208521) 105 RON
40 1 1 SWIVEL CASTING COVER PLATE (81482208254) 105 RON
41 1 2 HEXAGON THIN NUT (86205028038) 446 RON
42 1 2 Washer (86300016713) 446 RON
43 1 2 Grub screw (86161029309) 446 RON
44 1 1 SWIVEL CASTING KGT 501 (81380676016) 33553 RON
45 1 14 Washer Washer cod vechi 86300016365 (141151940) 446 RON
46 1 1 Exhaust nozzle (81381212013) 10288 RON
47 1 3 Fillister head screw (86172100099) 446 RON
48 1 1 MOTOR HEAD AXLE (81385209408) 13756 RON
49 1 1 CHECK NUT (81485209421) 2124 RON
50 1 1 Shim (86306110550) 446 RON
51 1 1 Gear housing (81390208053) 41718 RON
52 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202128341) 446 RON
53 1 2 Tension spring (87051214220) 1340 RON
54 1 2 Cap screw (86127151537) 446 RON
55 1 1 Guide rod,KGT 501 (81010680200) 46975 RON
56 1 1 Washer (86307121334) 446 RON
57 1 1 TURN HANDLE, DEPTH OF CUT RD 49,5X63 (81485208425) 15993 RON
58 1 1 nut (81485208395) 3018 RON
59 1 1 Guide rod (81485208387) 21361 RON
60 1 1 Guide piece (81010130472) 24046 RON
61 1 2 Tightening pin (86503001681) 446 RON
62 1 1 MANDREL RD 12X75 (81485208360) 4249 RON
63 1 2 Pressure spring (87051202931) 446 RON
64 1 1 Grub screw (86163121261) 446 RON
65 1 1 Guide piece (81485208379) 19236 RON
66 1 3 HEXAGON THIN NUT (86205028046) 446 RON
67 1 5 RUBBER-METAL ANTI-VIBR. MOUNT (87058028481) 1340 RON
68 1 3 Grub screw (86162019358) 446 RON
69 1 9 Flange nut (86209114230) 446 RON
70 1 4 Hex head screw (86103121416) 446 RON
71 1 12 Washer (86305002087) 446 RON
72 1 1 Retaining ring shaft (86400121395) 446 RON
73 1 2 Thumb-nut (87005215360) 1564 RON
74 1 1 Inner ring (87104120150) 7157 RON
75 1 1 Needle sleeve (87104120142) 8275 RON
76 1 1 BLADE SHAFT HUB (81385208061) 26730 RON
77 1 2 COLLAR SCREW (81485209480) 105 RON
78 1 1 Bolt (81485208417) 5926 RON
79 1 1 AXLE RD 10X200 (81485208409) 3689 RON
80 1 1 PARALLEL ARM (81380213547) 8275 RON
81 1 1 CAM PLAT SW 17X13 /BOHRG. 6,0 (81485213534) 2459 RON
82 1 1 Cap screw (86121000766) 446 RON
84 1 2 COLLAR SCREW, RETURN SPRING (81485214239) 105 RON
88 1 1 Fillister head screw (86172016683) 446 RON
89 1 1 Gasket (87631209062) 781 RON
90 1 1 Return spring (87051693412) 1340 RON
91 1 2 Zugblech KGT501 (81382693546) 2459 RON
92 1 1 Spacer sleeve (81485412910) 781 RON
93 1 1 Thumb-nut (87005135529) 781 RON
94 1 1 Hex head screw (86103001151) 446 RON
95 1 1 Clamping lever (87006072385) 2459 RON
96 1 4 Washer (86305002486) 446 RON
100 1 10 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
101 1 1 Angle scale,2X0-45 Grad (81142209361) 488 RON
102 1 2 COVER PLATE KGT501N (81382693538) 3018 RON
103 1 1 SCALE 0,50X13X273 0,00-25,30 CM (81142680307) 2459 RON
104 1 2 Washer (86305052335) 446 RON
105 1 2 Fillister head screw (86172091014) 446 RON
106 1 2 Cap screw (86143698341) 669 RON
107 1 4 Washer (86300016357) 446 RON
108 1 2 FENCE CLAMP KGT 501 (81482680298) 3018 RON
109 1 1 Stop left,KGT 501 (81384680271) 5926 RON
110 1 1 FENCE, RIGHT 25,5X36X205 KGT 501 (81384680280) 5926 RON
111 1 1 BOLT (81485208581) 2459 RON
112 1 15 Washer (86300016322) Indisponibil Indisponibil
113 1 1 Table,KGT501N (81380693310) 117663 RON
114 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
115 1 1 SETTING CAM (81485208565) 13756 RON
116 1 1 Pressure spring (87051120161) 446 RON
117 1 1 MANDREL RD 14X59 / M 6X15 (81485208557) 3018 RON
118 1 1 SETTING CAM ASSEMBL (81010130430) 13756 RON
119 1 1 TURNTABLE KGT501 (81380679600) 68673 RON
120 1 2 TURNTABLE RING, FRONT, LE + RI KGT501(N (81380692151) 3689 RON
122 1 16 Countersunk screw (86132175169) 446 RON
123 1 1 Covering hood (81010126491) 11519 RON
124 1 1 CENTRE-GROOVED DOWEL PI (86501145678) 446 RON
125 1 1 BOLT (81485208921) 1340 RON
126 1 1 Covering hood small (81381212480) 488 RON
127 1 1 LOCATING PLATE, BLADE GUARD (81482208912) 3018 RON
128 1 3 BLIND RIVET, MUSHROOM HEAD (86621010474) 446 RON
129 1 1 RIP FENCE EXTRUSION 570 MM (81383158458) 15993 RON
130 1 1 Angle,KGT 501 (81383680260) 13756 RON
131 1 2 Truss head screw (86110031325) 446 RON
132 1 1 Locking element (81382680053) 19236 RON
133 1 1 STARLOCK (87016050711) 446 RON
134 1 1 Cam lock lever (82390205484) 3018 RON
135 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
136 1 1 BOLT WITH HEAD (86632111175) 105 RON
137 1 2 Countersunk screw (86132087995) Indisponibil Indisponibil
138 1 3 Knurled nut (86241125058) 781 RON
139 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
140 1 1 Parallel guide,KGT501/TKHS (81010680243) Indisponibil Indisponibil
146 1 1 TURNTABLE RING, REAR RIGHT KGT501(NEU) (81380692364) 3689 RON
147 1 1 TURNTABLE RING, REAR, LEFT KGT501(NEU) (81380692356) 3689 RON
149 1 2 Cover cap,KGT 501 (81381682397) 446 RON
160 1 1 COVER, SAW BLADE HOUSING (81390208134) 15993 RON
161 1 1 Safety guard,KGT501N (81010693469) 46975 RON
162 1 1 RETRACTABLE BLADE GUARD TEIL 2 KGT501N (81380693506) 24046 RON
163 1 2 Bushing,KGT 501 (81381679728) 1564 RON
164 1 1 Safety guard part1,KGT501N (81380693476) 24046 RON
166 1 1 Cylindrical pin (86502132685) 446 RON
167 1 2 WIRE PIN (81395203130) 781 RON
170 1 1 SAW BLADE HOUSING KGT 501 (81010680170) 46975 RON
171 1 1 BEARING BOLT (81395200611) 1340 RON
174 1 1 LEVER KGT 501 (81482680034) 7157 RON
175 1 1 SAW BLADE HOUSING KGT501 (81380679627) 26730 RON
176 1 1 BLADE GUARD LEVER (82390202787) 5926 RON
177 1 2 Fillister head screw (86172121304) 446 RON
178 1 1 Handle (81381208440) 7157 RON
179 1 2 Self-tapp. counters. screw (86174155800) 446 RON
180 1 1 Shim (86306121349) 446 RON
181 1 1 Hex nut flat (81485208085) 4249 RON
182 1 1 Hex head screw (86103680164) 781 RON
184 1 1 PRESSURE PIECE, RIVING KNIFE (81390208207) 4249 RON
185 1 1 SHIM PLATE BL 0,5X42X35 (81382208982) 105 RON
186 1 1 BLADE COLLAR, OUTER (81485212147) 5479 RON
187 1 1 Cap screw (86121000839) Indisponibil Indisponibil
188 1 1 Flange (81485212139) 955 RON
189 1 1 Retaining ring shaft (86400121387) 446 RON
190 1 1 Shim (86306079067) 446 RON
191 1 6 Flat headed screw (86125121282) 781 RON
192 1 2 WHEEL (81381208482) 446 RON
193 1 1 PLUG-IN BUFFER (82391203906) 446 RON
194 1 1 PRESSURE PLATE, RIVING KNIFE (81482208238) 105 RON
195 1 1 Riving knife small (81482208297) 955 RON
196 1 1 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
197 1 1 Shim (86306121357) 446 RON
198 1 1 Retaining ring shaft (86400121379) 446 RON
199 1 1 RUBBER-METAL ANTI-VIBR. MOUN SEITENTEIL (81010131819) 190 RON
200 1 1 RUBBER-METAL ANTI-VIBR. MOUNT KGT 501 (81010680235) 3018 RON
201 1 2 Hex nut (86200002219) 446 RON
202 1 1 Cap screw (86127059207) 446 RON
203 1 1 8050136176 - Indisponibil
204 1 1 Flange nut (6209110995) 446 RON
207 1 1 ALLEN HEXAGON KEY (89102017894) 446 RON
208 1 1 ALLEN HEXAGON KEY (89102016766) 781 RON
209 1 1 ALLEN HEXAGON KEY (89102043577) 1340 RON
210 1 1 Push stick (81394201630) 3018 RON
211 1 2 Threaded rod (81485676275) 4249 RON
212 1 2 CONNECTING TUBE (81383676262) 11519 RON
213 1 1 LOCK (81010130421) 8275 RON
214 1 1 Coil spring (87051208573) 2459 RON
215 1 1 Side panel right (81380676245) 64311 RON
216 1 2 Bushing side panel (81485208590) 1564 RON
217 1 2 Cap screw (86121016638) 446 RON
218 1 2 SPACER RD20/6X27 (81381677385) 105 RON
219 1 2 Grub screw (86162148646) 781 RON
220 1 1 Side panel left (81380677411) 64311 RON
221 1 8 Rubber foot (87057650880) 781 RON
223 1 4 Hex head screw (86102045619) 446 RON
224 1 1 Switch,110/1/50 (GB) (81010684915) 117663 RON
225 1 1 SWITCH PLATE (81382684845) 8275 RON
227 1 2 Hex head screw (86103015675) 446 RON
228 1 3 Lamellar plug black (81391059264) 446 RON
229 1 1 LEG (81383676475) 11519 RON
230 1 2 Rider,KGT 501 (81383676491) 26730 RON
231 1 8 CAP NUT, SELF-LOCKING (86208073395) 446 RON
232 1 1 ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR (82010200787) 7157 RON
233 1 4 Spacer sleeve (81485676500) 1340 RON
234 1 4 STARLOCK (87016122305) 446 RON
235 1 4 Spring clip (87051653690) 1340 RON
236 1 4 Latch (81482653681) 2459 RON
237 1 1 FASTENING CLAMP (81381655616) 105 RON
238 1 1 Fillister head screw (86172001830) 446 RON
239 1 1 CABLE CLIP (88242051328) 105 RON
240 1 1 Cable clip (88242680333) 781 RON
241 1 1 Latch rear (81482208629) 1340 RON
242 1 1 Feed rod locking (81482208645) 2459 RON
243 1 2 THREADED BOLT (81485208603) 105 RON
245 1 2 HEXAGON FIT BOLT (81485208611) 3018 RON
246 1 2 141180010 - Indisponibil
247 1 1 Latch in the front (81482208637) 1564 RON
248 1 2 LEG (81383653653) 11519 RON
249 1 1 RETAINING CLIP KGT 501 (81382680185) 105 RON
250 1 4 MUSHROOM HEAD RIVET 5X40 (86622653042) 446 RON
251 1 1 LEG (81383676467) 10288 RON
252 1 8 Truss head screw (86110059297) 446 RON
253 1 1 Hex head screw (86143683522) 446 RON
290 1 1 MOTOR COVER, DRIVE SIDE (81380208993) 10288 RON
291 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
292 1 1 Serrated lock washer (86304001745) 446 RON
293 1 1 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
294 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
295 1 1 FAN COVER 120/13 (81331408847) 1340 RON
298 1 2 Fillister head screw w.fill. head screw (86172001805) 446 RON

Conditii Generale
