Top » Piese de schimb » PIESE METABO » 0102501020 10

KGT 500 - 0102501020 10 - EU 230V
[0102501020 10]
KGT 500 - 0102501020 10 - EU 230V
Click pentru a mari
Imagini suplimentare
KGT 500 - 0102501020 10 - EU 230V
Click pentru a mari
KGT 500 - 0102501020 10 - EU 230V
Click pentru a mari
KGT 500 - 0102501020 10 - EU 230V
Click pentru a mari

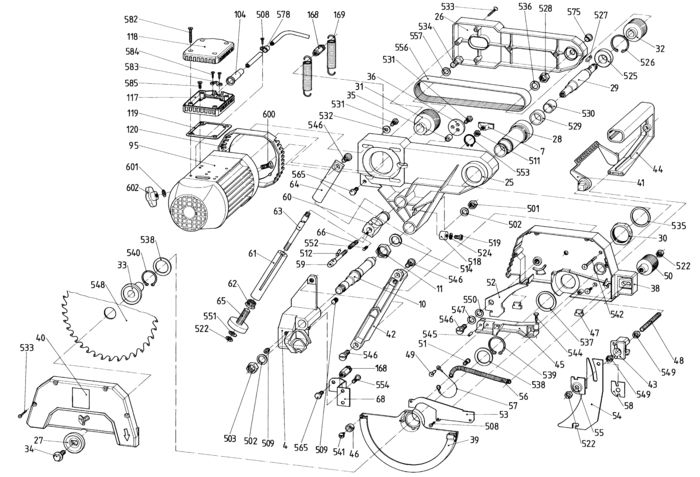

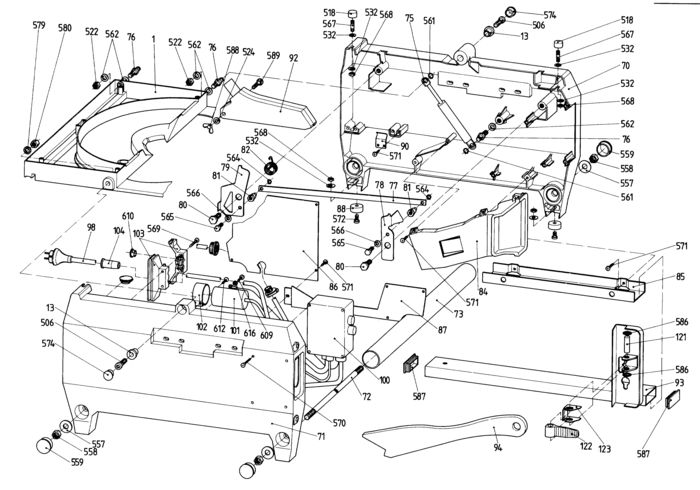

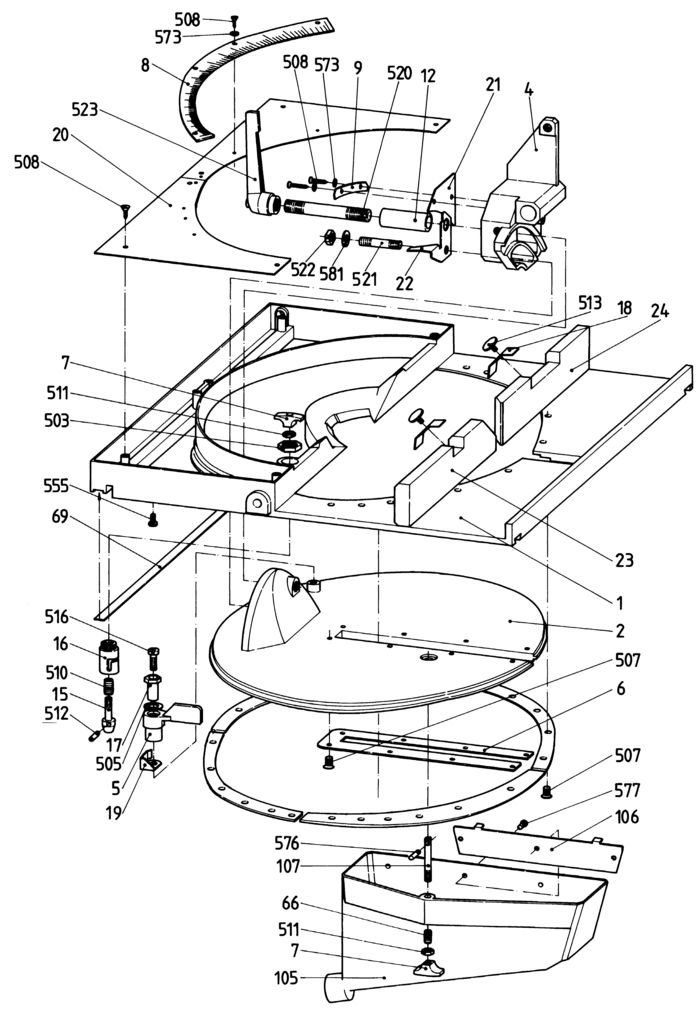

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE KGT500 (81390208010) 197187 RON
2 1 1 TURNTABLE (81390208037) 108379 RON
4 1 1 SWIVEL CASTING (81380213555) 2848 RON
5 1 1 CAMLOCK LEVER (81380208322) 2459 RON
6 1 1 KERF PLATE (81381208512) 3018 RON
7 1 3 7005208658 - Indisponibil
8 1 1 Angle scale,2X0-45 Grad (81142209361) 488 RON
9 1 1 ANGLE SCALE 1,00 0-45 GRAD (81142209370) 1340 RON
10 1 1 MOTOR HEAD AXLE (81385209408) 13756 RON
11 1 1 CHECK NUT (81485209421) 2124 RON
12 1 1 Spacer sleeve (81485212970) 1340 RON
13 1 2 Bushing side panel (81485208590) 1564 RON
15 1 1 MANDREL RD 14X59 / M 6X15 (81485208557) 3018 RON
16 1 1 SETTING CAM (81485208565) 13756 RON
17 1 1 SETTING CAM LOCK SW 17X38 / BOHRG.6,2 (81485208336) 2124 RON
18 1 2 FENCE CLAMP BL 2,99X20X51,5 (81482208700) 781 RON
19 1 1 1482208343 - Indisponibil
20 1 2 COVER PLATE BL 1,5X247X241 (81382208214) 7157 RON
21 1 1 SWIVEL CASTING COVER PLATE (81482208254) 105 RON
22 1 1 Pointer (81482208521) 105 RON
23 1 1 FENCE, LEFT 20X55X250 M 5 LINKS (81384214254) 7157 RON
24 1 1 1384214246 - Indisponibil
25 1 1 Gear housing (81390208053) 41718 RON
26 1 1 Gear box cover (81381208350) 5479 RON
27 1 1 BLADE COLLAR, OUTER (81485212147) 5479 RON
28 1 1 BLADE SHAFT HUB (81385208061) 26730 RON
29 1 1 SAW BLADE SPINDLE II (81385212158) 24046 RON
30 1 1 Hex nut flat (81485208085) 4249 RON
31 1 1 POLY-RIB PULLEY RD 54,5X53 /8 RILLEN MOT (81385208029) 13756 RON
32 1 1 POLY-RIB PULLEY RD 44,5X30 /8 RILLEN S?G (81385208002) 3689 RON
33 1 1 Flange (81485212139) 955 RON
34 1 1 SAW SPINDLE BOLT M 8 LH X20 VERZ. (81395207098) 190 RON
35 1 1 1485208166 - Indisponibil
36 1 1 BELT TENSIONER BL 2,99X?40 (81482208181) 781 RON
38 1 1 SAW BLADE HOUSING (81390208177) 2848 RON
39 1 1 RETRACTABLE BLADE GUARD (81380208071) 21361 RON
40 1 1 COVER, SAW BLADE HOUSING (81390208134) 15993 RON
41 1 1 BLADE GUARD LEVER (82390202787) 5926 RON
42 1 1 PARALLEL ARM (81380213547) 8275 RON
43 1 1 PRESSURE PIECE, RIVING KNIFE (81390208207) 4249 RON
44 1 1 Handle (81381208440) 7157 RON
45 1 1 WIRE LEVER (81381208458) 2124 RON
46 1 1 WHEEL (81381208482) 446 RON
47 1 2 BUFFER (81381208474) 446 RON
48 1 1 THREADED ROD M 8X94 (81485208140) 105 RON
49 1 1 WIRE PIN (81395203130) 781 RON
50 1 1 KNURLED KNOB RD 40X50 (81485208107) 7157 RON
51 1 1 PAN HEAD SCREW M 5X17 VERZ. /SCOTCH-GRI (81395203955) 781 RON
52 1 1 LEVER BL 5X92X107,7 (81482208491) 3018 RON
53 1 1 COVER PLATE BL 0,88X168X58,5 (81382208532) 781 RON
54 1 1 Riving knife small (81482208297) 955 RON
55 1 1 PRESSURE PLATE, RIVING KNIFE (81482208238) 105 RON
56 1 1 RETURN SPRING RDA 8X117X0,9 (87051202940) 781 RON
57 1 1 BLADE GUARD WIRE RD 1,25X140,5 +-0,8 (87238203079) 1564 RON
58 1 1 SHIM PLATE BL 0,5X42X35 (81382208982) 105 RON
59 1 1 MANDREL RD 12X75 (81485208360) 4249 RON
60 1 1 Guide piece (81485208379) 19236 RON
61 1 1 Guide rod (81485208387) 21361 RON
62 1 1 nut (81485208395) 3018 RON
63 1 1 AXLE RD 10X200 (81485208409) 3689 RON
64 1 1 Bolt (81485208417) 5926 RON
65 1 1 TURN HANDLE, DEPTH OF CUT RD 49,5X63 (81485208425) 15993 RON
66 1 2 Pressure spring (87051202931) 446 RON
68 1 1 1482208815 - Indisponibil
69 1 1 SCALE 0,165X13X471 +0/39,0 CM (81142208896) 10288 RON
70 1 1 SIDE PANEL RECHTS (81390208096) 117663 RON
71 1 1 SIDE PANEL LINKS (81390208118) 117663 RON
72 1 2 THREADED ROD M 12X585 (81485208930) 4249 RON
73 1 2 1383208269 - Indisponibil
75 1 1 7060120115 - Indisponibil
76 1 3 BOLT (81485208581) 2459 RON
77 1 1 Feed rod locking (81482208645) 2459 RON
78 1 1 Latch in the front (81482208637) 1564 RON
79 1 1 Latch rear (81482208629) 1340 RON
80 1 2 HEXAGON FIT BOLT (81485208611) 3018 RON
81 1 2 THREADED BOLT (81485208603) 105 RON
82 1 1 Coil spring (87051208573) 2459 RON
84 1 1 1381208547 - Indisponibil
85 1 1 SEAT BL 2X395X105 (81382208710) 7157 RON
86 1 1 COVER PLATE BL 0,88X200X239 (81382208664) 1564 RON
87 1 1 COVER PLATE BL 0,88X90,5X366 (81382209075) 1564 RON
88 1 4 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
90 1 1 LEAF SPRING 0,4X25X40 (87052216120) 781 RON
92 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
93 1 1 1010208978 - Indisponibil
94 1 1 Push stick (81394201630) 3018 RON
95 1 1 1010146611 - Indisponibil
98 1 1 CABLE, RUBBER JACKET,WITH PLUG A=437.1U (88402094428) 955 RON
100 1 1 SWITCH ASSEMBLY 230V 50HZ M.KABEL+KONDEN (81010213300) 117663 RON
101 1 1 Condenser (88050120172) 10288 RON
102 1 1 CAPACITOR CLAMP BL 0,88X35X178,5 RDI 44 (81332025186) 1564 RON
103 1 1 CLEAT, POWER CABLE OBER- UND UNTERTEIL (81381208431) 3018 RON
104 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (81341016980) 781 RON
105 1 1 Covering hood small (81381212480) 488 RON
106 1 1 LOCATING PLATE, BLADE GUARD (81482208912) 3018 RON
107 1 1 BOLT (81485208921) 1340 RON
117 1 1 CASING, TERMINAL BOX (81381209047) 2124 RON
118 1 1 LID, MOTOR TERMINAL BOX (81381209055) 3018 RON
119 1 1 Gasket (87631209062) 781 RON
120 1 1 MOTOR COVER, DRIVE SIDE (81380208993) 10288 RON
121 1 1 BOLT WITH HEAD (86632111175) 105 RON
122 1 1 Cam lock lever (82390205484) 3018 RON
123 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
168 1 2 COLLAR SCREW, RETURN SPRING (81485214239) 105 RON
169 1 2 Tension spring (87051214220) 1340 RON
501 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202128341) 446 RON
502 1 2 Washer (86300016713) 446 RON
503 1 2 HEXAGON THIN NUT (86205028038) 446 RON
505 1 1 BALL BEARING SHIM RING 21,8X14X0,3 (87140091302) 446 RON
506 1 1 Cap screw (86121016638) 446 RON
508 1 8 Fillister head screw (86172016683) 446 RON
509 1 2 Grub screw (86161029309) 446 RON
510 1 1 Pressure spring (87051120161) 446 RON
511 1 3 HEXAGON THIN NUT (86205028046) 446 RON
512 1 2 Tightening pin (86503001681) 446 RON
513 1 2 KNURLED THUMB SCREW, THIN TYPE M 5X16 VE (87009120054) 105 RON
514 1 1 Shim (86306110550) 446 RON
516 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X45 VER (86121029632) 446 RON
518 1 5 RUBBER-METAL ANTI-VIBR. MOUNT (87058028481) 1340 RON
519 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
520 1 1 Pin screw (86168142046) 1564 RON
521 1 1 Pin screw (86168121243) 781 RON
522 1 8 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
523 1 1 Clamping lever (87006028220) 5926 RON
524 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
525 1 1 Ball bearing (87100010164) 4249 RON
526 1 1 Retaining ring shaft (86401121364) 446 RON
527 1 1 Parallel key (86721074089) 446 RON
528 1 1 HEXAGON THIN NUT (86205088367) 446 RON
529 1 1 Needle sleeve (87104120142) 8275 RON
530 1 1 Inner ring (87104120150) 7157 RON
531 1 5 Hex head screw (86103121416) 446 RON
532 1 14 Washer (86305002087) 446 RON
533 1 9 Fillister head screw (86172028096) 446 RON
534 1 1 Hex head screw (86103001267) 781 RON
535 1 1 Shim (86306121349) 446 RON
536 1 1 Washer (86300019984) 446 RON
537 1 1 Shim (86306121357) 446 RON
538 1 1 SHIM RING 32X45X0,5 VERZ. (86306028063) 446 RON
539 1 1 Retaining ring shaft (86400121379) 446 RON
540 1 1 Retaining ring shaft (86400121387) 446 RON
541 1 1 Flat headed screw (86125121282) 781 RON
542 1 2 Fillister head screw (86172121304) 446 RON
544 1 1 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
545 1 1 Cylindrical pin (86502132685) 446 RON
546 1 3 COLLAR SCREW (81485209480) 105 RON
547 1 1 7140005856 - Indisponibil
548 1 1 0910030990 - Indisponibil
549 1 4 HEXAGON THIN NUT (86205029131) 446 RON
550 1 1 MEDIUM WASHER (86300016349) 446 RON
551 1 1 Washer (86307121334) 446 RON
552 1 1 Grub screw (86163121261) 446 RON
553 1 1 Retaining ring shaft (86400121395) 446 RON
554 1 2 Cap screw (86121023081) 446 RON
555 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
556 1 1 POLY-RIB BELT (87233677390) 13756 RON
557 1 5 Washer (86300016705) Indisponibil Indisponibil
558 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
559 1 4 PLUG RD 35,5X18 (81381120097) 781 RON
561 1 2 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
562 1 3 Washer (86300016322) Indisponibil Indisponibil
564 1 2 141180010 - Indisponibil
565 1 4 Hex head screw (86103001127) 446 RON
566 1 2 WAVE SPRING WASHER B 6 VERZ. (86302000318) 446 RON
567 1 5 Grub screw (86162019358) 446 RON
568 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
569 1 2 6172121312 - Indisponibil
570 1 4 COUNTERSUNK HEAD TAPPING SCREW ST 4,2X25 (86174001950) 446 RON
571 1 11 86172015687 - Indisponibil
572 1 5 Cap screw (86121000766) 446 RON
573 1 6 Washer (86305002460) 446 RON
574 1 2 PLUG RD 22,4X12 (81381120089) 446 RON
575 1 1 Plug (81381120070) 446 RON
576 1 1 CLAMPING SLEEVE 3X16 (86503001657) 446 RON
577 1 3 BLIND RIVET, MUSHROOM HEAD (86621010474) 446 RON
578 1 1 CABLE CLIP (88242051328) 105 RON
579 1 1 Serrated lock washer (86304001745) 446 RON
580 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
581 1 1 Cup spring (87053016795) 446 RON
582 1 1 RAISED CHEESE HEAD SCREW M 4X35 VERZ. (86123121323) 446 RON
583 1 1 STRAIN RELIEF (88242033664) 446 RON
584 1 2 Fillister head screw (86172100099) 446 RON
585 1 2 Fillister head screw (86123002022) 446 RON
586 1 1 STARLOCK (87016050711) 446 RON
587 1 2 LAMELLAR PLUG 60X25 VL SCHWARZ (81391019971) 781 RON
588 1 1 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
589 1 1 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
600 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
601 1 1 Serrated lock washer (86304001745) 446 RON
602 1 1 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
609 1 1 THREAD ROLLING SCREW A M 5X12 - ST-Z VER (86143142823) 446 RON
610 1 1 PLUG RD 20/15x4 (81381142830) 446 RON
612 1 8 Fillister head screw (86172016683) 446 RON
