Top » Piese de schimb » PIESE METABO » 0103300000 11

KGT 300 - 0103300000 11 - EU 230V
[0103300000 11]
KGT 300 - 0103300000 11 - EU 230V
Click pentru a mari
Imagini suplimentare
KGT 300 - 0103300000 11 - EU 230V
Click pentru a mari
KGT 300 - 0103300000 11 - EU 230V
Click pentru a mari
KGT 300 - 0103300000 11 - EU 230V
Click pentru a mari
KGT 300 - 0103300000 11 - EU 230V
Click pentru a mari

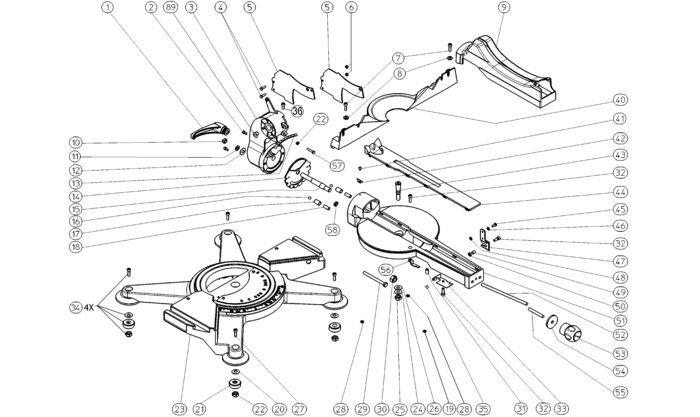

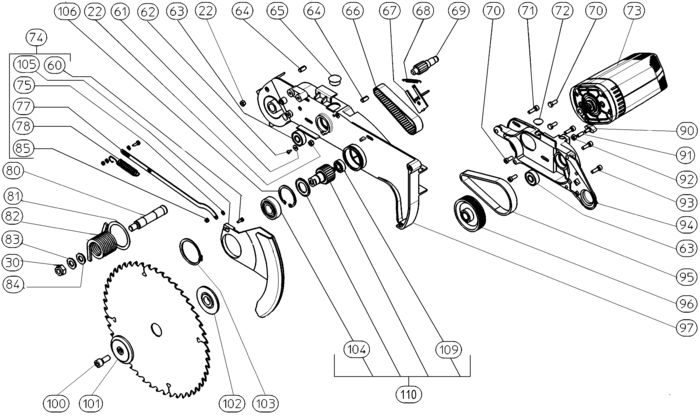

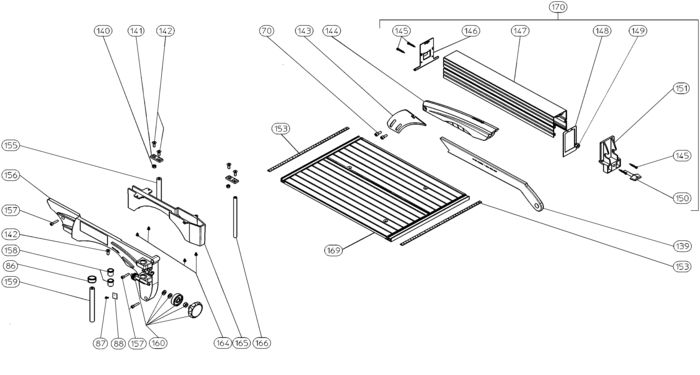

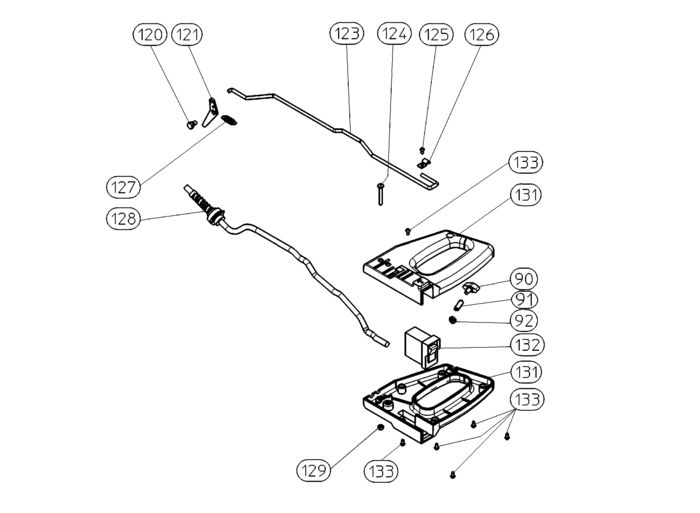

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Clamping lever (87006028220) 5926 RON
2 1 2 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
3 1 1 Pivot KGT 300 (81380703498) 39481 RON
4 1 2 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
5 1 2 GUARD PLATE BL 2,00X106,8X187,7 KGT300 (81382703517) 488 RON
6 1 2 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
7 1 2 THREAD ROLLING SCREW M 8X35 - ST VERZ./G (86143076260) 105 RON
8 1 2 SHIM RING 8X14X1 VERZ. (86306017266) 446 RON
9 1 1 SIDE PANEL KGT300 (81381704013) 4249 RON
10 1 1 CAP NUT, SELF-LOCKING (86208073395) 446 RON
11 1 1 WASHER (86300686603) 446 RON
12 1 1 WASHER B 13 VERZ. (86305002508) 446 RON
13 1 1 ANGLE SCALE 0,08X7,5X92 48-0-48 GRAD (81142703978) 190 RON
14 1 1 SHIM PLATE BL3,00 KGS303 (81482683769) 13756 RON
15 1 1 Swivel arm bold RD 16,3/M12X122 KGS303 (81385681999) 5479 RON
16 1 2 STEEL BALL RD 7,938 (87123148635) 446 RON
17 1 2 LOCK BOLT (81485215979) 1564 RON
18 1 2 PRESSURE SPRING RDA=8,5 LO=25,6 8,5 WIND (87051683751) 446 RON
19 1 1 SLIDE BUSHING 18X20X22 MIT BUND (87637712815) 190 RON
20 1 4 Washer (86305002486) 446 RON
21 1 4 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
22 1 7 Hex nut (86200002219) 446 RON
23 1 1 TABLE M.JUSTIERBLECH ET KGT 300 (81010712676) 9821 RON
24 1 1 CUP SPRING (87053010088) 446 RON
25 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
26 1 1 MEDIUM WASHER (86300016349) 446 RON
27 1 4 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
28 1 3 GLIDE PIECE (82391202772) 446 RON
29 1 1 HEXAGON HEAD SCREW M 8X85 VERZ. (86103122986) 781 RON
30 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
31 1 1 PRESSURE SPRING RDA=8,5 LO=17,7 5,5 WIND (87051683611) 446 RON
32 1 3 Cap screw w.internal hexagon (86143075247) 781 RON
33 1 1 CLAMPING PLATE BL 2,00X35X68,5 KGS303 (81482682029) 105 RON
34 1 1 ACCESSORY BA GUMMIF??E KGT 300 (81010713400) 8275 RON
35 1 1 STEEL BALL RD 12 KGT300 (87123716854) 781 RON
36 1 1 PLUG-IN BUFFER (82391203906) 446 RON
40 1 1 FENC KGT300 (81380703960) 26730 RON
41 1 1 Fillister head screw (86172028215) 446 RON
42 1 1 ANGLE POINTER BL 1,50X10X21,5 KGS303 (81482681987) 781 RON
43 1 1 DREHTELLERBOLZEN KGS303 RD 16/M10X63 (81385682006) 3689 RON
44 1 1 TABLE INSERT KGT300 (81381704005) 3689 RON
45 1 1 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
46 1 1 CUP SPRING 10X5,2X0,5 FORM A (87053711590) 669 RON
47 1 1 LOCKING PLATE BL 2,50X31,5X90 KGT300 (81482711584) 4249 RON
48 1 1 WASHER A 5,3 VERZ. (86305002478) 446 RON
49 1 1 SPACER SLEEVE (86442059304) 446 RON
50 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
51 1 1 TURNTABLE KGT300 (81380712713) 49212 RON
52 1 1 CLAMPING ROD RD 8X185,5 KGS303 (81385682014) 1340 RON
53 1 1 KNOB, RED (81388698264) Indisponibil Indisponibil
54 1 1 WASHER RDA44XRDI9X4 KGS 303 (81485683840) 105 RON
55 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161132754) 446 RON
56 1 1 POINTER BL 2,00X12X46 KGS303 (81482681979) 105 RON
57 1 1 HEXAGON HEAD SCREW (86103001143) 446 RON
58 1 1 HEXAGON THIN NUT (86205029131) 446 RON
60 1 1 HEXAGON HEAD SCREW M 4X12 VERZ. (86103703636) 669 RON
61 1 2 Washer (86305002460) 446 RON
62 1 1 86172123889 - Indisponibil
63 1 2 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
64 1 2 SPACER SLEEVE RD 8/6,4X18 VERZ. (86442706377) 781 RON
65 1 1 PLUG RD 21,9 (81381106094) 446 RON
66 1 1 COGGED BELT HTD 300-5M-20 CXP KGT300 (7231703351) 11519 RON
67 1 1 Spindle lock (81482681839) 1340 RON
68 1 1 TENSION SPRING (87051074232) 781 RON
69 1 1 SHAFT 14HTD5M20 RD21X70 KGT300 (81385703410) 955 RON
70 1 6 Fillister head screw w.flange (86143661561) 446 RON
71 1 2 HEXAGON SOCKET HEAD CAP SCREW M 6X50 VER (86121097735) 446 RON
72 1 1 PLUG RD 13 (81381738805) 446 RON
73 1 1 ELECTRIC MOTOR 1,8KW 230/1/50 KGT300 (81010703383) 14839 RON
74 1 1 RETRACTABLE BLADE GUARD KPL. KGT 300 (81010712684) 21361 RON
75 1 1 MEDIUM WASHER (86300016330) 446 RON
77 1 1 Zugblech BL 1,50x10x290,5 KGT-300 (81382703622) 2459 RON
78 1 1 TENSION SPRING RDA 14X49,75X1,5 11 WINDU (87051703590) 1564 RON
80 1 1 MOTOR HEAD AXLE RD22,8X102,5 /M12 KGT300 (81385703526) 5926 RON
81 1 1 REIBBLECH KGT 300 RD 72/52,2X1,0 (81382716961) 3689 RON
82 1 1 TORSION SPRING KGT300 (87051703558) 11519 RON
83 1 1 WASHER 13X26X2,5 VERZINKT (86300714330) 669 RON
84 1 1 CUP SPRING (87053063343) 446 RON
85 1 2 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
86 1 1 SHAFT COLLA A 14 / I-6KT VERZ. (86410178646) 190 RON
87 1 1 HEX. HEAD THREAD ROLLING SCREW M 4X8 (GE (86143088225) 446 RON
88 1 1 CLAMPING PLATE BL 0,88X13,5X22 KGT300 (81382706389) 488 RON
89 1 1 SLIDE BUSHING 18X20X22 MIT BUND (87637712815) 190 RON
90 1 2 THUMB SCREW M 6X12 KGT300 (86150703407) 781 RON
91 1 2 Pressure spring (87051711623) Indisponibil Indisponibil
92 1 2 HEXAGON THIN NUT (86205028046) 446 RON
93 1 2 THREAD ROLLING SCREW E M 6X30 - ST VERZ. (86143099472) 781 RON
94 1 1 MOTOR CARRIER KGT300 (81380703374) 2848 RON
95 1 1 POLY-RIB BELT 7 PJ 356 RIEMENH?HE 4,0 (87233707699) 11519 RON
96 1 1 POLY-RIB PULLEY 7J / RDA 74,9X25 KGT300 (81380703420) 11519 RON
97 1 1 GEARBOX ENCLOSURE KGT300 (81380703323) 54357 RON
100 1 1 HEXAGON SOCKET HEAD CAP SCREW M10X25 LIN (86121703686) 2124 RON
101 1 1 BLADE COLLAR, OUTER RD 63/10X8 KGT300 (81380703676) Indisponibil Indisponibil
102 1 1 BLADE COLLAR RD 63/19X10,45 KGT300 (81380703650) 7157 RON
103 1 1 CIRCLIP FOR BORE 55X2 (86401041131) 105 RON
104 1 1 DEEP GROOVE BALL BEARING 20X47X14 6204-2 (87100016820) 488 RON
105 1 1 RETRACTABLE BLADE GUARD M.GLEITF??E KGT (81010719441) 11519 RON
106 1 1 CIRCLIP FOR BORE 47X1,75 (86401009866) 446 RON
109 1 1 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
110 1 1 SAEGEBLATTWELLE KPL. KGT300 (81010717252) 33553 RON
120 1 1 Hex fit bolt (86104220876) Indisponibil Indisponibil
121 1 1 BOLT BL 2,99X23,5X66 KGT300 (81482703581) 1564 RON
123 1 1 RELEASE LEVER RD 5 KGT300 (81388703560) 3689 RON
124 1 1 RAISED CHEESE HEAD SCREW M 5X35 VERZ. (86123639659) 446 RON
125 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
126 1 1 CABLE CLIP RD6 (88242703600) 11519 RON
127 1 2 TENSION SPRING (87051074232) 781 RON
128 1 1 CABLE WITH PLUG 2X1,0X2353/2XFH KGT300 (88402703440) 8275 RON
129 1 1 HEXAGON NUT (86200002200) 446 RON
131 1 1 HANDLE KGT300 (81381703467) 5926 RON
132 1 1 Switch On/Of 2-Polig UM 230V 10A KGT300 (88111703451) Indisponibil Indisponibil
133 1 6 Fillister head screw w.fill. head screw (86186602763) 446 RON
139 1 1 Push stick (81394201630) 3018 RON
140 1 2 Flange nut (86209114230) 446 RON
141 1 2 ADAPTOR PLATE BL 4,00X15X40 KGT300 (81482711606) 3689 RON
142 1 5 HEX.SOCKET COUNTERS.HEAD SCREW (86132661454) 446 RON
143 1 1 SPLITTING BLADE KGT300 (81382703479) 3689 RON
144 1 1 SAW BLADE GUARD ASSEMBLY KGT300 (81010703995) 3689 RON
145 1 4 86172075604 - Indisponibil
146 1 1 END CAP BL 2,00X97,5X56 KGT300 (81382703860) 7157 RON
147 1 1 FENCE EXTRUSION 474,5 MM KGT300 (81383703880) 18341 RON
148 1 1 TENSION PLATE BL 0,88X55X95 KGT300 (81482703905) 7157 RON
149 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
150 1 1 THUMB SCREW M 8X40 VERZ. (86150669454) 4249 RON
151 1 1 END CAP KGT300 (81381703840) 1564 RON
153 1 2 SCALE 0,25X10X340,5 10,30-0/0-23,50 CM (81142703919) 1564 RON
155 1 1 GUIDE BAR RD 14X99 KGT300 (81385703828) 3018 RON
156 1 1 DISC GUARD KGT300 (81380711571) 26730 RON
157 1 3 HEXAGON SOCKET HEAD CAP SCREW E M 5X25 - (86143703710) 781 RON
158 1 2 SLIDE BUSHING 14X16X12 MIT BUND (87637711444) 1340 RON
159 1 1 TOOTHED RACK RD 14h9X168 KGT300 (81385703810) 15993 RON
160 1 1 GEARWHEEL SHAFT KPL. ET KGT (81010712692) 13756 RON
164 1 4 86172047473 - Indisponibil
165 1 1 PROTECTION COVER KGT300 (81381720353) 3689 RON
166 1 1 GUIDE BAR RD 10X156 KGT300 (81485711615) 3689 RON
169 1 1 TABLE ASSEMBLY KGT300 (81010704142) 64311 RON
170 1 1 RIP FENCE KGT 300 (81010712706) 34448 RON
