| 1 |
1 |
1 |

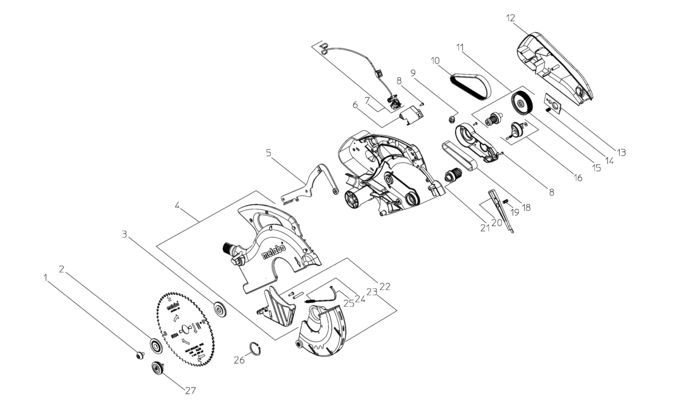

SAW SPINDLE BOLT M 8x20 left (81395739162)
|
3689 RON |
|
| 2 |
1 |
1 |
Blade collar, outer (81482736579)
|
5926 RON |
|
| 3 |
1 |
1 |
Blade collar, inner (81485736553)
|
488 RON |
|
| 4 |
1 |
1 |
Wheel guard compl. (81010736150)
|
21361 RON |
|
| 5 |
1 |
1 |
Swivel lever compl. (81010736753)
|
8275 RON |
|
| 6 |
1 |
1 |
Transformator KGS Plus (88056736540)
|
15993 RON |
|
| 7 |
1 |
1 |
Laser compl. (343082640)
|
2848 RON |
|
| 8 |
1 |
3 |
Fillister head screw w.fill. head screw (86172001805)
|
446 RON |
|
| 9 |
1 |
1 |
GROMMET (88243740097)
|
446 RON |
|
| 10 |
1 |
1 |
Poly-rib belt cod alternativ (87233736389)
|
4249 RON |
|
| 11 |
1 |
1 |
Intermediate shaft KGS 216/254/315 Plus (81010739248)
|
21361 RON |
|
| 12 |
1 |
1 |
Belt guard (81381736683)
|
5479 RON |
|
| 13 |
1 |
1 |
Saw blade arrest compl. (81010739230)
|
21361 RON |
|
| 14 |
1 |
1 |
Pressure spring (87051722854)
|
105 RON |
|
| 15 |
1 |
1 |
POLY-RIB PULLEY KGS 216/254/315 Plus (81380739255)
|
21361 RON |
|
| 16 |
1 |
1 |
Transportation lock compl. KGS 216/254/3 (81010739035)
|
21361 RON |
|
| 18 |
1 |
1 |
COGGED BELT HTD 300-5M-20 CXP KGT300 (7231703351)
|
11519 RON |
|
| 19 |
1 |
1 |
Pressure spring (87051711623)
|
Indisponibil |
Indisponibil |
| 20 |
1 |
1 |
lock lever lower Guard (81381736802)
|
Indisponibil |
Indisponibil |
| 21 |
1 |
1 |
Saw blade shaft compl. KGS 216/254/315 (81010739132)
|
21361 RON |
|
| 22 |
1 |
1 |
Cover dust collector (339203820)
|
Indisponibil |
Indisponibil |
| 23 |
1 |
1 |
Safety guard compl. (81010737229)
|
Indisponibil |
Indisponibil |
| 24 |
1 |
1 |
Return spring (87051736405)
|
Indisponibil |
Indisponibil |
| 25 |
1 |
1 |
Plastic strip (81381736861)
|
Indisponibil |
Indisponibil |
| 26 |
1 |
1 |
Retaining ring shaft (86400736810)
|
Indisponibil |
Indisponibil |
| 27 |
1 |
1 |
Flange bolt (81010736893)
|
19236 RON |
|
| 30 |
1 |
1 |

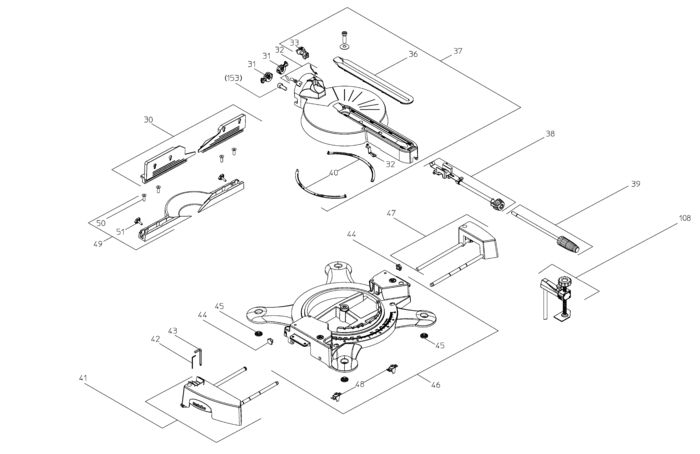

Auxiliary guide compl. (81010737210)
|
Indisponibil |
Indisponibil |
| 31 |
1 |
2 |
bevel stop compl. KGS Plus (81010736257)
|
1340 RON |
|
| 32 |
1 |
1 |
Pointer compl. KGS 216/254/315 Plus (81010739108)
|
21361 RON |
|
| 33 |
1 |
1 |
Catch clamb compl KGS 216/254/315 Plus (81010739124)
|
21361 RON |
|
| 36 |
1 |
1 |
Table insert compl. KGS 216/254/315 Plus (81010739116)
|
21361 RON |
|
| 37 |
1 |
1 |
Turntable compl. KGS 254/315 Plus (81010739647)
|
21361 RON |
|
| 38 |
1 |
1 |
Turntable Accessories KGS 254/315 Plus (81010739159)
|
Indisponibil |
Indisponibil |
| 39 |
1 |
1 |
Control grip compl. KGS Plus (81010736249)
|
5479 RON |
|
| 40 |
1 |
1 |
Slide block KGS 254/315 Plus (81388739629)
|
21361 RON |
|
| 41 |
1 |
1 |
Table side extension left (81010737423)
|
13756 RON |
|
| 42 |
1 |
1 |
ALLEN HEXAGON KEY SW 2,5 SCHWARZ (89102076823)
|
446 RON |
|
| 43 |
1 |
1 |
ALLEN HEXAGON KEY (89102689833)
|
190 RON |
|
| 44 |
1 |
2 |
Star grip screw (341704570)
|
105 RON |
|
| 45 |
1 |
4 |
Rubber foot (341147920)
|
3689 RON |
|
| 46 |
1 |
1 |
Table KGS 254/315 Plus (81010740300)
|
93951 RON |
|
| 47 |
1 |
1 |
Table side extension left (81010737431)
|
13756 RON |
|
| 48 |
1 |
2 |
Extension detent compl. KS 254/305 (81010737555)
|
4249 RON |
|
| 49 |
1 |
1 |
Stop compl. (81010736427)
|
Indisponibil |
Indisponibil |
| 50 |
1 |
4 |
HEX.SOCKET COUNTERS.HEAD SCREW (86132002060)
|
446 RON |
|
| 51 |
1 |
2 |
Star grip screw (341704580)
|
105 RON |
|
| 60 |
1 |
1 |

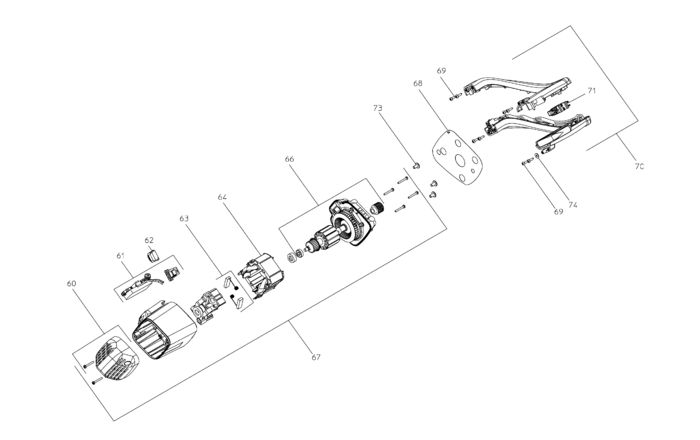

End cap KGS 315 (81010739418)
|
21361 RON |
|
| 61 |
1 |
1 |
Electronic unit,120V 60 Hz (343082460)
|
39481 RON |
|
| 62 |
1 |
1 |
Connector cover (81381737167)
|
105 RON |
|
| 63 |
1 |
1 |
Carbon Brush 120V compl KGS 315 Plus (343012800)
|
10288 RON |
|
| 64 |
1 |
1 |
Field coil compl.,120V (311011480)
|
39481 RON |
|
| 66 |
1 |
1 |
Armature cpl. 120V (310010160)
|
41718 RON |
|
| 67 |
1 |
1 |
Motor compl.,110 V (317003750)
|
127394 RON |
|
| 68 |
1 |
1 |
Gasket (87631740116)
|
781 RON |
|
| 69 |
1 |
9 |
Screw (341702050)
|
446 RON |
|
| 70 |
1 |
1 |
Handle compl. (81010736168)
|
15993 RON |
|
| 71 |
1 |
1 |
On-off switch KS 254/305 (88111737712)
|
955 RON |
|
| 73 |
1 |
3 |
Fillister head screw w.flange (86143661561)
|
446 RON |
|
| 74 |
1 |
1 |
Washer (141150110)
|
446 RON |
|
| 80 |
1 |
1 |

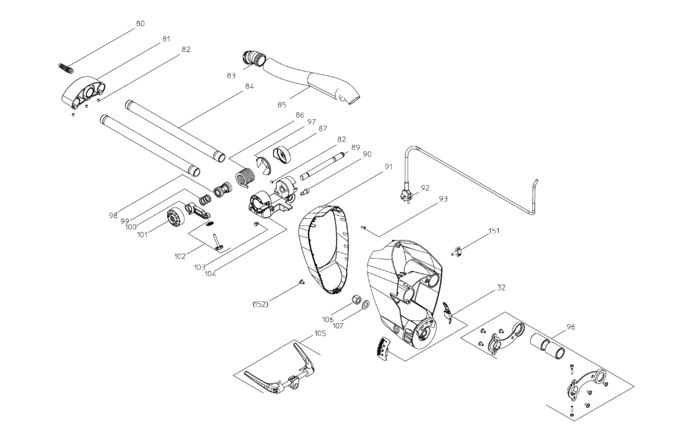

Strain relief (88402736722)
|
446 RON |
|
| 81 |
1 |
1 |
Rear pivot (81380736582)
|
7157 RON |
|
| 82 |
1 |
6 |
Grub screw w.internal hexagon (86164029245)
|
446 RON |
|
| 83 |
1 |
1 |
DUST EXTRACTION PORT 44/35-44/32 (81381691566)
|
190 RON |
|
| 84 |
1 |
2 |
Feed rod (81385736475)
|
46975 RON |
|
| 85 |
1 |
1 |
Suction hose (81381736535)
|
190 RON |
|
| 86 |
1 |
1 |
Coil spring (87051736618)
|
669 RON |
|
| 87 |
1 |
1 |
Cover cap (81381736594)
|
781 RON |
|
| 89 |
1 |
1 |
Motor head axle (81385736505)
|
4249 RON |
|
| 90 |
1 |
1 |
Stop screw (81485735689)
|
3018 RON |
|
| 91 |
1 |
1 |
Cover pivot (81381736330)
|
3689 RON |
|
| 92 |
1 |
1 |
Cable w.british plug,110V (344498630)
|
15993 RON |
|
| 93 |
1 |
1 |
Screw (341702050)
|
446 RON |
|
| 96 |
1 |
1 |
Rep-Set linear-bearing compl. (81010739434)
|
21361 RON |
|
| 97 |
1 |
1 |
7631738677
|
- |
Indisponibil |
| 98 |
1 |
2 |
Bushing (torsion spring bush) (81381736497)
|
446 RON |
|
| 99 |
1 |
1 |
Pressure spring (87051736413)
|
Indisponibil |
Indisponibil |
| 100 |
1 |
1 |
Depth stop (81380736787)
|
3018 RON |
|
| 101 |
1 |
1 |
Control knob (81381736519)
|
Indisponibil |
Indisponibil |
| 102 |
1 |
1 |
Knurled thumb screw (86143736880)
|
669 RON |
|
| 103 |
1 |
1 |
Hex fit bolt (86104220876)
|
Indisponibil |
Indisponibil |
| 104 |
1 |
1 |
Front pivot (81380736469)
|
15993 RON |
|
| 105 |
1 |
1 |
Clamping lever compl. KGS 216/254/315 Pl (81010739027)
|
13756 RON |
|
| 106 |
1 |
1 |
Hex nut self-locking (141132000)
|
669 RON |
|
| 107 |
1 |
1 |
Washer (86300016713)
|
446 RON |
|
| 108 |
1 |
1 |
Work clamb assy compl. KS Plus (81010737440)
|
21361 RON |
|
| 151 |
1 |
1 |
Thumbscrew (341704560)
|
1340 RON |
|
| 152 |
1 |
1 |
399999990
|
- |
Indisponibil |
| 153 |
1 |
1 |
399999990
|
- |
Indisponibil |
