Top » Piese de schimb » PIESE METABO » 0103030000 10

KGS 303 PLUS - 0103030000 10 - EU 230V
[0103030000 10]
KGS 303 PLUS - 0103030000 10 - EU 230V
Click pentru a mari
Imagini suplimentare
KGS 303 PLUS - 0103030000 10 - EU 230V
Click pentru a mari
KGS 303 PLUS - 0103030000 10 - EU 230V
Click pentru a mari
KGS 303 PLUS - 0103030000 10 - EU 230V
Click pentru a mari

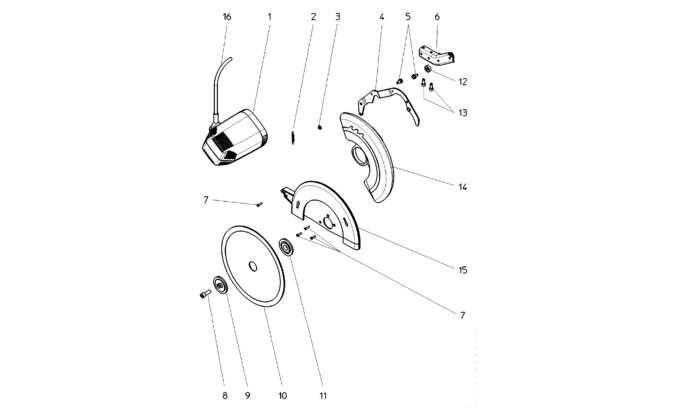

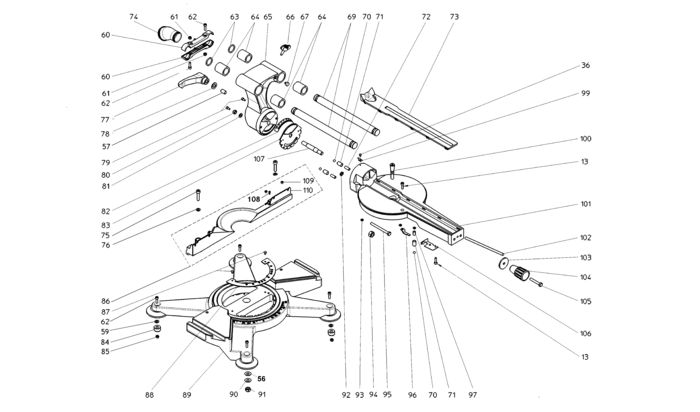

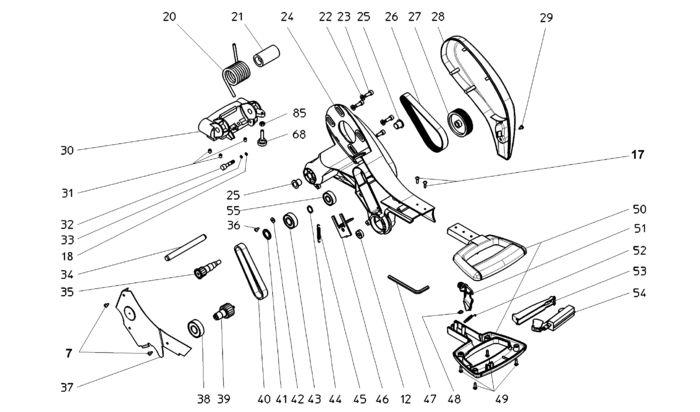

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ELECTRIC MOTOR 1,8KW 230/1/50 (81010680618) 9821 RON
2 1 1 7051681937 - Indisponibil
3 1 1 SLIDE BUSHING RDI 06 (F.3MM BLECH) (87637651433) 781 RON
4 1 1 1482682118 - Indisponibil
5 1 2 HEX. HEAD THREAD ROLLING SCREW (86143124744) 446 RON
6 1 1 1482682142 - Indisponibil
7 1 6 COUNTERSUNK HEAD TAPPING SCREW (86174001900) Indisponibil Indisponibil
8 1 1 Cap screw (86121000839) Indisponibil Indisponibil
9 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
10 1 1 0910030973 - Indisponibil
11 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
12 1 3 DEEP GROOVE BALL BEARING 6X19X6 626 -2Z (87100047262) 1564 RON
13 1 3 Cap screw w.internal hexagon (86143075247) 781 RON
14 1 1 1381679914 - Indisponibil
15 1 1 DISC GUARD KGS303 (81380679821) 19236 RON
16 1 1 CABLE WITH PLUG 2X1,0X2336/2XKS KGS303 (88402680661) 8275 RON
17 1 2 Fillister head screw (86172001830) 446 RON
18 1 1 O-RING 4X2,5 80 SHORE A (87632609080) 446 RON
20 1 1 TORSION SPRING RDI 33 KGS303 (87051680647) 2459 RON
21 1 1 BUSHING 30/12,3X54 KGS 303 (81381685795) 3689 RON
22 1 3 Washer Washer cod vechi 86300016365 (141151940) 446 RON
23 1 4 HEXAGON SOCKET HEAD CAP SCREW M 6X16 VER (86122151520) 781 RON
24 1 1 Kapparm KGS303 (81380679805) 41718 RON
25 1 2 SLIDE BUSHING 12X14X15 MIT BUND (87637685800) 105 RON
26 1 1 POLY-RIB BELT (87233680626) 488 RON
27 1 1 1380679902 - Indisponibil
28 1 1 BELT GUARD KGS303 (81381679922) Indisponibil Indisponibil
29 1 1 Fillister head screw (86172028215) 446 RON
30 1 1 SWIVEL CASTING KGS303 (81380679783) 30980 RON
31 1 3 Grub screw w.internal hexagon (86164029245) 446 RON
32 1 1 LOCKING PIN RD 10/6,4X40 KGS303 (81485681953) 1564 RON
33 1 1 O-RING 4,0X1,0 (81327064092) 105 RON
34 1 1 SHAFT RD 12X124 KGS303 (81485681945) 190 RON
35 1 1 SHAFT 14HTD5M15 RD25X70,5 KGS303 (81385680577) 11519 RON
36 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
37 1 1 GUARD PLATE BL 1,00X141X262,5 KGS303 (81482682088) Indisponibil Indisponibil
38 1 1 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100017703) 3689 RON
39 1 1 SAW BLADE SPINDLE 20HTD5M15 RD31X57,5 KG (81385680593) 19236 RON
40 1 1 COGGED BELT (87231680580) Indisponibil Indisponibil
41 1 1 WASHER (81482680670) 446 RON
42 1 1 Washer (86305002460) 446 RON
43 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
44 1 1 RETAINING RING FOR SHAFTS (86400009897) 446 RON
45 1 1 TENSION SPRING (87051074232) 781 RON
46 1 1 Spindle lock (81482681839) 1340 RON
47 1 1 ALLEN HEXAGON KEY (89102016766) 781 RON
48 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
49 1 4 Fillister head screw w.fill. head screw (86186602763) 446 RON
50 1 1 HANDLE KGS303 (81381679680) 5926 RON
51 1 1 HAUBENARRETIERUNG KGS303 (81381679930) 105 RON
52 1 1 TENSION SPRING (87051074232) 781 RON
53 1 1 CAP KGS303 (81381679698) 105 RON
54 1 1 Switch On/Of 2-Polig UM 230V 10A KGS303 (88111680605) 24046 RON
55 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
56 1 1 MEDIUM WASHER (86300016349) 446 RON
57 1 1 Spacer sleeve (81485212970) 1340 RON
59 1 4 Washer (86305002486) 446 RON
60 1 2 STABILISATOR KGS303 (81380679880) 3689 RON
61 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
62 1 6 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
63 1 2 O-RING 22X2 (87632170119) Indisponibil Indisponibil
64 1 4 LINEAR BALL BEARING RD 25/35X40 TYP KH 2 (87121680658) 955 RON
65 1 1 Pivot,KGS303 (81380679767) 34448 RON
66 1 1 THUMB SCREW M 6X16 (86150657243) 781 RON
67 1 1 PLUG-IN BUFFER (82391203906) 446 RON
68 1 1 KNURLED THUMB SCREW M 6X25 VERZ. (86143071144) 781 RON
69 1 2 PISTON ROD RD 25X325 RANDSCHICHTGEH?RTET (81385680631) 26730 RON
70 1 3 STEEL BALL RD 7,938 (87123148635) 446 RON
71 1 3 LOCK BOLT (81485215979) 1564 RON
72 1 2 PRESSURE SPRING RDA=8,5 LO=25,6 8,5 WIND (87051683751) 446 RON
73 1 1 TABLE INSERT KGS303 (81381679949) 3018 RON
74 1 1 DUST EXTRACTION PORT RD 40/52 KGS303 (81381684080) 1340 RON
75 1 2 THREAD ROLLING SCREW M 8X35 - ST VERZ./G (86143076260) 105 RON
76 1 2 SHIM RING 8X14X1 VERZ. (86306017266) 446 RON
77 1 1 Clamping lever (87006028220) 5926 RON
78 1 1 WASHER B 13 VERZ. (86305002508) 446 RON
79 1 2 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
80 1 1 CAP NUT, SELF-LOCKING (86208073395) 446 RON
81 1 1 WASHER (86300686603) 446 RON
82 1 1 ANGLE SCALE 0,08X14X96 48-0 0-48 GRAD (81142683519) 105 RON
83 1 1 SHIM PLATE BL3,00 KGS303 (81482683769) 13756 RON
84 1 4 RUBBER FOOT RD 30X17,5 80 SHORE (87057208753) 781 RON
85 1 4 Hex nut (86200002219) 446 RON
86 1 1 FENCE, ASSEMBLY ET (81010690141) 33553 RON
87 1 2 BLIND RIVET, MUSHROOM HEAD 5X8 F FLACHRU (86621075371) 446 RON
88 1 1 SHIM PLATE BL2,00 KGS303 (81482683505) 3689 RON
89 1 1 TABLE KGS303 (81380703986) 73930 RON
90 1 1 CUP SPRING (87053010088) 446 RON
91 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
92 1 1 HEXAGON THIN NUT (86205029131) 446 RON
93 1 3 GLIDE PIECE (82391202772) 446 RON
94 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
95 1 1 HEXAGON HEAD SCREW M 8X85 VERZ. (86103122986) 781 RON
96 1 1 POINTER BL 2,00X12X46 KGS303 (81482681979) 105 RON
97 1 1 PRESSURE SPRING RDA=8,5 LO=17,7 5,5 WIND (87051683611) 446 RON
99 1 1 ANGLE POINTER BL 1,50X10X21,5 KGS303 (81482681987) 781 RON
100 1 1 DREHTELLERBOLZEN KGS303 RD 16/M10X63 (81385682006) 3689 RON
101 1 1 TURNTABLE KGS303 (81380679848) 46975 RON
102 1 1 CLAMPING ROD RD 8X185,5 KGS303 (81385682014) 1340 RON
103 1 1 WASHER RDA44XRDI9X4 KGS 303 (81485683840) 105 RON
104 1 1 7006018305 - Indisponibil
105 1 1 HEXAGON HEAD SCREW M 8X50 VERZ. (86103001216) 446 RON
106 1 1 CLAMPING PLATE BL 2,00X35X68,5 KGS303 (81482682029) 105 RON
107 1 1 Swivel arm bold RD 16,3/M12X122 KGS303 (81385681999) 5479 RON
108 1 2 HEX. SOCKET SET SCREW, DOG PT. M 8X6 VER (86164686599) 446 RON
109 1 1 THREAD ROLLING SCREW A M 5X12 - ST-Z VER (86143142823) 446 RON
110 1 1 TUBBING PLATE BL 2,99X59,4X107 KGS303 (81482684412) 5926 RON
