KGS 301 - 0103001242 12 - EU 230V
[0103001242 12]
KGS 301 - 0103001242 12 - EU 230V
Click pentru a mari
Imagini suplimentare
KGS 301 - 0103001242 12 - EU 230V
Click pentru a mari
KGS 301 - 0103001242 12 - EU 230V
Click pentru a mari
KGS 301 - 0103001242 12 - EU 230V
Click pentru a mari

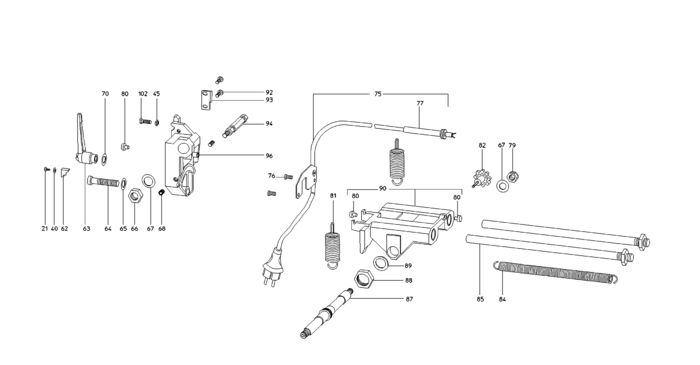

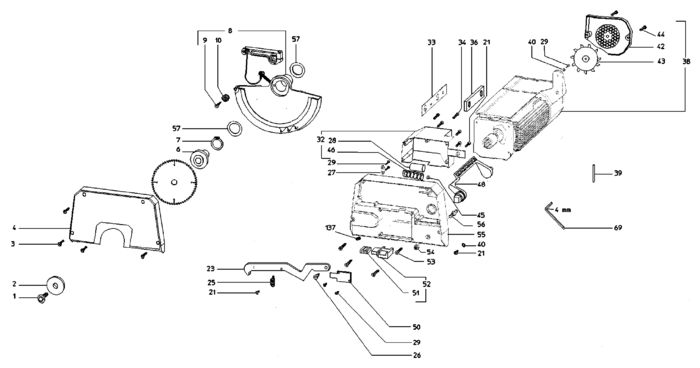

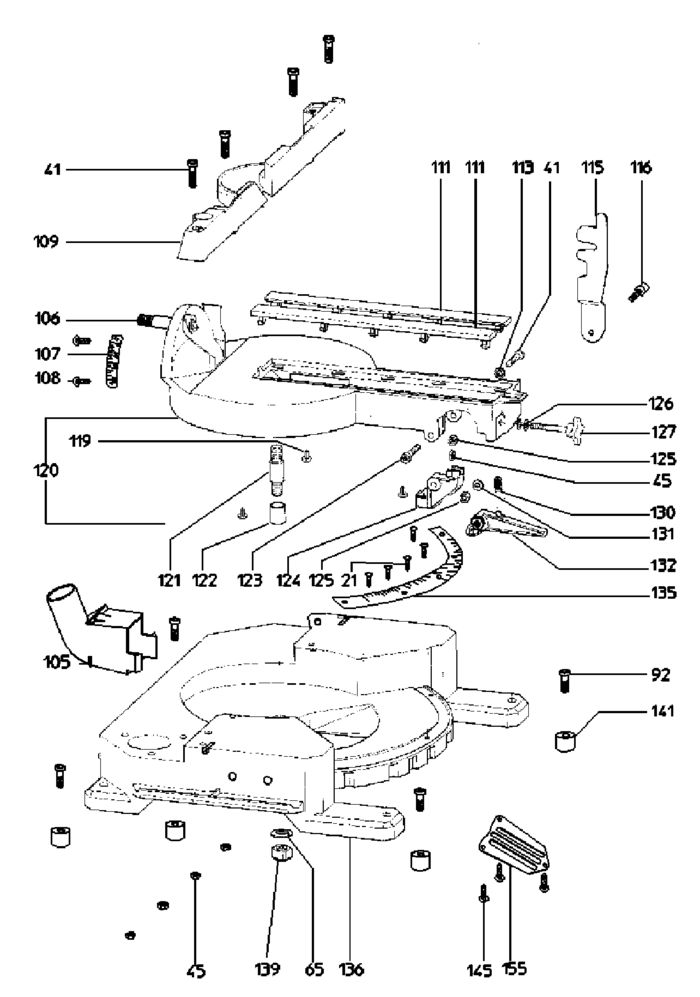

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SAW SPINDLE BOLT M 8 LH X20 VERZ. (81395207098) 190 RON
2 1 1 BLADE COLLAR, OUTER (81485212147) 5479 RON
3 1 4 86172028134 - Indisponibil
4 1 1 HOUSING COVER (82380213993) 13756 RON
6 1 1 Flange (81485212139) 955 RON
7 1 1 Retaining ring shaft (86400121387) 446 RON
8 1 1 RETRACTABLE BLADE GUARD MIT VERRIEGELUN (81010656504) 24046 RON
9 1 1 6176007417 - Indisponibil
10 1 1 DEEP GROOVE BALL BEARING 6X19X6 626 -2Z (87100047262) 1564 RON
21 1 9 Fillister head screw (86172028215) 446 RON
23 1 1 MOTORHEAD CATCH BL 2,99X(53)X264 (81492037601) 1564 RON
25 1 1 RETURN SPRING RDA 9X30X0,8 (87051202958) 446 RON
26 1 1 Hex fit bolt (86104220876) Indisponibil Indisponibil
27 1 1 STRAIN RELIEF (88242033664) 446 RON
28 1 1 CAPACITOR 20uF/400V 45X67 KABEL 160 ABGE (88050033539) 7157 RON
29 1 5 86172032905 - Indisponibil
32 1 1 LID, TERMINAL BOX 230/1/50 M.E-BREMSE VE (81010655575) 9821 RON
33 1 1 COVER STRIP LS 25X5X150 (81492037580) 781 RON
34 1 5 Fillister head screw (86172028096) 446 RON
36 1 1 FASTENING STRAP FL 30X8X96 (81392202729) 5479 RON
38 1 1 MOTOR, CROSSCUT AND MITRE SAW 230/1/50 E (81010657080) 14839 RON
39 1 1 LOCK BAR RD 5X150 (89103202881) 781 RON
40 1 3 MEDIUM WASHER (86300016330) 446 RON
41 1 5 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
42 1 2 FAN COVER (82391202551) 105 RON
43 1 1 FAN WING TYP 56 (82391203442) 1340 RON
44 1 4 HEXAGON HEAD SCREW M 5X10 VERZ. (86143036802) 446 RON
45 1 7 Hex nut (86200002219) 446 RON
46 1 1 TERMINAL BLOCK 6-POLIG/2,5 QMM VDE 5VD4 (88216656297) 105 RON
48 1 1 BLADE GUARD LEVER (82390202787) 5926 RON
50 1 1 SWITCH CAP (82391202853) 781 RON
51 1 1 SWITCH COVER ET (82391202926) 781 RON
52 1 1 TOUCH-CONTACT SWITCH KGS MIT E-BREMSE (81010656300) 7157 RON
53 1 4 CROSS RECESSED FLAT HEAD SCREW M 5X25 VE (86131070290) 446 RON
54 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
55 1 1 MOTOR HEAD COVER (82391202683) 7157 RON
56 1 1 BOLT (81485208581) 2459 RON
57 1 2 SHIM RING 32X45X0,5 VERZ. (86306028063) 446 RON
62 1 1 POINTER RAL 3000-3003 (82391203523) 446 RON
63 1 1 Clamping lever (87006028220) 5926 RON
64 1 1 HEXAGON SOCKET HEAD CAP SCREW M 12X70 VE (86127027992) 1340 RON
65 1 2 CUP SPRING 25,0X12,2X1,5 A25/GR2 (87053028238) 781 RON
66 1 1 HEXAGON THIN NUT (86205028038) 446 RON
67 1 2 Washer (86300016713) 446 RON
68 1 2 HEX. SOCKET SET SCREW, FLAT PT M 8X12 VE (86161051916) 446 RON
69 1 1 ALLEN HEXAGON KEY (89102017894) 446 RON
70 1 1 MEDIUM WASHER A 13 (86300084859) 446 RON
75 1 1 81010019067 - Indisponibil
76 1 2 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
77 1 1 CABLE BUSHING 17,5X13X9,5X3 KGS 301/331 (82381715992) 781 RON
79 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202128341) 446 RON
80 1 3 PLUG-IN BUFFER (82391203906) 446 RON
81 1 2 TENSION SPRING RDA 30X91X2,8 50-170 N (87051210284) Indisponibil Indisponibil
82 1 2 STARKNOB SCREW RD40/M6X23 (DIN 933) VERZ (87001017769) 781 RON
84 1 1 RETURN SPRING RDA 18X90X1,25 (87051204314) 105 RON
85 1 2 FEED ROD ASSEMBLY (81010141288) 21361 RON
87 1 1 MOTOR HEAD AXLE (81385209408) 13756 RON
88 1 1 CHECK NUT (81485209421) 2124 RON
89 1 1 Shim (86306110550) 446 RON
90 1 1 TELESCOPIC ARM CASTING RD 20 (81010128451) 54357 RON
92 1 4 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
93 1 1 LOCKING PLATE BL 1,5X26X42,5 (81482212650) 781 RON
94 1 1 RETURN SPRING BOLT 6KT 14X80 (81395202606) 1564 RON
96 1 1 SWIVEL CASTING (81380656465) 26730 RON
102 1 1 Hex head screw (86103001135) 446 RON
105 1 1 DUST EXTRACTION PORT RD 32 (82391203540) 2124 RON
106 1 1 METAL END STUD M 12X55 RUNDUMBESCHICHTET (86168029746) 1340 RON
107 1 1 BEVEL TILT SCAL 0,50X11X62,50 0-45 GRAD (81142214322) 1564 RON
108 1 2 Fillister head screw (86172091014) 446 RON
109 1 1 FENCE (81380654098) Indisponibil Indisponibil
111 1 2 KERF PLATE (82391202640) 2124 RON
113 1 1 Serrated lock washer (86304084047) 446 RON
115 1 1 TRANSPORT LOCK PLATE BL 2,99X37X169,5 (81482210348) 1340 RON
116 1 1 Cap screw (86121023081) 446 RON
119 1 3 GLIDE PIECE (82391202772) 446 RON
120 1 1 TURNTABLE AUSF?HRUNG 3 (81380653997) 54357 RON
121 1 1 FITTING BOLT, THREADED RD 16X60 RUNDUMBE (81395202657) 3018 RON
122 1 1 SLIDE BUSHING RD 16/RD 18X20 (82393203156) 105 RON
123 1 1 Cap screw (86127059207) 446 RON
124 1 1 MITRE LOCK LEVER (82390203040) 190 RON
125 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
126 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
127 1 1 DELTA STARKNOB M 6X75/25 (87001203104) 1340 RON
130 1 1 Pressure spring (87051202931) 446 RON
131 1 1 CUP SPRING (87053081619) 446 RON
132 1 1 STOP LEVER MIT BUCHSE (81010013816) 2459 RON
135 1 1 ANGLE SCALE 1,00 2X46 GRAD (81141203068) 3018 RON
136 1 1 TABLE AUSF?HRUNG 3 KGS301 (81380675052) 9821 RON
137 1 1 FLEXIBLE EDGE GUARD 2X15+/-0,5 KGS (87056671069) 446 RON
139 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
141 1 4 RUBBER-METAL ANTI-VIBR. MOUNT (87058028481) 1340 RON
145 1 2 Fillister head screw (86172001821) 446 RON
155 1 1 GUARD PLATE BL 0,88X62X108 KGS (81482653592) 4249 RON
