KGS 16-300 - 03103001 - EU 230V
[03103001]
KGS 16-300 - 03103001 - EU 230V
Click pentru a mari
Imagini suplimentare
KGS 16-300 - 03103001 - EU 230V
Click pentru a mari
KGS 16-300 - 03103001 - EU 230V
Click pentru a mari
KGS 16-300 - 03103001 - EU 230V
Click pentru a mari

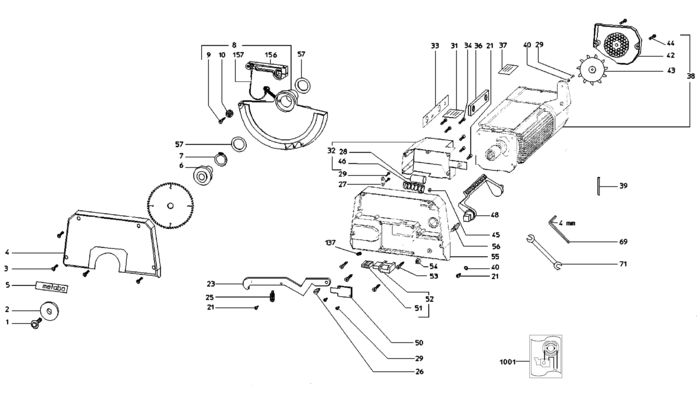

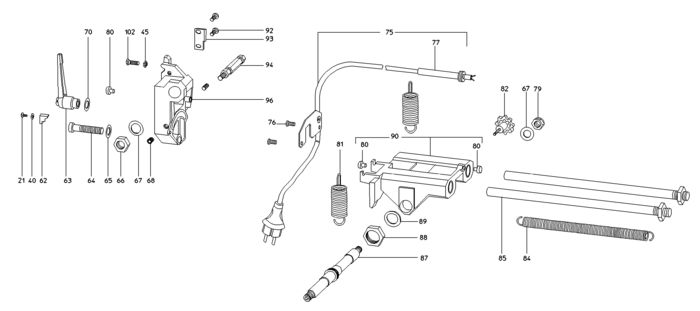

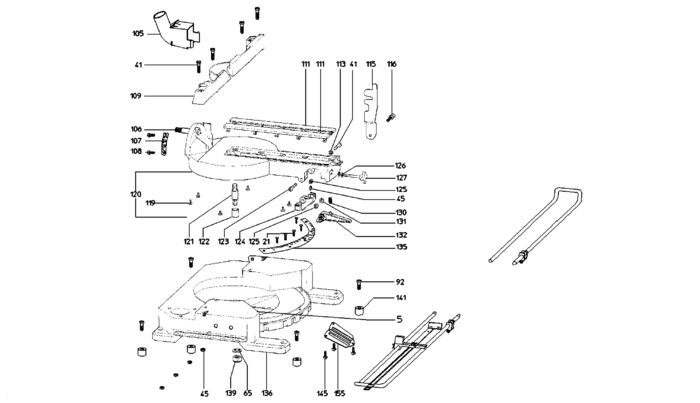

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 341703130 - Indisponibil
2 1 1 341031740 - Indisponibil
3 1 4 141122530 - Indisponibil
4 1 1 315415250 - Indisponibil
5 1 1 Metabo label (338115510) 446 RON
6 1 1 341056440 - Indisponibil
7 1 1 Retaining ring (141180170) 446 RON
8 1 1 316031810 - Indisponibil
9 1 1 341703140 - Indisponibil
10 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
21 1 5 Self-tap. fill. h. screw (141118130) 446 RON
23 1 1 MOTORHEAD CATCH BL 2,99X(5 (339130160) 1340 RON
25 1 1 342010240 - Indisponibil
26 1 1 341703150 - Indisponibil
27 1 1 STRAIN RELIEF GR 1-17 (343376360) 446 RON
28 1 1 343254120 - Indisponibil
29 1 5 Self-tap. fill. h. screw (141120470) 446 RON
31 1 1 338116050 - Indisponibil
32 1 1 343078160 - Indisponibil
33 1 1 Cover strip LS 25X5X15 (339130170) 781 RON
34 1 5 141122540 - Indisponibil
36 1 1 Fasetnin strap (339130180) 4249 RON
37 1 1 338040880 - Indisponibil
38 1 1 317002810 - Indisponibil
39 1 1 Locking pin RD 5X150 (341514780) 446 RON
40 1 3 Washer (141150010) 446 RON
41 1 5 Cap screw (141113870) 781 RON
42 1 2 343376180 - Indisponibil
43 1 1 FAN WING (330001570) 781 RON
44 1 4 HEXAGON HEAD SCREW M 5X10 (341703120) 446 RON
45 1 7 Hexagonal nut (141130100) 446 RON
46 1 1 Conector bar 6 pole (343050190) 781 RON
48 1 1 315415240 - Indisponibil
50 1 1 SWITCH CAP (343376370) 781 RON
51 1 1 343376170 - Indisponibil
52 1 1 343407080 - Indisponibil
53 1 4 Countersunk screw (141112920) 446 RON
54 1 1 Hexagonal lock nut (141130950) 446 RON
55 1 1 343376220 - Indisponibil
56 1 1 341056450 - Indisponibil
57 1 2 141155680 - Indisponibil
62 1 1 POINTER (343376230) 446 RON
63 1 1 RATCHET LOCK LEVER, FEMALE M 12 (341112510) 5479 RON
64 1 1 Grub screw (141112610) 446 RON
65 1 2 Cup spring (141153630) 781 RON
66 1 1 Plain hexagon nut (141131400) 2459 RON
67 1 2 Washer (141150080) 446 RON
68 1 2 Grub screw (141112590) 446 RON
69 1 1 Hexagonal key (344161530) 781 RON
70 1 1 Washer (141151990) 446 RON
71 1 1 Open-end spanner (344160190) 1564 RON
75 1 1 Rubber cable 3GX1,5X300 (344494540) 10288 RON
76 1 2 Hexagon head screw (141113290) 446 RON
77 1 1 SLEEVE, CABLE SUPPORT TYP 15-561 (344095780) 446 RON
79 1 1 Hexagonal lock nut (141131460) 446 RON
80 1 3 344095830 - Indisponibil
81 1 2 342010190 - Indisponibil
82 1 2 Star grip (341112460) 781 RON
84 1 1 342010230 - Indisponibil
85 1 2 316031710 - Indisponibil
87 1 1 MOTOR HEAD AXLE RD 30X196 (341056410) 11519 RON
88 1 1 CHECK NUT SW 36X8 / (341101910) 190 RON
89 1 1 Shim (141155670) 446 RON
90 1 1 316031580 - Indisponibil
92 1 2 Cap screw (141113840) 781 RON
93 1 1 LOCKING PLATE BL 1,5X26X (339130210) 446 RON
94 1 1 RETURN SPRING BOLT 6KT 14X80 (341056460) 1340 RON
96 1 1 315415260 - Indisponibil
102 1 1 Hexagon head screw (141110270) 446 RON
105 1 1 343376250 - Indisponibil
106 1 1 141112580 - Indisponibil
107 1 1 338115770 - Indisponibil
108 1 2 Self-tap. fill. h. screw (141113170) 446 RON
109 1 1 315415290 - Indisponibil
111 1 2 343376280 - Indisponibil
113 1 1 Serrated lock washer (141150430) 446 RON
115 1 1 TRANSPORT LOCK PLATE BL 2,99X37 (339130370) 1340 RON
116 1 1 Cap screw (141113850) 781 RON
119 1 3 343375980 - Indisponibil
120 1 1 315415280 - Indisponibil
121 1 1 Threaded bolt RD 16 X 60 (341056430) 2459 RON
122 1 1 Bush RD 16/RD 1 (341005170) 781 RON
123 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X30 (341703170) 446 RON
124 1 1 315415300 - Indisponibil
125 1 2 Hexagonal lock nut (141130650) 781 RON
126 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
127 1 1 341112490 - Indisponibil
130 1 1 Pressure spring RDI 6 X 3 (342002840) 446 RON
131 1 1 141155660 - Indisponibil
132 1 1 343376270 - Indisponibil
135 1 1 ANGLE SCALE (338115760) 3689 RON
136 1 1 Table (315415270) 73930 RON
137 1 2 RUBBER STOP RD 7,9X22 (344095840) 446 RON
139 1 1 HEXAGON NUT, PREV. TORQUE TYPEM 12 (341101890) 446 RON
141 1 4 344095810 - Indisponibil
145 1 3 Countersunk screw (141112330) 781 RON
155 1 1 GUARD PLATE (339130840) 2459 RON
156 1 1 343376390 - Indisponibil
157 1 1 345000140 - Indisponibil
1001 1 1 338503110 - Indisponibil
