Top » Piese de schimb » PIESE METABO » 0102540000 10

KGS 254 - 0102540000 10 - EU 230V
[0102540000 10]
KGS 254 - 0102540000 10 - EU 230V
Click pentru a mari
Imagini suplimentare
KGS 254 - 0102540000 10 - EU 230V
Click pentru a mari
KGS 254 - 0102540000 10 - EU 230V
Click pentru a mari
KGS 254 - 0102540000 10 - EU 230V
Click pentru a mari

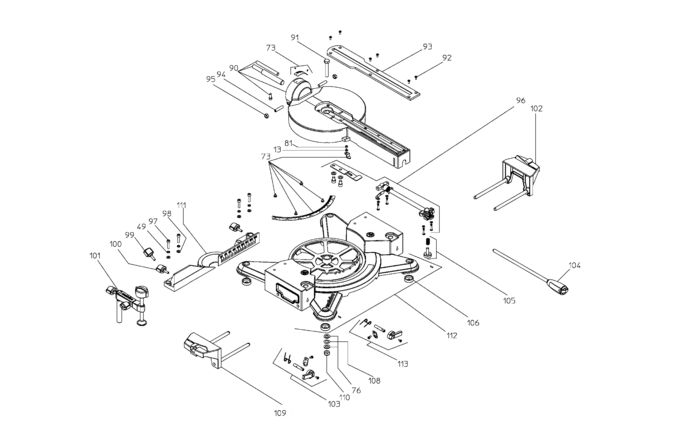

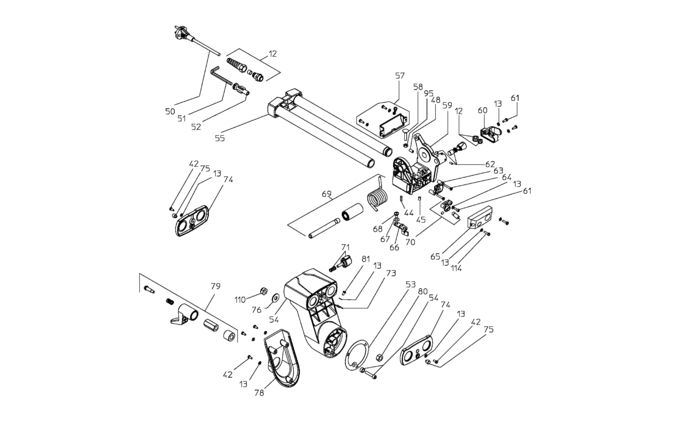

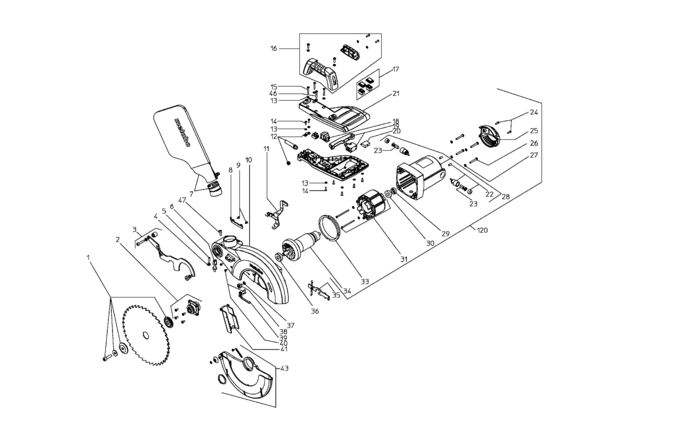

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Flange compl. (81010734653) Indisponibil Indisponibil
2 1 1 Gear-box compl. (81010734610) Indisponibil Indisponibil
3 1 1 Swivel lever compl. (81010734149) Indisponibil Indisponibil
4 1 1 Hex nut (86200002219) 446 RON
5 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE cod vechi 86161030528 (141124480) 446 RON
6 1 1 Depth stop compl. (81010734564) 669 RON
7 1 1 Dust etraction kit compl. (81010734572) Indisponibil Indisponibil
8 1 1 Cover cable duct (81381735083) 446 RON
9 1 2 6131001531 - Indisponibil
10 1 1 Wheel guard compl. (81010734599) 15993 RON
11 1 1 Unlock lever compl. (81010734556) 781 RON
12 1 1 Strain relief compl. (81010734165) Indisponibil Indisponibil
13 1 29 MEDIUM WASHER (86300016330) 446 RON
14 1 8 Fillister head screw (86172001821) 446 RON
15 1 2 RAISED CHEESE HEAD SCREW M 4X35 VERZ. (86123121323) 446 RON
16 1 1 Handle compl. (81010734190) 190 RON
17 1 1 Switch set (81010734203) 1564 RON
18 1 1 Power supply pack (88106734071) 3689 RON
19 1 1 Switch compl. (81010734092) Indisponibil Indisponibil
20 1 1 Condenser (88050734103) 669 RON
21 1 1 Handle compl. (81010734181) 5926 RON
22 1 1 Carbon brush holder compl. (81010733991) 105 RON
23 1 1 Carbon brush SET (81388734031) Indisponibil Indisponibil
24 1 2 86172015687 - Indisponibil
25 1 1 MOTOR COVER (81381733978) Indisponibil Indisponibil
26 1 4 RAISED CHEESE HEAD SCREW M 5X35 VERZ. (86123639659) 446 RON
27 1 6 Washer (86300016357) 446 RON
28 1 1 Motor housing compl. (81010734017) 7157 RON
29 1 1 Rubber bushing (87057734854) 446 RON
30 1 1 Ball bearing, 12x28x8 (143111440) 955 RON
31 1 1 Stator (88014734067) Indisponibil Indisponibil
33 1 1 Air guide cover (81331734876) 446 RON
34 1 1 Armature (8014734903) Indisponibil Indisponibil
35 1 1 Spindle lock compl. (81010734823) 446 RON
36 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
37 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
38 1 1 Bearing compl. (81010734807) 781 RON
39 1 1 Cover spring (81381735660) 446 RON
40 1 4 6174188961 - Indisponibil
41 1 1 Extraction channel (81381734796) Indisponibil Indisponibil
42 1 5 RAISED CHEESE HEAD SCREW (86123022619) 446 RON
43 1 1 Safety guard compl. (81010734637) Indisponibil Indisponibil
44 1 2 Tightening pin (141161150) 446 RON
45 1 2 HEX. SOCKET SET SCREW, FLAT PT M 6X8 VER (86161063817) Indisponibil Indisponibil
46 1 2 86172682314 - Indisponibil
47 1 1 HEXAGON SOCKET HEAD CAP SCREW (86127059193) 446 RON
48 1 3 Grub screw (341701070) 2124 RON
49 1 6 Serrated lock washer (86304001745) 446 RON
50 1 1 CABLE WITH PLUG (88402734940) 4249 RON
51 1 1 ALLEN HEXAGON KEY (89102689833) 190 RON
52 1 1 Tool holder (81381734834) 446 RON
53 1 1 Sliding sheet (81382735095) Indisponibil Indisponibil
54 1 1 Pivot compl. (81010734432) Indisponibil Indisponibil
55 1 1 Feed rod compl. (81010734521) Indisponibil Indisponibil
57 1 1 Cover compl. (81010734700) 446 RON
58 1 1 CUP SQUARE NECK SCREW M 8X25 VERZ. (86110000640) 446 RON
59 1 1 Motor bracket compl. (81010734505) Indisponibil Indisponibil
60 1 1 Cable hook (81381734710) Indisponibil Indisponibil
61 1 3 Fillister head screw (86123002022) 446 RON
62 1 1 Transport lock compl. (81010734530) 669 RON
63 1 1 LED-Lamp (88602734766) Indisponibil Indisponibil
64 1 2 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
65 1 1 Cover lighting (81381734974) 446 RON
66 1 1 Stop sheet (81482734738) 446 RON
67 1 1 WAVE SPRING WASHER A 8 VERZ. (86302027860) 446 RON
68 1 1 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
69 1 1 Motor head axle compl. (81010734670) 4249 RON
70 1 1 Laser with holder (1010734467) 3689 RON
71 1 1 Thumbscrew compl. (81010734742) Indisponibil Indisponibil
73 1 1 Scale set compl. (81010734416) Indisponibil Indisponibil
74 1 1 cover pivot (81010734459) 105 RON
75 1 2 Plug in buffer (87056734753) 446 RON
76 1 3 MEDIUM WASHER (86300016349) 446 RON
78 1 1 cover pivot (81381734931) Indisponibil Indisponibil
79 1 1 Clamping lever compl. (81010734378) Indisponibil Indisponibil
80 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
81 1 4 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO (86143025088) 446 RON
90 1 1 Turntable compl. (81010734386) 26730 RON
91 1 1 Hexagon head screw (141113440) 781 RON
92 1 6 HEX.SOCKET COUNTERS.HEAD SCREW M 4X12 VE (86131001558) 446 RON
93 1 1 Table insert (81381734966) 105 RON
94 1 2 HEX. SOCKET SET SCREW, FLAT PT (86161132754) 446 RON
95 1 3 HEXAGON NUT (86200002235) Indisponibil Indisponibil
96 1 1 Detent compl. (81010734211) Indisponibil Indisponibil
97 1 4 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
98 1 6 Washer (86300016322) Indisponibil Indisponibil
99 1 1 THUMB SCREW M 6X16 (86150657243) 781 RON
100 1 2 THUMB SCREW M 6X12 KGT300 (86150703407) 781 RON
101 1 1 Workpiece holder compl. (81010734351) Indisponibil Indisponibil
102 1 1 Table side extension right (81010734327) 11519 RON
103 1 1 Clamping lever compl. left (81010734335) 781 RON
104 1 1 Control grip compl. (81010734238) Indisponibil Indisponibil
105 1 1 Set screw compl. (81010734912) 669 RON
106 1 1 Foot set (81010734122) 446 RON
108 1 1 Lock washer (141150390) 446 RON
109 1 1 Table side extension left (81010734297) 11519 RON
110 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
111 1 1 Stop compl. (81010734998) Indisponibil Indisponibil
112 1 1 Table compl. (81010734262) 39481 RON
113 1 1 Clamping lever compl. right (81010734343) 781 RON
114 1 2 RAISED CHEESE HEAD SCREW M 4X16 VERZ. (86123025200) 446 RON
120 1 1 MOTOR ASSEMBLY 230V KGS 254 (81010735617) Indisponibil Indisponibil
