Top » Piese de schimb » PIESE METABO » 0102160119 10

KGS 216 - 0102160119 10 - AU 240V
[0102160119 10]
KGS 216 - 0102160119 10 - AU 240V
Click pentru a mari
Imagini suplimentare
KGS 216 - 0102160119 10 - AU 240V
Click pentru a mari
KGS 216 - 0102160119 10 - AU 240V
Click pentru a mari
KGS 216 - 0102160119 10 - AU 240V
Click pentru a mari

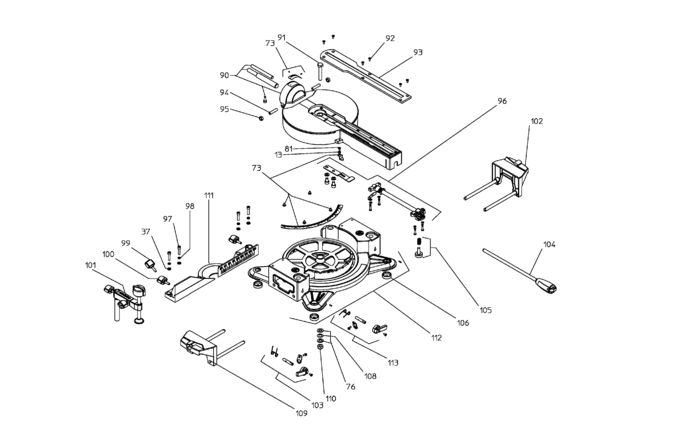

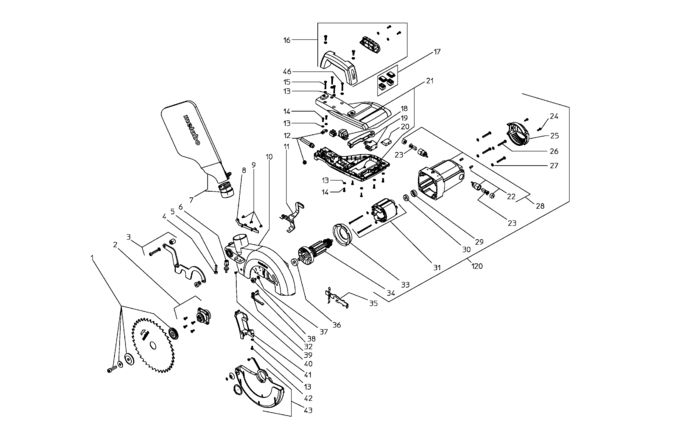

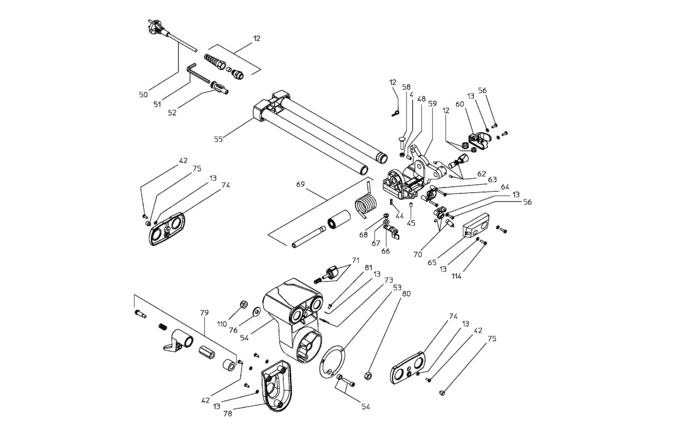

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Flange compl. cod vechi 81010734645 (316060610) Indisponibil Indisponibil
2 1 1 Gear-box compl. (81010734602) Indisponibil Indisponibil
3 1 1 Swivel lever compl. (81010734130) 3689 RON
4 1 2 Hex nut (86200002219) 446 RON
5 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE cod vechi 86161030528 (141124480) 446 RON
6 1 1 Depth stop compl. (81010734564) 669 RON
7 1 1 Dust etraction kit compl. (81010734572) Indisponibil Indisponibil
8 1 1 Cover cable duct (81381734729) 446 RON
9 1 3 6131001531 - Indisponibil
10 1 1 Wheel guard compl. (81010734580) Indisponibil Indisponibil
11 1 1 Unlock lever compl. (81010734548) Indisponibil Indisponibil
12 1 1 Strain relief compl. (81010734165) Indisponibil Indisponibil
13 1 29 MEDIUM WASHER (86300016330) 446 RON
14 1 8 86172722847 - Indisponibil
15 1 2 Fillister head screw (86123084690) 446 RON
16 1 1 Handle compl. (81010734190) 190 RON
17 1 1 Switch set (81010734203) 1564 RON
18 1 1 Power supply pack (88106734071) 3689 RON
19 1 1 Switch compl. (81010734084) 2459 RON
20 1 1 Condenser (88050734103) 669 RON
21 1 1 Handle compl. (81010734173) 7157 RON
22 1 2 Carbon brush holder compl. (81010733983) 781 RON
23 1 1 Carbon brush (81388734023) Indisponibil Indisponibil
24 1 2 86172015687 - Indisponibil
25 1 1 MOTOR COVER (81381733960) Indisponibil Indisponibil
26 1 4 RAISED CHEESE HEAD SCREW M 5X35 VERZ. (86123639659) 446 RON
27 1 4 Washer (86300016357) 446 RON
28 1 1 Motor housing compl. (81010734009) Indisponibil Indisponibil
29 1 1 Rubber bushing (87057734846) 446 RON
30 1 1 Ball bearing,8x22x7 (143115180) 2124 RON
31 1 1 Stator (88014734059) Indisponibil Indisponibil
32 1 2 COUNTERSUNK HEAD TAPPING SCREW (86174001900) Indisponibil Indisponibil
33 1 1 Air guide cover (81331734868) Indisponibil Indisponibil
34 1 1 Armature (88014734890) Indisponibil Indisponibil
35 1 1 Spindle lock compl. (81010734815) 446 RON
36 1 1 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
37 1 5 Washer Washer cod vechi 86300016365 (141151940) 446 RON
38 1 1 Bearing compl. (81010734807) 781 RON
39 1 1 Cover spring (81381735660) 446 RON
40 1 4 6174188961 - Indisponibil
41 1 1 Extraction channel (81381734788) Indisponibil Indisponibil
42 1 6 RAISED CHEESE HEAD SCREW (86123022619) 446 RON
43 1 1 Safety guard compl. (81010734629) Indisponibil Indisponibil
44 1 2 Tightening pin (141161150) 446 RON
45 1 2 HEX. SOCKET SET SCREW, FLAT PT M 6X8 VER (86161063817) Indisponibil Indisponibil
46 1 2 86172006963 - Indisponibil
48 1 1 Grub screw (341701070) 2124 RON
50 1 1 8402739747 - Indisponibil
51 1 1 ALLEN HEXAGON KEY (89102689833) 190 RON
52 1 1 Tool holder (81381734834) 446 RON
53 1 1 Sliding sheet (81382735095) Indisponibil Indisponibil
54 1 1 Pivot compl. (81010734424) 15993 RON
55 1 1 Feed rod compl. (81010734513) 2848 RON
56 1 3 Fillister head screw (86123002022) 446 RON
58 1 1 HEXAGON HEAD SCREW M 6X30 VERZ. (86103019921) 446 RON
59 1 1 Motor bracket compl. (81010734491) 10288 RON
60 1 1 Cable hook (81381734710) Indisponibil Indisponibil
62 1 1 Transport lock compl. (81010734530) 669 RON
63 1 1 LED-Lamp (88602734766) Indisponibil Indisponibil
64 1 2 RAISED CHEESE HEAD SCREW M 4X20 VERZ. (86123084703) 446 RON
65 1 1 Cover lighting (81381734974) 446 RON
66 1 1 Stop sheet (81482734738) 446 RON
67 1 1 WAVE SPRING WASHER A 8 VERZ. (86302027860) 446 RON
68 1 1 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
69 1 1 Motor head axle compl. (81010734661) 4249 RON
70 1 1 Laser with holder (1010734467) 3689 RON
71 1 1 Thumbscrew compl. (81010734742) Indisponibil Indisponibil
73 1 1 Scale set compl. (81010734408) 669 RON
74 1 1 cover pivot (81010734440) 781 RON
75 1 2 Plug in buffer (87056734753) 446 RON
76 1 3 MEDIUM WASHER (86300016349) 446 RON
78 1 1 cover pivot (81381734923) 105 RON
79 1 1 Clamping lever compl. (81010734378) Indisponibil Indisponibil
80 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
81 1 4 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO (86143025088) 446 RON
90 1 1 Turntable compl. (81010734386) 26730 RON
91 1 1 Hexagon head screw (141113440) 781 RON
92 1 6 HEX.SOCKET COUNTERS.HEAD SCREW M 4X12 VE (86131001558) 446 RON
93 1 1 Table insert (81381734966) 105 RON
94 1 2 HEX. SOCKET SET SCREW, FLAT PT (86161132754) 446 RON
95 1 2 HEXAGON NUT (86200002235) Indisponibil Indisponibil
96 1 1 Detent compl. (81010734211) Indisponibil Indisponibil
97 1 4 Cap screw (86121000766) 446 RON
98 1 4 Serrated lock washer (86304084047) 446 RON
99 1 1 THUMB SCREW M 6X16 (86150657243) 781 RON
100 1 2 THUMB SCREW M 6X12 KGT300 (86150703407) 781 RON
101 1 1 Workpiece holder compl. (81010734351) Indisponibil Indisponibil
102 1 1 Table side extension right (81010734319) 10288 RON
103 1 1 Clamping lever compl. left (81010734335) 781 RON
104 1 1 Control grip compl. (81010734238) Indisponibil Indisponibil
105 1 1 Set screw compl. (81010734912) 669 RON
106 1 1 Foot set (81010734114) Indisponibil Indisponibil
108 1 1 Lock washer (141150390) 446 RON
109 1 1 Table side extension left (81010734289) 11519 RON
110 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
111 1 1 Stop compl. (81010734980) Indisponibil Indisponibil
112 1 1 Table compl. (81010734254) 2848 RON
113 1 1 Clamping lever compl. right (81010734343) 781 RON
114 1 2 RAISED CHEESE HEAD SCREW M 4X16 VERZ. (86123025200) 446 RON
120 1 1 MOTOR ASSEMBLY 230V KGS 216 (81010735609) Indisponibil Indisponibil
