KGS E 1670 S- SIGNAL - 01670000 - EU 230V
[01670000]
KGS E 1670 S- SIGNAL - 01670000 - EU 230V
Click pentru a mari
Imagini suplimentare
KGS E 1670 S- SIGNAL - 01670000 - EU 230V
Click pentru a mari
KGS E 1670 S- SIGNAL - 01670000 - EU 230V
Click pentru a mari

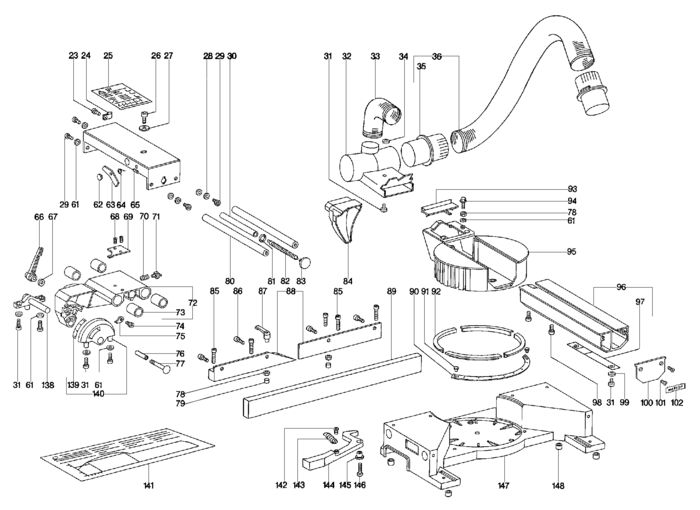

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 Fill. head screw(DIN 7985) (141119890) 446 RON
2 1 1 315413060 - Indisponibil
3 1 1 Screw (341702360) 3689 RON
4 1 1 Cup spring (141154060) 1564 RON
5 1 1 Flange (341031480) 955 RON
6 1 1 399999990 - Indisponibil
7 1 1 Flange (341031470) 15993 RON
8 1 1 141154570 - Indisponibil
9 1 1 Movable blade guard (315413120) 26730 RON
10 1 1 141115510 - Indisponibil
11 1 1 Opener (339005310) 488 RON
12 1 1 screw (341702370) 2459 RON
13 1 1 Flap cpl. (316022140) 21361 RON
14 1 4 Tight-fit screw (341701220) 446 RON
15 1 1 Conversion kit (316022450) 3698 RON
16 1 1 143113480 - Indisponibil
17 1 1 Saw axle cpl. (316022030) 34448 RON
18 1 1 Toothed belt (344260160) 8275 RON
19 1 2 Washer (141152720) 781 RON
20 1 1 Needle sleeve (143111460) 1564 RON
21 1 1 Belt pulley cpl. (316022410) 13756 RON
22 1 1 Toothed belt (344260170) 13756 RON
23 1 1 Fill. head screw(DIN 7985) (141119570) 446 RON
24 1 1 339005650 - Indisponibil
25 1 1 338107760 - Indisponibil
26 1 1 Cheese-head screw (141114590) 781 RON
27 1 1 Washer (141150810) 446 RON
28 1 4 Washer (141151930) 446 RON
29 1 4 Cap screw (141113850) 781 RON
30 1 1 Tube (341053370) 3689 RON
31 1 6 141121670 - Indisponibil
32 1 1 Air distributor (343366180) 4249 RON
33 1 1 Suction hose (344093640) 3689 RON
34 1 1 Washer (141153950) 446 RON
35 1 2 Hose connector (343357910) 3018 RON
36 1 1 Suction hose (344093630) 19236 RON
37 1 1 Hexagonal nut (141130090) 446 RON
38 1 1 338107830 - Indisponibil
39 1 1 342001960 - Indisponibil
40 1 1 141154410 - Indisponibil
41 1 1 Chip-guide plate cpl. (316022150) 3018 RON
42 1 1 Fillister head screw (141110460) 446 RON
43 1 1 Bush (341004390) 781 RON
44 1 1 Spindle (341603180) 3689 RON
45 1 1 339005350 - Indisponibil
46 1 1 Spindle (341603170) 30980 RON
47 1 6 Self-tap. fill. h. screw (141116020) 781 RON
48 1 1 Saw head (316022080) 78180 RON
49 1 1 339005340 - Indisponibil
50 1 1 Trigger (343364110) 105 RON
51 1 1 Pressure spring (342007800) 781 RON
52 1 1 344489060 - Indisponibil
53 1 1 Cable sleeve (344100640) Indisponibil Indisponibil
54 1 1 Cable clip (339187200) 781 RON
55 1 2 141120360 - Indisponibil
56 1 1 343366130 - Indisponibil
57 1 1 343363070 - Indisponibil
58 1 1 Switch (343406260) Indisponibil Indisponibil
59 1 2 Fillister head screw (141116970) 781 RON
61 1 6 Washer (141152070) 446 RON
62 1 1 341603190 - Indisponibil
63 1 1 339005390 - Indisponibil
64 1 1 342021320 - Indisponibil
65 1 1 315413110 - Indisponibil
66 1 1 Clamping lever (341111940) 7157 RON
67 1 1 Washer (141151340) 446 RON
68 1 2 Countersunk screw (141112160) 781 RON
69 1 1 339005370 - Indisponibil
70 1 1 Pressure spring (342001240) 446 RON
71 1 1 Thumbscrew (341111920) 105 RON
72 1 1 Swivel arm (316022100) 14839 RON
73 1 4 143114100 - Indisponibil
74 1 1 Fill. head screw(DIN 7985) (141120070) 446 RON
75 1 1 Pointer (343366250) 105 RON
76 1 1 341053690 - Indisponibil
77 1 1 Truss head screw (141120530) 105 RON
78 1 2 Hexagonal nut (141130100) 446 RON
79 1 2 Insert (341053360) 1340 RON
80 1 2 341603150 - Indisponibil
81 1 1 143194230 - Indisponibil
82 1 1 Tension spring (342001940) 2459 RON
83 1 1 343367620 - Indisponibil
84 1 1 343366320 - Indisponibil
85 1 2 141120540 - Indisponibil
86 1 4 Self-tap. fill. h. screw (141119810) 781 RON
87 1 1 Clamping lever (341112170) 7157 RON
88 1 1 Guide compl. (316022130) 26730 RON
89 1 1 344500640 - Indisponibil
90 1 1 338110280 - Indisponibil
91 1 2 Hexagon head screw (141120390) 446 RON
92 1 4 Segment (343366160) 781 RON
93 1 1 Cover (343366330) 2124 RON
94 1 1 Hexagon head screw (141119780) 781 RON
95 1 1 Turntable (316022090) 49212 RON
96 1 1 316022040 - Indisponibil
97 1 1 344100890 - Indisponibil
98 1 2 Cap screw (141113840) 781 RON
99 1 1 Butting ring (341043290) 781 RON
100 1 1 Cover (343366150) 1340 RON
101 1 2 Countersunk screw (141112230) 446 RON
102 1 1 Metabo label (338123580) 105 RON
103 1 1 Bush (341603160) 15993 RON
104 1 1 341004370 - Indisponibil
105 1 1 Torsion spring (342021290) 7157 RON
106 1 1 Washer (141151460) 781 RON
107 1 1 Retaining ring (141180850) 446 RON
108 1 1 Cap screw (141113870) 781 RON
109 1 4 141118790 - Indisponibil
110 1 1 Countersunk screw (141116560) 446 RON
111 1 1 Hexagon head screw (141120210) 446 RON
112 1 1 343366170 - Indisponibil
113 1 2 344490270 - Indisponibil
114 1 1 342021310 - Indisponibil
115 1 1 339005360 - Indisponibil
116 1 1 344490290 - Indisponibil
117 1 1 O-ring (143190070) 781 RON
118 1 1 Cranked wrench key (344161520) 781 RON
119 1 1 338024830 - Indisponibil
120 1 1 Intermediate piece (343363570) 5926 RON
121 1 1 338107250 - Indisponibil
122 1 1 338107270 - Indisponibil
123 1 1 141120520 - Indisponibil
124 1 1 Belt pulley (315413160) 4249 RON
125 1 1 Ball bearing, 12x28x8 (143111080) 5926 RON
126 1 1 Fan (330000940) 2124 RON
127 1 1 Armature cpl. 230 V (310006120) 64311 RON
128 1 1 339150820 - Indisponibil
129 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
130 1 1 O-ring (143192130) 781 RON
131 1 1 311008250 - Indisponibil
132 1 2 Self-tap. fill. h. screw (141121680) 446 RON
133 1 1 Motor housing (343366230) 18341 RON
134 1 1 Carbon brush (316033710) 955 RON
135 1 2 Brush holder cpl. (343000540) 3689 RON
136 1 1 Electronic unit 230 V (343070840) 3698 RON
137 1 2 141116030 - Indisponibil
138 1 1 Bearing block cpl. (316022060) 955 RON
139 1 1 338110290 - Indisponibil
140 1 1 316022050 - Indisponibil
141 1 1 338107920 - Indisponibil
142 1 1 Self-tap. fill. h. screw (141116020) 781 RON
143 1 1 342001950 - Indisponibil
144 1 1 Lever (343366140) 3018 RON
145 1 1 341004380 - Indisponibil
146 1 1 Cap screw (141113900) 781 RON
147 1 1 316022070 - Indisponibil
148 1 4 344093550 - Indisponibil
1001 1 1 338500820 - Indisponibil
