Top » Piese de schimb » PIESE METABO » 0102551019 11

KGS 1370 - 0102551019 11 - AU 240V
[0102551019 11]
KGS 1370 - 0102551019 11 - AU 240V
Click pentru a mari
Imagini suplimentare
KGS 1370 - 0102551019 11 - AU 240V
Click pentru a mari
KGS 1370 - 0102551019 11 - AU 240V
Click pentru a mari
KGS 1370 - 0102551019 11 - AU 240V
Click pentru a mari
KGS 1370 - 0102551019 11 - AU 240V
Click pentru a mari

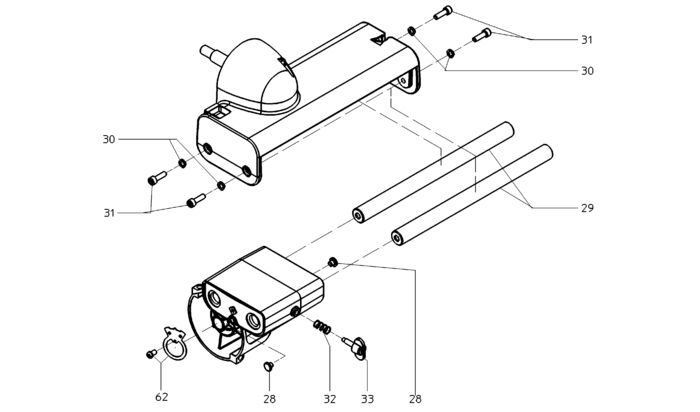

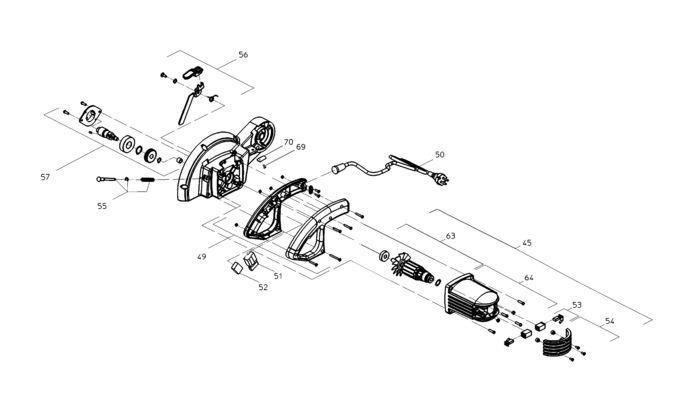

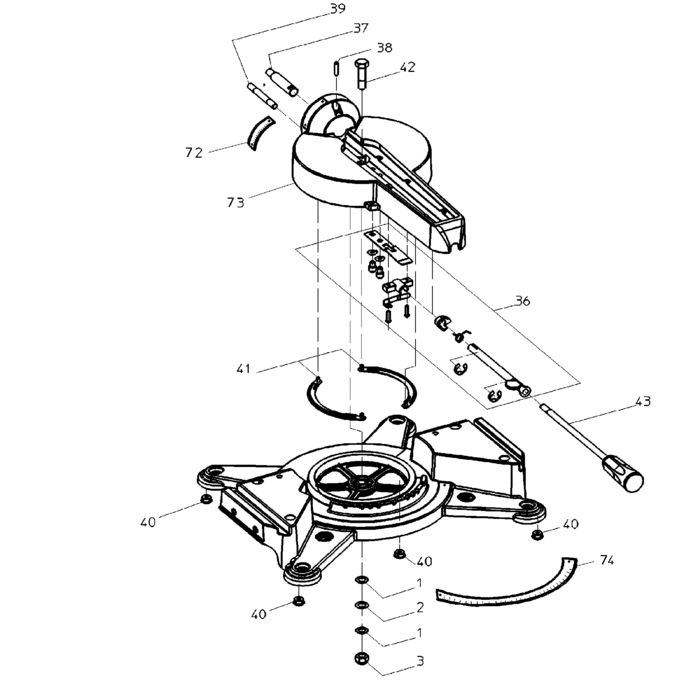

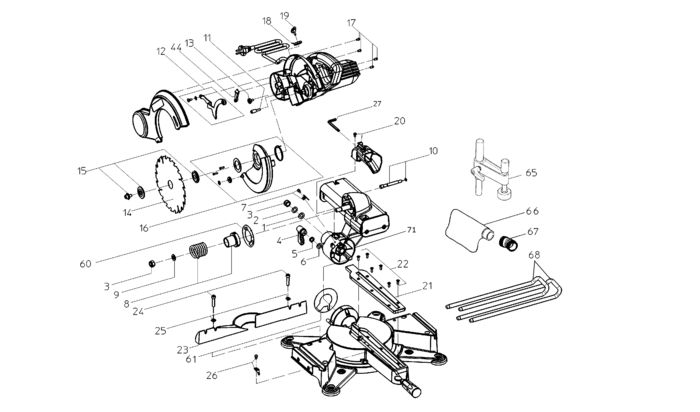

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 Washer (86300016705) Indisponibil Indisponibil
2 1 2 SPRING LOCK WASHER B 12 VERZ. (86301000306) 446 RON
3 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
4 1 1 RATCHET LOCK LEVER, FEMALE M 10 IG 18 MM (87006073730) 4249 RON
5 1 1 SPRING LOCK WASHER B 10 VERZ. (86301002554) 446 RON
6 1 1 MEDIUM WASHER (86300016349) 446 RON
7 1 1 POINTER ET (81382689719) 1340 RON
8 1 1 Spring with guidance (81010689720) 3689 RON
9 1 1 MEDIUM WASHER A 13 (86300084859) 446 RON
10 1 1 TRANSPORT PROTECTION ET (81380689738) 190 RON
11 1 1 SLOTTED HEADLESS SCREW M10 ET (81385689744) 1340 RON
12 1 1 SWIVEL LEVER ASSEMBLY ET (81010689755) 8275 RON
13 1 1 DEFLECTION ROLLE ET (81388689761) 3689 RON
14 1 1 1386706030 - Indisponibil
15 1 1 SEAT+BLADE COLLAR, OUTER ET (81010689780) 5926 RON
16 1 1 81010689771 - Indisponibil
17 1 4 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
18 1 1 KNURLED THUMB NUT, THIN TYPE M 6 (86241149240) 446 RON
19 1 1 THUMB SCREW M 6X50 (GESAMTL.73) (86150663367) 2459 RON
20 1 1 DUST EXTRACTION PORT (81381689790) 3689 RON
21 1 1 KERF PLATE ET (81381689804) 3689 RON
22 1 6 6131091000 - Indisponibil
23 1 1 FENCE ET (81380689819) 24046 RON
24 1 2 Cap screw (86121000812) 446 RON
25 1 2 Washer (86300016322) Indisponibil Indisponibil
26 1 1 POINTER ET (81382689824) 1340 RON
27 1 1 ALLEN HEXAGON KEY (89102689833) 190 RON
28 1 2 PLUG-IN BUFFER 11,6X6,4X8 ET (81388689842) 781 RON
29 1 2 PISTON ROD 20X270 ET (81385689850) 54357 RON
30 1 4 Serrated lock washer (86304084047) 446 RON
31 1 4 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
32 1 1 SPRING ET (87050689861) 781 RON
33 1 1 6150663324 - Indisponibil
36 1 1 TURNTABLE ACCESSORIES (81010690052) Indisponibil Indisponibil
37 1 1 STUD BOLT ET (81385690084) 2459 RON
38 1 1 Grub screw (86162019358) 446 RON
39 1 1 STUD BOLT ET (81385690076) 190 RON
40 1 4 RUBBER FOOT 17,8X14,8X10,8 ET (87057689875) 3018 RON
41 1 2 GLIDE SEGMENT ET (81388690034) Indisponibil Indisponibil
42 1 1 BOLT ET (81385690068) 190 RON
43 1 1 Knurled screw (81010690044) Indisponibil Indisponibil
44 1 1 HOUSING COVER ET (81388689958) 1564 RON
45 1 1 MOTOR, CROSSCUT AND MITRE SAW 1,3KW-230V (81010692101) 9821 RON
49 1 1 HANDLE SHELL KGS 1370 ET (81010692128) 5926 RON
50 1 1 1010690109 - Indisponibil
51 1 1 Switch On/Of KS 210 (88111626945) 8275 RON
52 1 1 CAPACITOR 0,47?F/275V ET (88050689906) 3018 RON
53 1 1 CARBON BRUSH SET KGS 255 230V ET / 4-TEI (81010690028) 8275 RON
54 1 1 END CAP KGS 1370 ET (81010692136) 19236 RON
55 1 1 LOCK ET (81010689925) 190 RON
56 1 1 LOCK ET (81010689933) 5926 RON
57 1 1 TRANSMISSION ASSEMBLY ET (81010689941) 34448 RON
60 1 1 GLIDE PLATE KGS 255 ET (81382692329) 1340 RON
61 1 1 GLIDE PLATE KGS 255 ET (81382692310) 1340 RON
62 1 1 CHIP GUIDE PLATE KGS 255 ET (81382692302) 1340 RON
63 1 1 ARMATURE KGS 255 230V ET (88014691732) 83437 RON
64 1 1 STATOR KGS 1370 230V ET (88014692119) 15993 RON
65 1 1 0910057553 - Indisponibil
66 1 1 DUST COLLECTION BAG KGS1880-METABO (81388691804) 8275 RON
67 1 1 DUST EXTRACTION PORT 44/35-44/32 (81381691566) 190 RON
68 1 1 0910053230 - Indisponibil
69 1 1 Fillister head screw (86123002014) 446 RON
70 1 1 SPACER PLATE BL 1,00X10X28 KGS255(AUS) (81382706052) 1340 RON
71 1 1 TELESCOPIC ARM CASTING KGS 255 (81010702301) 83437 RON
72 1 1 BEVEL TILT SCAL KGS 255 (81141705985) 1564 RON
73 1 1 TURNTABLE KGS 255 (81380706004) 54357 RON
74 1 1 ARBOR TILT SCALE KGS 255 (81141705993) 4249 RON
