Top » Piese de schimb » PIESE METABO » 0250400020 10

HWW 4000/20 N PLUS - 0250400020 10 - EU 230V
[0250400020 10]
HWW 4000/20 N PLUS - 0250400020 10 - EU 230V
Click pentru a mari
Imagini suplimentare
HWW 4000/20 N PLUS - 0250400020 10 - EU 230V
Click pentru a mari
HWW 4000/20 N PLUS - 0250400020 10 - EU 230V
Click pentru a mari

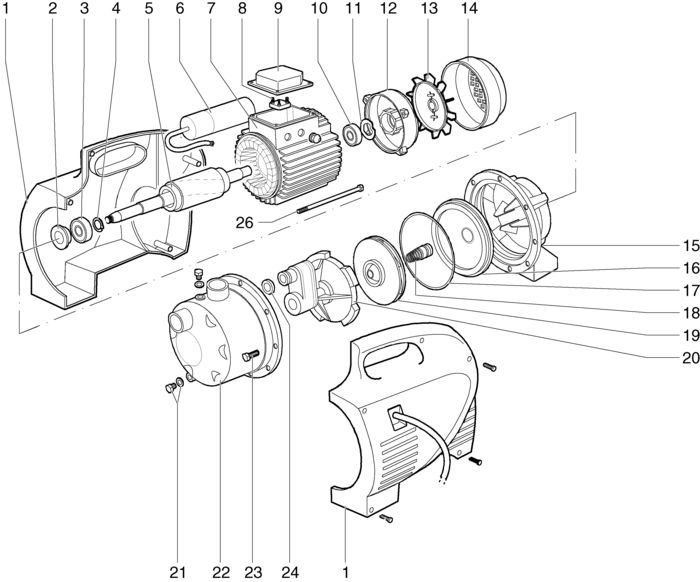

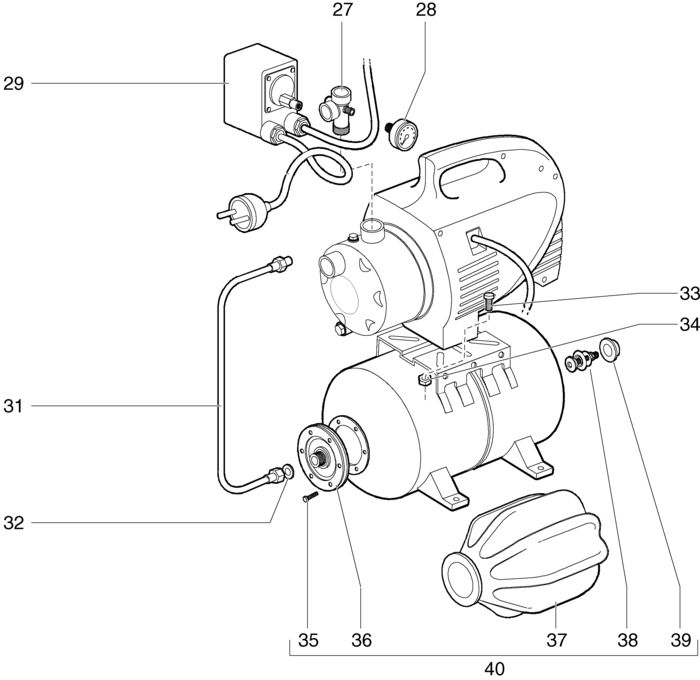

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1341676033 - Indisponibil
2 1 1 SPLASH RING ET (81349148818) Indisponibil Indisponibil
3 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
4 1 1 RETAINING RING ET (86403149070) 446 RON
5 1 1 ARMATURE ET (81349149121) 33553 RON
6 1 1 CAPACITOR 20uF/P2/IP44 ET (88050148921) 15993 RON
7 1 1 STATOR ET (81349149180) 88582 RON
8 1 1 TERMINAL BOARD ET (81349148915) 2459 RON
9 1 1 LID, TERMINAL BOX ET (81349149067) 190 RON
10 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
11 1 1 SPACER WASHER RD 35 ET (81349148893) 781 RON
12 1 1 BEARING CAP ET (81349148869) 5926 RON
13 1 1 COOLING FAN ET (81349148877) 1340 RON
14 1 1 FAN COVER ET (81349148885) 3018 RON
15 1 1 MOTOR BASE ET (81343610838) 18341 RON
16 1 1 CAP, MOTOR BASE, STAINL. STEEL ET (81342186811) 13756 RON
17 1 1 O-RING 165X3,5 ET (7632149217) 105 RON
18 1 1 DUOCONE SEAL (4SCHR) /ET (81349131559) 7157 RON
19 1 1 IMPELLER ET (81349149130) 13756 RON
20 1 1 VENTURI DIFFUSOR ET (81349102419) 19236 RON
21 1 1 SCREW WITH GASKET 3/8" ET (81003655802) 3018 RON
22 1 1 PUMP CASING, STAINLESS STEEL ET (81342186820) 68673 RON
23 1 8 Hex head screw (86103001127) 446 RON
24 1 1 O-RING 23,81X2,62 ET (87632149381) 446 RON
26 1 4 MOTOR TIE ROD M 5X132 ET (81349148850) 446 RON
27 1 1 DISTRIBUTOR 5-FACH ET (81349149040) 13756 RON
28 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823127590) 11519 RON
29 1 1 PRESSURE SWITCH 1/4"IG (2,5/4,0 BAR) M.D (81349148982) 26730 RON
31 1 1 PRESSURE HOSE 600 MM 1" ?BERW. 1" AG /ET (87853622510) 26730 RON
32 1 1 GASKET 30X23X3 ET (87631131454) 1340 RON
33 1 4 Hex head screw (86103001178) Indisponibil Indisponibil
34 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
35 1 6 Hex head screw (86103001127) 446 RON
36 1 1 FLANGE CAP 1 ( cod vechi 81342712521 ) FLANGE CAP 1" 24/50/100LT AG ET ZILMET (81349676827) Indisponibil Indisponibil
37 1 1 RUBBER BAG 24 L ET (81349635611) 19236 RON
38 1 1 7830635607 - Indisponibil
39 1 1 DUST CAP ET (81349635557) 446 RON
40 1 1 1349676636 - Indisponibil
