Top » Piese de schimb » PIESE METABO » 0250330110 10

HWW 3300/20 S - 0250330110 10 - EU 230V
[0250330110 10]
HWW 3300/20 S - 0250330110 10 - EU 230V
Click pentru a mari
Imagini suplimentare
HWW 3300/20 S - 0250330110 10 - EU 230V
Click pentru a mari
HWW 3300/20 S - 0250330110 10 - EU 230V
Click pentru a mari

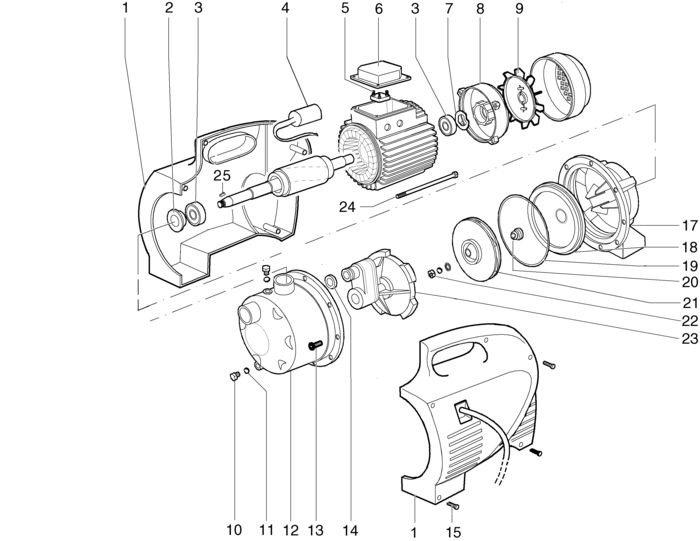

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING HALF 2-TLG. MIT KABELDURCHLASS (81341707460) 15993 RON
2 1 1 SPLASH RING P 3000 S (81349719092) 669 RON
3 1 2 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
4 1 1 CAPACITOR 16?F 450V KABEL160L. P3000G (88050700225) 4249 RON
5 1 1 TERMINAL BOARD P 3000 S (81349719203) 2459 RON
6 1 1 LID, TERMINAL BOX P 3000/3300/4000 S (81349719084) 1340 RON
7 1 1 SPACER WASHER RD 35 ET (81349148893) 781 RON
8 1 1 BEARING CAP P 3000 S (81349719076) 488 RON
9 1 1 COOLING FAN P 3000 S (81349719068) 1340 RON
10 1 2 THREADED PLUG M10x1 (86109719100) 190 RON
11 1 2 O-RING 8,2X2,0 P 3000 S (87632718980) 669 RON
12 1 1 PUMP CASING, STAINLESS STEEL P 3000 S (81342718970) 34448 RON
13 1 8 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
14 1 1 O-RING 26 X 2,2 P 3000 S (87632718998) 781 RON
15 1 6 Fillister head screw w.fill. head screw (86186602763) 446 RON
17 1 1 MOTOR BASE P 3000 S (81343719058) 15993 RON
18 1 1 CAP, MOTOR BASE, STAINL. STEEL P 3000 S (81342719046) 10288 RON
19 1 1 O-RING 162 x 3 P 3000 S (87632719005) 105 RON
20 1 1 DUOCONE SEAL P 3000 S (81349719033) 5926 RON
21 1 1 IMPELLER P 3300 P 4000 ET (81349719254) 5926 RON
23 1 1 1349719017 - Indisponibil
24 1 4 MOTOR TIE ROD M5X136 P3000G (81349700197) 669 RON
25 1 1 FEATHER KEY A 4X4X10 ET (86721152349) 446 RON
27 1 1 DISTRIBUTOR 5-FACH (87871712597) 8275 RON
28 1 1 PRESSURE GAUGE 0-6 BAR/ AG=1/4" ET (87823712477) 955 RON
29 1 1 PRESSURE SWITCH 1/4"IG (1,4/2,8 BAR) PS- (81349712489) 19236 RON
31 1 1 PRESSURE HOSE L=530MM/ 1" ET (87853712501) 15993 RON
32 1 1 GASKET 30X23X3 ET (87631131454) 1340 RON
33 1 2 Hex head screw (86103001178) Indisponibil Indisponibil
34 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
36 1 1 FLANGE CAP 1 ( cod vechi 81342712521 ) FLANGE CAP 1" 24/50/100LT AG ET ZILMET (81349676827) Indisponibil Indisponibil
37 1 1 RUBBER BAG HWW (81349718797) 18341 RON
38 1 1 AIR VALVE 4 TLG. ET (87830712539) 4249 RON
39 1 1 CAP RD=7,1mm ET (81349712802) 190 RON
40 1 1 PRESSURE VESSEL 1"/ MITTE ET (81349712519) 39481 RON
