Top » Piese de schimb » PIESE METABO » 0250330049 10

HWW 3300/20 K - 0250330049 10 - EU 230V
[0250330049 10]
HWW 3300/20 K - 0250330049 10 - EU 230V
Click pentru a mari
Imagini suplimentare
HWW 3300/20 K - 0250330049 10 - EU 230V
Click pentru a mari
HWW 3300/20 K - 0250330049 10 - EU 230V
Click pentru a mari

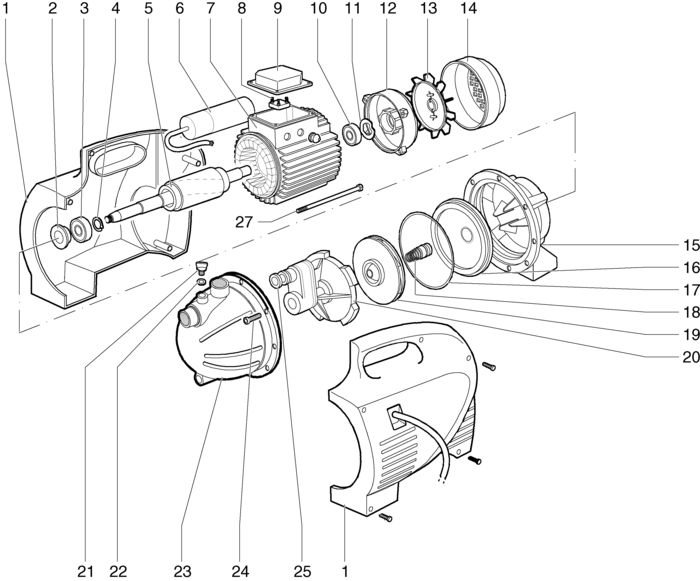

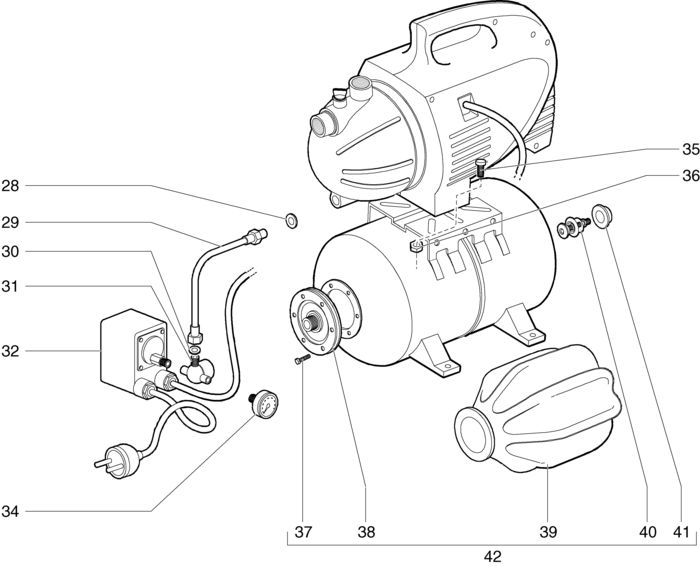

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1341676033 - Indisponibil
2 1 1 SPLASH RING ET (81349148818) Indisponibil Indisponibil
3 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
4 1 1 RETAINING RING ET (86403149070) 446 RON
5 1 1 ARMATURE ET (81345185670) 30980 RON
6 1 1 CAPACITOR 12,5uF/450V/P2/IP44 ET (88050102468) 10288 RON
7 1 1 1349185667 - Indisponibil
8 1 1 TERMINAL BOARD ET (81349148915) 2459 RON
9 1 1 LID, TERMINAL BOX ET (81349149067) 190 RON
10 1 1 DEEP GROOVE BALL BEARING (cod vechi 7100083463 ) (143115730) 2459 RON
11 1 1 BALL BEARING SHIM RING 31,7X26,5X0,4 (87140086759) 781 RON
12 1 1 BEARING CAP RD 95 MM ET (81345185638) 5479 RON
13 1 1 COOLING FAN RD 109 BOHRG. RD 12 ET (81341185650) 105 RON
14 1 1 FAN COVER 125X5 ET (81342185645) 2459 RON
15 1 1 MOTOR BASE ET (81343186807) 18341 RON
16 1 1 CAP, MOTOR BASE, STAINL. STEEL ET (81342186811) 13756 RON
17 1 1 O-RING 165X3,5 ET (7632149217) 105 RON
18 1 1 DUOCONE SEAL (4SCHR) /ET (81349131559) 7157 RON
19 1 1 IMPELLER ET (81349102435) 13756 RON
20 1 1 VENTURI DIFFUSOR ET (81349102419) 19236 RON
21 1 1 THREADED PLUG ET (81349635255) 105 RON
22 1 1 O-RING 13,10X2,62 ET (87632635243) 781 RON
23 1 1 PUMP CASING ET (81341652800) 24046 RON
24 1 8 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
25 1 1 O-RING 24,99X3,53 70 SHORE (87632193097) 446 RON
27 1 4 MOTOR TIE ROD M 5X132 ET (81349148850) 446 RON
28 1 1 O-RING 15X2 70 SHORE (87632176168) 446 RON
29 1 1 PRESSURE HOSE 3/8"IG/AG 250LANG ET (87853635590) 955 RON
30 1 1 FLAT PACKING 19X11X2,15 ET (87631676698) 446 RON
31 1 1 DISTRIBUTOR ET (81349635581) 18341 RON
32 1 1 PRESSURE SWITCH 1/4"IG (1,4/2,8 BAR) M.D (81349653628) 2848 RON
34 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823127590) 11519 RON
35 1 4 Hex head screw (86103001178) Indisponibil Indisponibil
36 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
37 1 6 Hex head screw (86103001127) 446 RON
38 1 6 1342635578 - Indisponibil
39 1 1 RUBBER BAG 24 L ET (81349635611) 19236 RON
40 1 1 7830635607 - Indisponibil
41 1 1 DUST CAP ET (81349635557) 446 RON
42 1 1 PRESSURE VESSEL 24L 1"ANSCHLUSS ET ZILM (81349676628) 4442 RON
