Top » Piese de schimb » PIESE METABO » 0250550030 10

HWA 5500 M - 0250550030 10 - EU 230V
[0250550030 10]
HWA 5500 M - 0250550030 10 - EU 230V
Click pentru a mari
Imagini suplimentare
HWA 5500 M - 0250550030 10 - EU 230V
Click pentru a mari

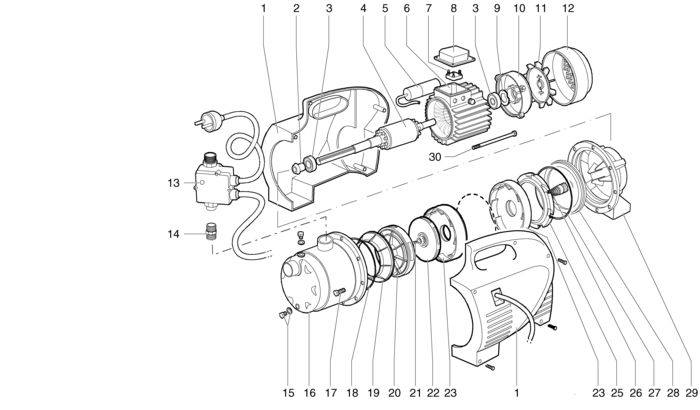

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1341676033 - Indisponibil
2 1 1 SPLASH RING ET (81349148818) Indisponibil Indisponibil
3 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
4 1 1 ARMATURE ET (81349676520) 54357 RON
5 1 1 CAPACITOR 20uF/P2/IP44 ET (88050148921) 15993 RON
6 1 1 STATOR ET (81349148842) 78180 RON
7 1 1 TERMINAL BOARD ET (81349676539) 488 RON
8 1 1 LID, TERMINAL BOX ET (81349149067) 190 RON
9 1 1 SPACER WASHER RD 35 ET (81349148893) 781 RON
10 1 1 BEARING CAP ET (81349148869) 5926 RON
11 1 1 COOLING FAN ET (81349148877) 1340 RON
12 1 1 FAN COVER ET (81349148885) 3018 RON
13 1 1 1349676857 - Indisponibil
14 1 1 0903018402 - Indisponibil
15 1 2 6109610443 - Indisponibil
16 1 1 PUMP CASING ET (81349676598) 78180 RON
17 1 8 Hex head screw (86103001178) Indisponibil Indisponibil
18 1 1 O-RING ET (87632676608) 1340 RON
19 1 1 ADAPTOR ET (81349676547) 8275 RON
20 1 1 COVER, PUMP CASING ET (81349676555) 13756 RON
21 1 1 IMPELLER STOP SCREW ET (81349148729) 781 RON
22 1 5 IMPELLER ET (81349148745) 8275 RON
23 1 4 PEELER ET (81349148753) 11519 RON
25 1 1 FEED WHEEL ET (81349676660) 5926 RON
26 1 1 DUOCONE SEAL ET (81349676679) 11519 RON
27 1 1 O-RING 165X3,5 ET (7632149217) 105 RON
28 1 1 LOCK ET (81349676687) 13756 RON
29 1 1 MOTOR BASE ET (81343610838) 18341 RON
30 1 4 MOTOR TIE ROD M 5X132 ET (81349148850) 446 RON
