Top » Piese de schimb » PIESE METABO » 0122100049 10

HDM 1000 - 0122100049 10 - SA 220V / 60Hz
[0122100049 10]
HDM 1000 - 0122100049 10 - SA 220V / 60Hz
Click pentru a mari
Imagini suplimentare
HDM 1000 - 0122100049 10 - SA 220V / 60Hz
Click pentru a mari
HDM 1000 - 0122100049 10 - SA 220V / 60Hz
Click pentru a mari
HDM 1000 - 0122100049 10 - SA 220V / 60Hz
Click pentru a mari

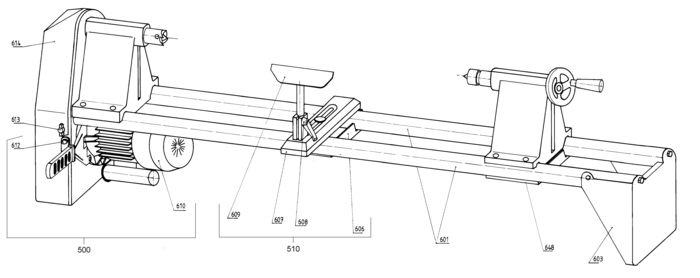

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
500 1 1 MOTOR, WOOD TURNING LATHE HD 0,67 WN 23 (81012619282) 14839 RON
510 1 1 1012001351 - Indisponibil

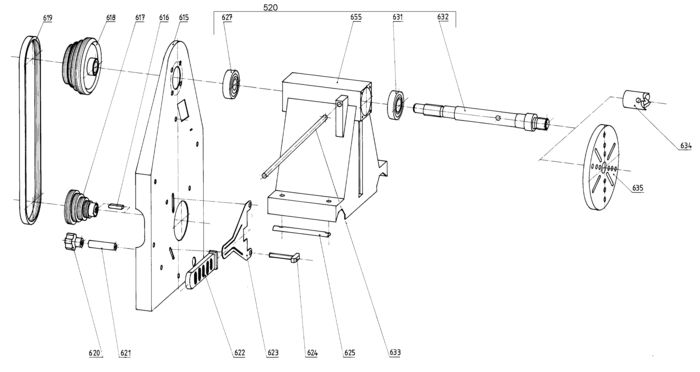

520 1 1 HEAD STOCK, PRE-ASSEMBLE (82012007887) 46975 RON

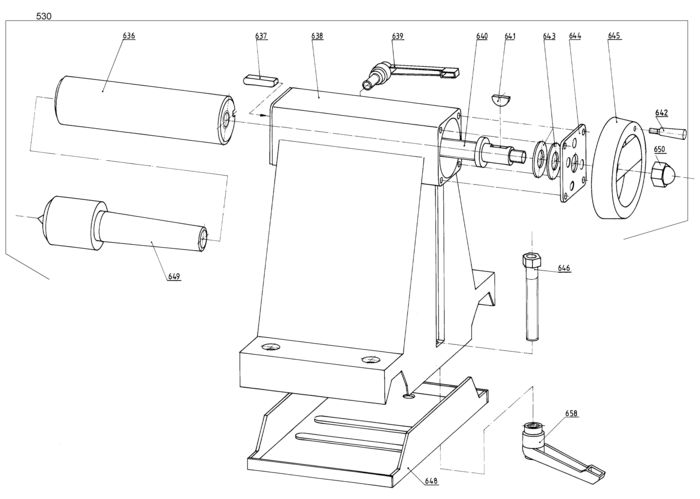

530 1 1 FOOTSTOC M.K?RNERSPITZE /ET (82012004101) 127394 RON
601 1 2 GUIDE TUBE RD 50X2,5X1430 GEBOHRT (81392070121) 21361 RON
603 1 1 1392070091 - Indisponibil
606 1 1 TENSION PLATE BL 2,5X192X252 (81392070105) 5479 RON
607 1 1 TOOL REST CARRIER (81390076335) 2848 RON
608 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
609 1 1 TOOL REST HOLDER ROHR 12X12X1X12 fix (81492074400) 19236 RON
610 1 1 ELECTRIC MOTOR 230/1/50 3000UPM B5/16UF/ (88012007370) 9821 RON
612 1 1 SWITCH SSK WN 230V K670/STZ/KA12 (88131077280) 34448 RON
613 1 1 T-HANDLE ACTUATOR ASSEMBLY (82012004012) 7157 RON
614 1 1 DRIVE COVER (81391069367) 11519 RON
615 1 1 HOUSING PLATE M.ZYLINDERSTIFT (82012007879) 21361 RON
616 1 1 Parallel key (86721074089) 446 RON
617 1 1 POLY-RIB PULLEY RDA 58X63 5JX 58 RDI 14 (87240069991) 18341 RON
618 1 1 POLY-RIB PULLEY RDA113X63 RDIM20X1,5 4 S (87240070000) 21361 RON
619 1 1 POLY-RIB BELT 4 PJ 762 (87233074149) 4249 RON
620 1 1 STARKNOB SCREW M 8X80 VERZ. (87001629438) 1564 RON
621 1 1 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643) 105 RON
622 1 1 HANDLE, ELEKTRA BECKUM F?R FLACHSTAHL 2 (87006028670) 2459 RON
623 1 1 MOTOR TENSIONING LEVER BL 2,99X108X117 (81392073260) 3018 RON
624 1 1 SQUARE NUT (86218005126) 446 RON
625 1 4 TUBE SEGMENT, WITH THREAD MIT GEWINDE M (81390076343) 488 RON
627 1 1 DEEP GROOVE BALL BEARING 20X52X15 6304-2 (87100074103) 5926 RON
631 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205-2 (87100010202) 488 RON
632 1 1 1395070050 - Indisponibil
633 1 1 LOCK BAR (89103017960) 105 RON
634 1 1 DRIVE CENTRE RD 30X50 (81495024209) 19236 RON
635 1 1 FACE PLATE RD 150 / M20X1,5 IG (81390076351) 18341 RON
636 1 1 CENTRE SLEEVE RD 40 h8X145 (81495024241) 26730 RON
637 1 1 FEATHER KEY A 10X8X28 (86721074070) 781 RON
638 1 1 FOOTSTOCK CASING M.F?HRUNGSBUCHSE (82012004020) 54357 RON
639 1 1 RATCHET LOCK LEVER, MALE M 8X25 (87006088990) 3689 RON
640 1 1 HANDWHEEL SPINDLE RD 25X110 (81485070024) 955 RON
641 1 1 WOODRUFF KEY (86720008538) 446 RON
642 1 1 7004076740 - Indisponibil
643 1 2 SLIDE WASHER DA 30X DI 14X2 (81391074182) 781 RON
644 1 1 SPINDLE COVER PLATE BL 2,99X56X56 (81392070075) 781 RON
645 1 1 HANDWHEEL RD 80X14 H7 NUT 5 P9 GRIFFAUFN (87003074115) 18341 RON
646 1 2 HEXAGON HEAD SCREW M 10X70 VERZ. (86101000565) 781 RON
648 1 1 FOOTSTOCK TENSION PLATE BL 2,5X192X252 (81392070113) 5926 RON
649 1 1 REVOLVING CENTRE (82012004110) 2848 RON
650 1 1 CAP NU (86201074264) 105 RON
655 1 1 FOOTSTOCK CASING F.SPINDELSTOCK (81380622340) 46975 RON
658 1 2 RATCHET LOCK LEVER, FEMALE M 10 IG 18 MM (87006073730) 4249 RON
