Top » Piese de schimb » PIESE METABO » 0230020086 10

GECO 200/8/24 W - 0230020086 10 - EU 230V
[0230020086 10]
GECO 200/8/24 W - 0230020086 10 - EU 230V
Click pentru a mari
Imagini suplimentare
GECO 200/8/24 W - 0230020086 10 - EU 230V
Click pentru a mari
GECO 200/8/24 W - 0230020086 10 - EU 230V
Click pentru a mari

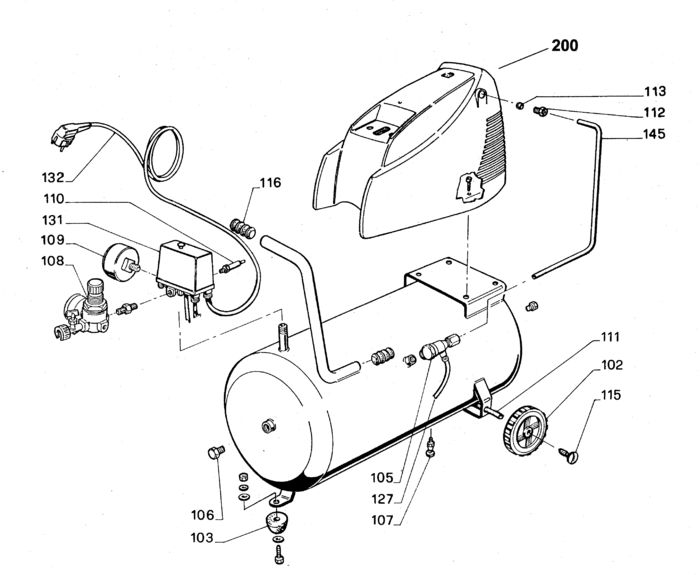

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 WHEEL ? 125 ET (87270651482) 488 RON
103 1 1 RUBBER FOOT RD 60X30 (87057611116) 7157 RON
105 1 1 CHECK VALVE 1/2" x 10mm (87831634329) 18341 RON
107 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
108 1 1 7822009519 - Indisponibil
109 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
110 1 1 SAFETY VALVE 8 BAR ET (87833158397) 7157 RON
112 1 1 COMPRESSION RING 10 MM ET (87875650992) 2459 RON
113 1 1 7874156617 - Indisponibil
115 1 1 CLIP D 10 ET (81319651493) 190 RON
116 1 1 PLUG 17/20 ET (81311611590) 446 RON
127 1 1 7853185960 - Indisponibil
131 1 1 AUTOM. PRESSURE CONTROL SWITCH 6-8 BAR 2 (88101149774) 2848 RON
145 1 1 PRESSURE LINE ET (81319651043) 8275 RON
1000 1 1 PISTON-CONNECTING ROD SET ET (81010634870) 4442 RON
1003 1 1 CYLINDER HEAD ET (81319634858) 13756 RON
1030 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205-2 (87100093418) 5926 RON
1046 1 1 FLYWHEEL ET (81001648850) 4249 RON
1049 1 1 COVER ET (81311651036) 13756 RON
1062 1 1 CYLINDER GASKET ET (81319634890) 2459 RON
1064 1 1 CYLINDER HEAD GASKET ET (81319156506) 7157 RON
