Top » Piese de schimb » PIESE METABO » 09225280

FSX 200 Intec - 09225280 - BR 230V
[09225280]
FSX 200 Intec - 09225280 - BR 230V
Click pentru a mari
Imagini suplimentare
FSX 200 Intec - 09225280 - BR 230V
Click pentru a mari

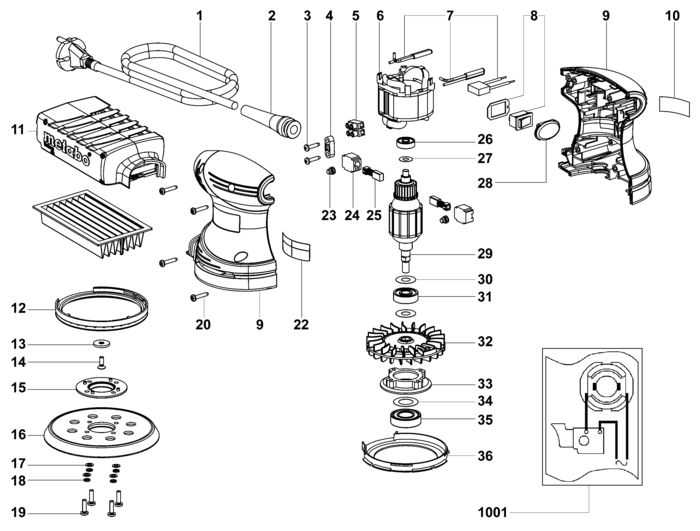

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cable w.socket (344497130) 5926 RON
2 1 1 Cable sleeve (344101140) 105 RON
3 1 2 Fillister head screw (141123450) 446 RON
4 1 1 Cable clip (343392970) 446 RON
5 1 1 Terminal rail (343050140) 781 RON
6 1 1 Field coil assembly w.field coil,230V (311010580) Indisponibil Indisponibil
7 1 1 Strand set condensor (344496860) 105 RON
8 1 1 Switch (343408380) 1340 RON
9 1 1 Housing w.cover (343392680) 955 RON
10 1 1 Metabo label,FSX 200 Intec (338120540) 669 RON
11 1 1 316040720 - Indisponibil
12 1 1 Brake ring (344097650) 781 RON
13 1 1 Washer (339006950) Indisponibil Indisponibil
14 1 1 Countersunk screw (141112180) 446 RON
15 1 1 Intermediate flange (343392810) Indisponibil Indisponibil
16 1 1 Backing pad (339160720) Indisponibil Indisponibil
17 1 4 Washer (141151860) Indisponibil Indisponibil
18 1 4 Lock washer (141150350) Indisponibil Indisponibil
19 1 1 Fillister head screw (141113040) 446 RON
20 1 4 Fillister head screw (141123430) 446 RON
22 1 1 RATING PLATE (338047660) 446 RON
23 1 2 Rubber plug (344097680) 1340 RON
24 1 1 Brush holder complete (316040700) 446 RON
25 1 1 Carbon brush set (316040690) 2459 RON
26 1 1 Ball bearing,6x19x6 cod vechi 143115170 (143115690 ) 190 RON
27 1 1 Washer (141156290) 446 RON
28 1 1 Switch guard (344097640) 446 RON
29 1 1 Armature cpl. 230 V (310008990) Indisponibil Indisponibil
30 1 2 Washer (141151070) 781 RON
31 1 1 Ball bearing, 9x26x8 (143114990) 5926 RON
32 1 1 Fan (330001760) 3689 RON
33 1 1 Bearing flange (315202350) 1564 RON
34 1 1 Washer (141156310) 446 RON
35 1 1 BALL BEARING, 15x32x9 (143110220) Indisponibil Indisponibil
36 1 1 Baffle (343392800) 669 RON
1001 1 1 338504500 - Indisponibil
