EOB 9228 - 09228001 - EU 230V
[09228001]
EOB 9228 - 09228001 - EU 230V
Click pentru a mari
Imagini suplimentare
EOB 9228 - 09228001 - EU 230V
Click pentru a mari

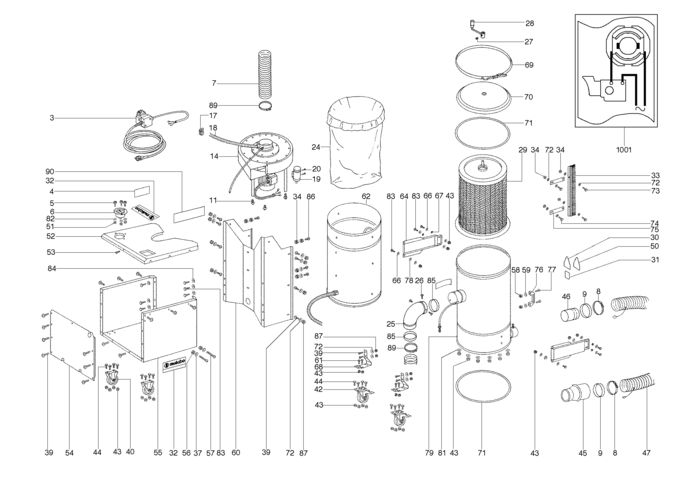

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 Switch (343406050) 108379 RON
4 1 1 Rating plate (338041580) 446 RON
5 1 1 Fillister head screw (141113200) 446 RON
6 1 6 Gauge (341145590) 14839 RON
7 1 1 Hose (344094410) 117663 RON
8 1 1 Clamping band (339003570) 2459 RON
9 1 1 Rubber sleeve (344094430) 190 RON
11 1 3 Hexagon screw (141110350) 105 RON
14 1 1 Motor compl. (317001820) 295725 RON
17 1 1 Clamping band (339005840) 3018 RON
18 1 1 regulating hose (344094420) 21361 RON
19 1 1 Condenser motor (343253040) 33553 RON
20 1 1 Cap screw (141111200) 446 RON
24 1 1 630896000 - Indisponibil
25 1 1 Extraction elbow (343369190) 46975 RON
26 1 3 Self-tap. fill. h. screw (141118130) 446 RON
27 1 1 Grub screw (141112770) 446 RON
28 1 1 Crank handle (341112270) 26730 RON
29 1 1 Pleated filter (344094760) 392698 RON
30 1 1 Indication label (338108990) 2459 RON
31 1 1 GS APPROVAL SEAL (338108980) 1340 RON
32 1 2 Metabo label (338116260) 781 RON
33 1 1 Cleaning brush (341145610) 13756 RON
34 1 8 Hexagonal nut (141130100) 446 RON
37 1 2 Washer (141150020) 446 RON
39 1 29 Screw M6x12 (341702740) 2459 RON
40 1 2 Wheel (341200920) 21361 RON
42 1 2 Wheel (341200930) 34448 RON
43 1 20 Hexagonal lock nut (141130950) 446 RON
44 1 16 Hexagon head screw (141113310) 446 RON
45 1 1 630841000 - Indisponibil
46 1 1 Nozzle (339005850) 15993 RON
47 1 1 630895000 - Indisponibil
50 1 1 Indication label (338109630) 2459 RON
51 1 3 Hexagonal lock nut (141131220) 446 RON
52 1 1 Cover (339127610) 64311 RON
53 1 1 Self-tap. fill. h. screw (141119810) 781 RON
54 1 1 Face sheet metal (339127590) 34448 RON
55 1 1 Housing (339127620) 14839 RON
56 1 2 Hexagonal nut (141130090) 446 RON
57 1 2 Hexagon head screw (141121460) 446 RON
58 1 2 Hexagonal lock nut (141130650) 781 RON
59 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
60 1 1 Clamp (339127630) 14839 RON
61 1 4 Screw M8x16 (341702750) 190 RON
62 1 1 Bottom container (339127640) 245282 RON
64 1 1 bracket (339127580) 3698 RON
66 1 12 Washer (141151340) 446 RON
67 1 4 Serrated lock washer (141150440) 446 RON
68 1 2 Retraining sheet (339127570) 54357 RON
69 1 1 Clamping ring (339005950) 41718 RON
70 1 1 Cover (339127660) 41718 RON
71 1 1 Gasket (344094770) 3689 RON
72 1 1 Serrated lock washer (141150430) 446 RON
73 1 2 Hexagon head screw (141120350) 446 RON
74 1 2 Hexagon head screw (141110280) 446 RON
75 1 2 Cover plate (339127670) 955 RON
76 1 1 Handle (314000760) 5926 RON
77 1 2 Hexagon head screw (141113290) 446 RON
78 1 2 PLASTIC WASHER (344000150) 781 RON
79 1 1 Top container (339127650) 343820 RON
81 1 1 Washer (141150810) 446 RON
82 1 3 Washer (141150010) 446 RON
83 1 12 Hexagon head screw (141114860) 781 RON
84 1 6 Spring washer (141150290) 446 RON
85 1 1 Rubber sleeve (344094920) 190 RON
86 1 2 Hexagon head screw (141110270) 446 RON
87 1 13 141130370 - Indisponibil
89 1 1 Clamping band (339005990) 3018 RON
90 1 1 Metabo character (338116510) 446 RON
1001 1 1 338502740 - Indisponibil
