Top » Piese de schimb » PIESE METABO » 09228000

EOB 9228 - 09228000 - EU 230V
[09228000]
EOB 9228 - 09228000 - EU 230V
Click pentru a mari
Imagini suplimentare
EOB 9228 - 09228000 - EU 230V
Click pentru a mari

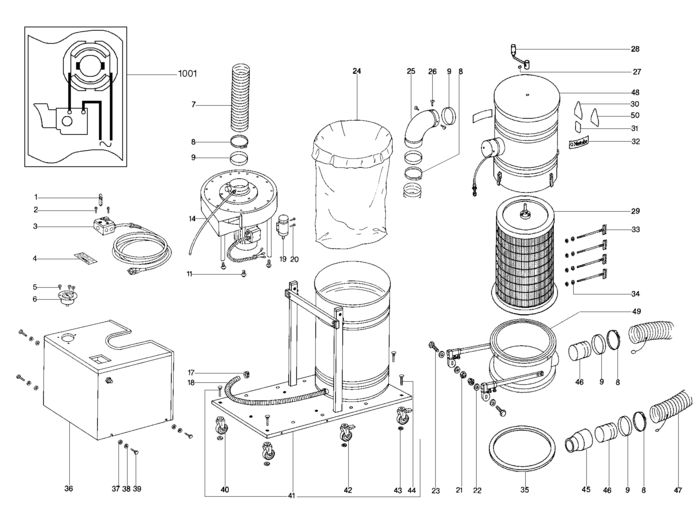

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Circuit breaker (343405890) 11519 RON
2 1 2 Self-tap. fill. h. screw (141113180) 446 RON
3 1 1 343405880 - Indisponibil
4 1 1 Rating plate (338041580) 446 RON
5 1 3 Self-tap. fill. h. screw (141119810) 781 RON
6 1 1 Manometer (341145010) 108379 RON
7 1 1 Hose (344094410) 117663 RON
8 1 1 Clamping band (339003570) 2459 RON
9 1 2 Rubber sleeve (344094430) 190 RON
11 1 3 Hexagon head screw (141113460) 446 RON
14 1 1 Motor compl. (317001820) 295725 RON
17 1 1 Clamping band (339005840) 3018 RON
18 1 1 regulating hose (344094420) 21361 RON
19 1 1 Condenser motor (343253040) 33553 RON
20 1 2 Fill. head screw(DIN 7985) (141119890) 446 RON
21 1 2 Hexagonal lock nut (141131110) 446 RON
22 1 4 Washer (141150140) 446 RON
23 1 2 Hex head screw (141113420) 446 RON
24 1 1 630896000 - Indisponibil
25 1 1 Extraction elbow (343369190) 46975 RON
26 1 3 Self-tap. fill. h. screw (141118130) 446 RON
27 1 1 Grub screw (141112770) 446 RON
28 1 1 Crank handle (341112270) 26730 RON
29 1 1 Pleated filter (344094350) 442359 RON
30 1 1 Indication label (338108990) 2459 RON
31 1 1 GS APPROVAL SEAL (338108980) 1340 RON
32 1 2 Metabo character (338116510) 446 RON
33 1 4 Cleaning brush (341145070) 21361 RON
34 1 8 Hexagonal nut (141130100) 446 RON
35 1 1 Gasket (344094380) 955 RON
36 1 1 Sound damp. hood (341145020) 14839 RON
37 1 4 Washer (141150020) 446 RON
38 1 4 Spring washer (141150270) 446 RON
39 1 4 Hexagon head screw (141116100) 446 RON
40 1 2 Wheel (341200850) 19236 RON
41 1 1 Cont. w. carriage (316024050) 295725 RON
42 1 2 Wheel (341200860) 21361 RON
43 1 4 Hexagonal nut (141131010) 446 RON
44 1 4 Truss head screw (141111570) 446 RON
45 1 1 Hose sleeve (344092340) 18341 RON
46 1 1 Nozzle (339005850) 15993 RON
47 1 1 630895000 - Indisponibil
48 1 1 Filter cont. top (339127160) 245282 RON
49 1 1 Intermediate ring (339127170) 442359 RON
50 1 1 Indication label (338109630) 2459 RON
1001 1 1 338502740 - Indisponibil
