Electromagnet. Drill Stand M100 - 27101000 - -
[27101000]
Electromagnet. Drill Stand M100 - 27101000 - -
Click pentru a mari
Imagini suplimentare
Electromagnet. Drill Stand M100 - 27101000 - -
Click pentru a mari

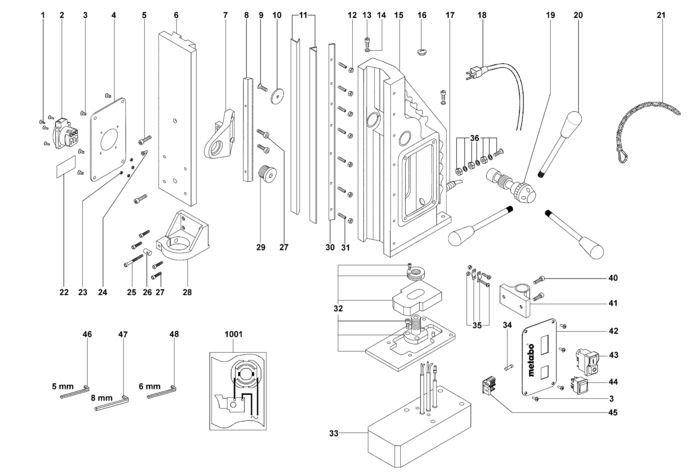

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 Countersunk screw (141112180) 446 RON
2 1 1 Power socket (344498150) 21361 RON
3 1 8 Countersunk screw (141123840) 669 RON
4 1 1 Cover (339134240) 11519 RON
5 1 2 Cap screw (141113900) 781 RON
6 1 1 Sliding carriage (315417240) 295725 RON
7 1 1 Motor flange (315417230) 41718 RON
8 1 1 Rack (341147960) 442359 RON
9 1 1 Flat headed screw (141123850) 105 RON
10 1 1 Washer (339007290) 34448 RON
11 1 1 Guide strip set (316044370) 41718 RON
12 1 7 Plain hexagon nut (141130030) 446 RON
13 1 4 Cheese-head screw (141114010) 446 RON
14 1 4 Lock washer (141150750) 446 RON
15 1 1 Housing (315417210) 688984 RON
16 1 1 Dummy plug (343030210) 3018 RON
17 1 1 Cable sleeve (344098630) 955 RON
18 1 1 Cable w.UL/CSA-plug (344498160) 41718 RON
19 1 1 Gear-wheel shaft compl. (316044380) 88582 RON
20 1 3 Handle (314001190) 26730 RON
21 1 1 Chain (341147990) 26730 RON
22 1 1 Rating plate (338053160) 446 RON
23 1 4 Hexagonal nut (141130070) 446 RON
24 1 1 141114660 - Indisponibil
25 1 1 Cap screw (141119100) 781 RON
26 1 1 Bolt (341515420) 2459 RON
27 1 6 Cap screw (141113850) 781 RON
28 1 1 flange (315417250) 14839 RON
29 1 1 Screw (341704470) 1340 RON
30 1 1 Guide strip (341147970) 19236 RON
31 1 7 Grub screw (141123860) 781 RON
32 1 7 Foot turnable (316044360) 14839 RON
33 1 1 Magnet block (341147950) 343820 RON
34 1 1 Fuse (142110150) 3689 RON
35 1 1 STRESS RELIEVE (341147980) 3689 RON
36 1 1 earth connection (316045250) 3018 RON
40 1 2 Cap screw (141113990) 781 RON
41 1 1 Kugelstuetze (315417260) 49212 RON
42 1 1 Face sheet metal (339160830) 49212 RON
43 1 1 Electronic switch,120 V (343409070) 15993 RON
44 1 1 Switch (343408990) 5926 RON
45 1 1 Electronic unit, 50/60Hz (343082210) 15993 RON
46 1 1 Cranked wrench key (344161520) 781 RON
47 1 1 Cranked wrench key (344163540) 11519 RON
48 1 1 Hexagonal key (344161510) 781 RON
1001 1 1 338504930 - Indisponibil
