Electromagnet. Drill Stand - 00732000 - EU 230V
[00732000]
Electromagnet. Drill Stand - 00732000 - EU 230V
Click pentru a mari
Imagini suplimentare
Electromagnet. Drill Stand - 00732000 - EU 230V
Click pentru a mari

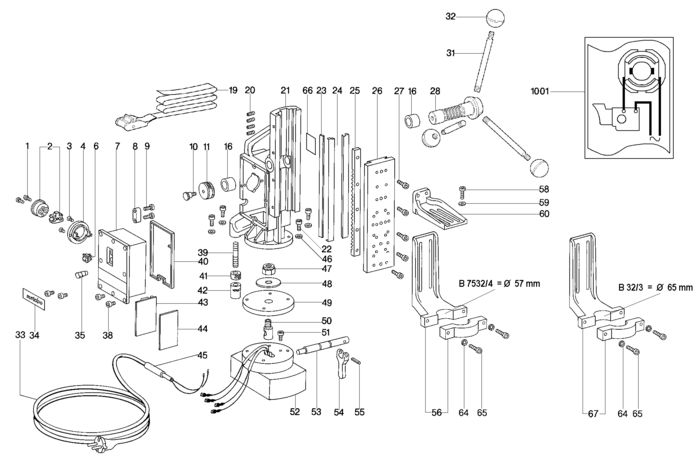

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Fillister head screw (141110470) 446 RON
2 1 1 Socket body (344491420) 21361 RON
3 1 2 Countersunk screw (141120580) 105 RON
4 1 1 Plug mounting (344491400) 3689 RON
6 1 1 Switch (343405460) 18341 RON
7 1 1 Cover (343367140) 34448 RON
8 1 1 Cable clip (343366890) 488 RON
9 1 2 Self-tap. fill. h. screw (141119380) 446 RON
10 1 1 Knurled screw (141120570) 1340 RON
11 1 1 Depth scale (316030920) 30980 RON
16 1 1 Bronze bearing (320050350) 7157 RON
19 1 1 Safety band (341146380) 21361 RON
20 1 4 Set screw (341702430) 1340 RON
21 1 1 315413340 - Indisponibil
22 1 4 Cap screw (141113890) 781 RON
23 1 1 Pressure strip (341144640) 5479 RON
24 1 2 Guide strip (341144650) 18341 RON
25 1 1 Rack (341144660) 59166 RON
26 1 1 Sliding carriage (315413380) 127394 RON
27 1 5 Cap screw (141113720) 781 RON
28 1 1 Feed shaft (340050440) 78180 RON
31 1 3 Bolt (341515210) 7157 RON
32 1 3 Sperical knob (143170070) 2459 RON
33 1 1 Cable with plug (344491390) 33553 RON
34 1 1 Metabo label (338115520) 1340 RON
35 1 1 cover (circular) (343030150) 781 RON
38 1 8 Cap screw (141113680) 781 RON
39 1 1 341514270 - Indisponibil
40 1 1 Insulating box cover (343366910) 5926 RON
41 1 1 Knurled nut (341101570) 8275 RON
42 1 1 Stay bolt (341514280) 13756 RON
43 1 1 Electronic unit (343073920) 78180 RON
44 1 1 339210720 - Indisponibil
45 1 1 Cable sleeve (344100860) 2459 RON
46 1 4 Washer Washer cod vechi 86300016365 (141151940) 446 RON
47 1 1 Nut (341101580) 1340 RON
48 1 1 Washer (341012330) 5479 RON
49 1 1 Intermediate plate (341012340) 54357 RON
50 1 1 Locking bolt (341514250) 26730 RON
51 1 1 Cap screw (141111200) 446 RON
52 1 1 Magnet block (341144610) 442359 RON
53 1 1 Locking eccentric (341514260) 19236 RON
54 1 1 Handle (315413350) 21361 RON
55 1 1 Tightening pin (141162080) 781 RON
56 1 1 Clamping collar (315413360) 171574 RON
58 1 1 Cheese-head screw (141114290) 446 RON
59 1 1 141153680 - Indisponibil
60 1 1 Angle piece (315413320) 46975 RON
64 1 2 Serrated lock washer (141150450) 446 RON
65 1 2 Cap screw (141114170) 781 RON
66 1 1 Rating plate (338024520) 190 RON
67 1 1 344600800 - Indisponibil
1001 1 1 338503430 - Indisponibil
